Housing Assembly HVAC: Service and Repair

Air Conditioning Unit

Removal
1. Remove the center console ashtray, glove box and finisher.
2. Remove the fascia center veneer panel and ventilator.
3. Remove the driver and passengers side dash liners.
4. Remove the screws securing the center console.
5. Displace the console rearward and upward.

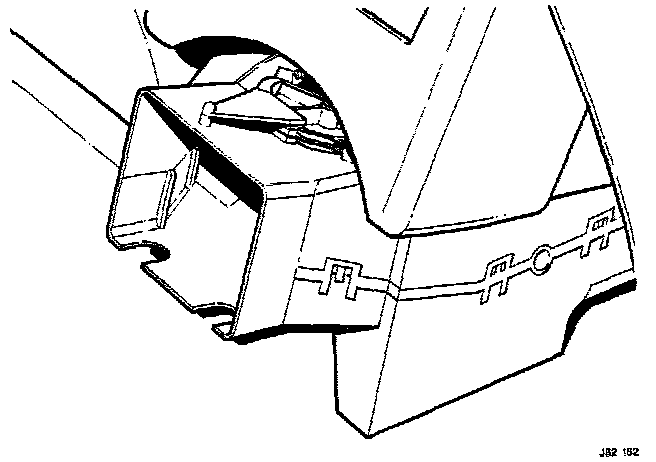

6. Displace and remove the air box from the air tubes.

NOTE: Installation is the reverse of removal.
