Wiring Symbols

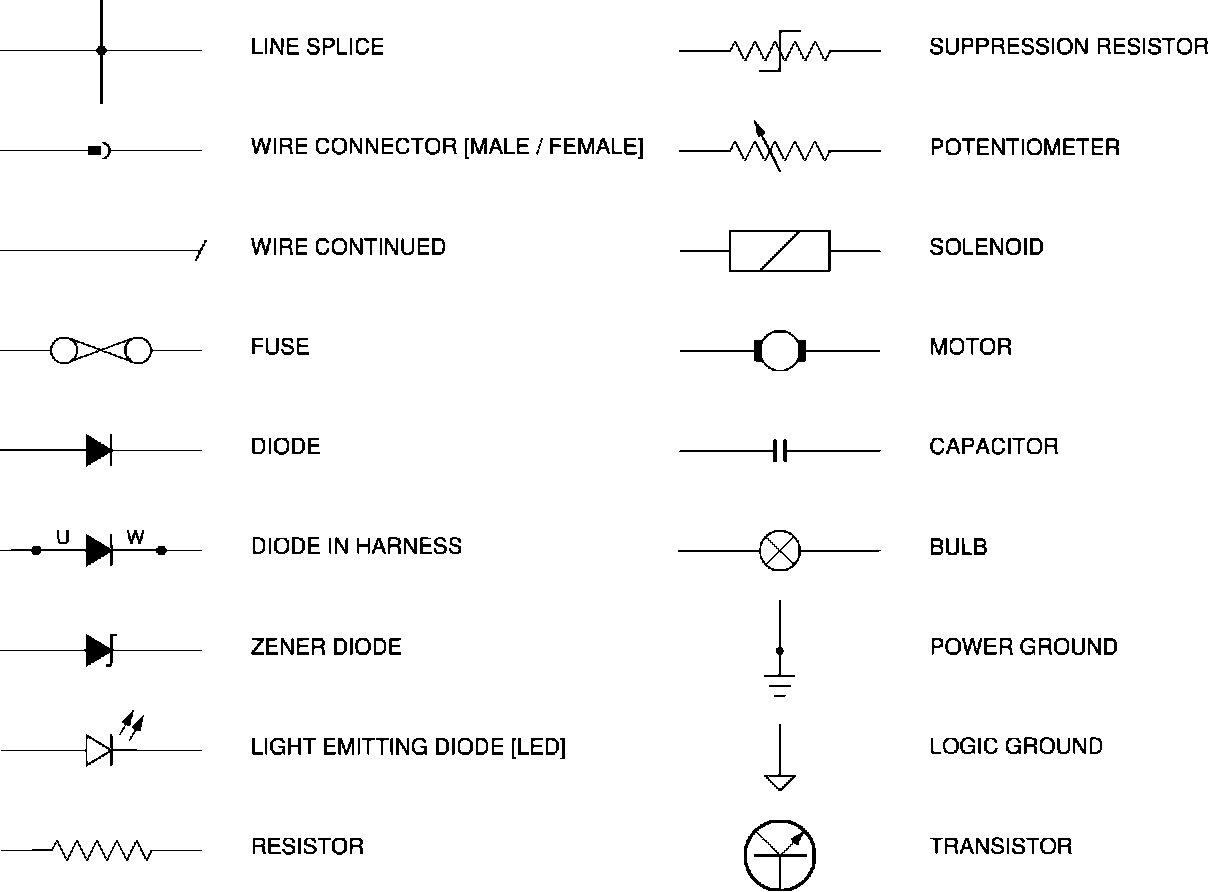

Symbol Identification:
Symbol IDRelay Configurations:

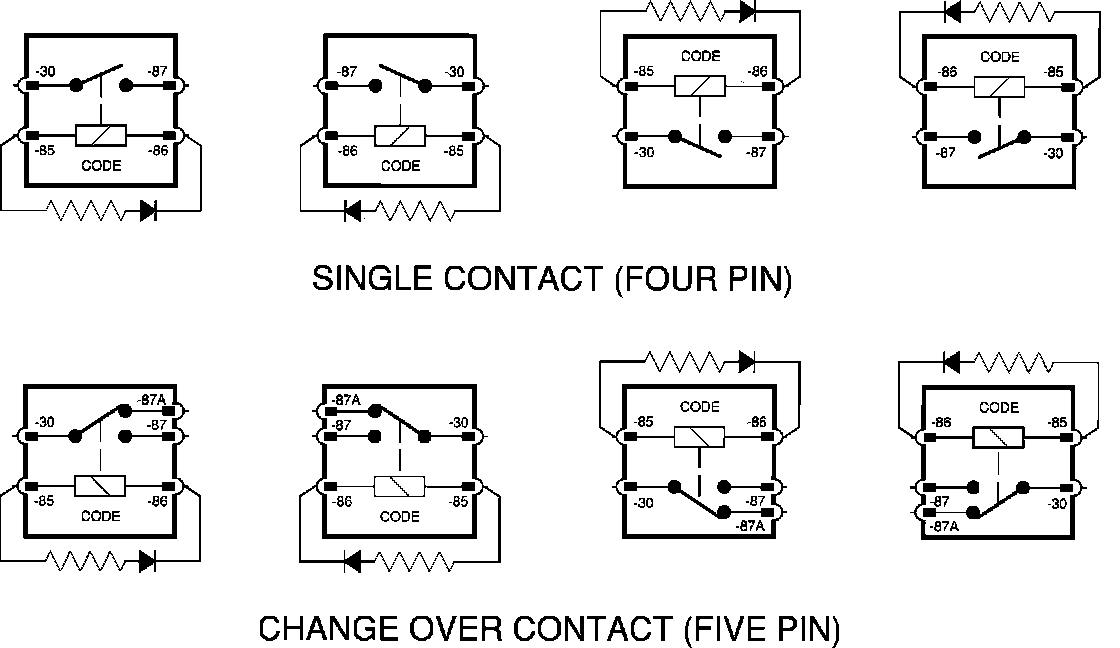

Relay Type IDThe illustration shows the two types of relays used in the vehicles and their various arrangements on the diagrams. The pin identifications remain the same regardless of the arrangement. The connector code should appear in the area indicated.
