Computers and Control Systems: Locations

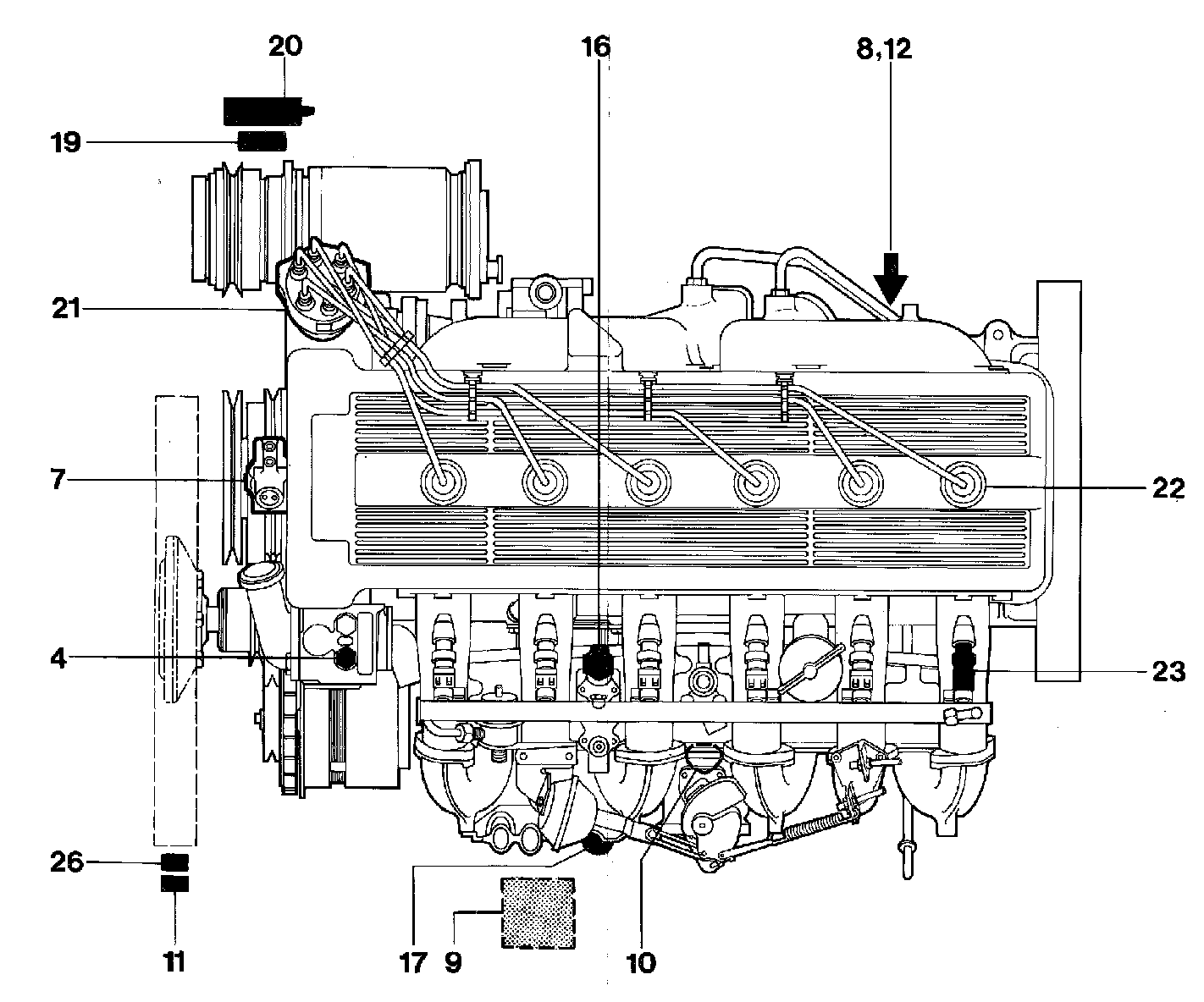

Engine Management 3.6:
LEGEND 4 Coolant temperature sensor.
7 Crank shaft sensor.
8 Lambda sensor.
9 Air-flow meter.
10 Throttle potentiometer.
11 Air pump relay.
12 Lambda sensor heater.
16 Idle speed actuator.
17 Supplementary air value.
19 Ignition amplifier.
20 HT ignition coil.
21 Ignition distributor.
22 Spark plugs.
23 Fuel injectors.
26 Breather pipe heater relay.
