Ignition Rotor: Service and Repair

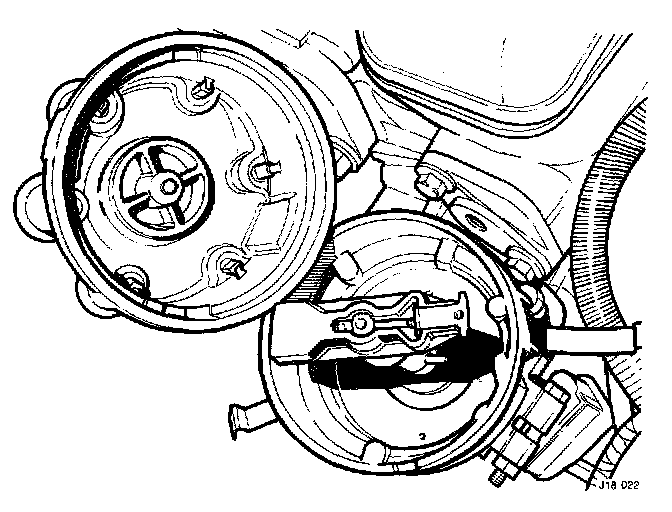

ROTOR ARM RENEW Open the bonnet.
Release the
distributor cap retaining clips and displace the cap.
Remove the rotor arm from the
distributor and discard the arm.
Fit the new rotor arm to the
distributor, fit the cap to the distributor and engage the retaining clips.
Close the bonnet.
