Ignition Power Stage: Service and Repair

IGNITION AMPLIFIER

RENEW

Open the bonnet and disconnect the battery earth lead.

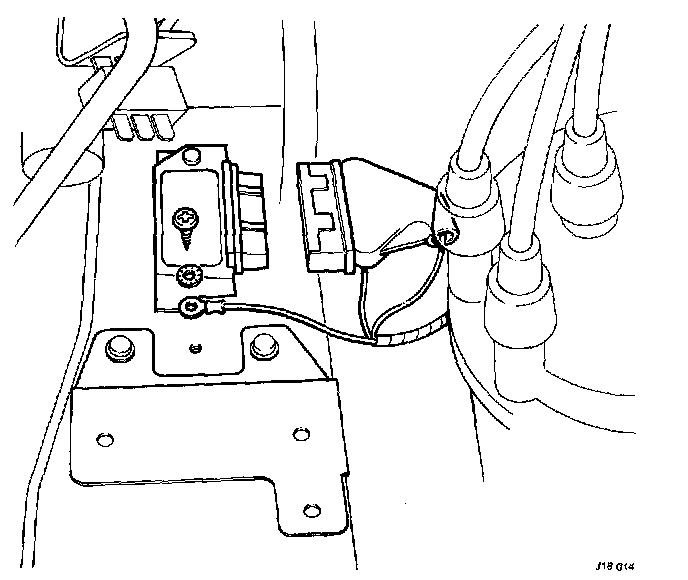

Release and remove the screws (Fig 1) securing the amplifier to its mounting plate.

Disconnect the amplifier connector (black) and remove the amplifier.

Connect the amplifier connector (black) and position the amplifier on the mounting plate.

Secure the amplifier to the mounting plate and connect the battery earth lead.

Close the bonnet.
