Renew

SPARK PLUGS





RENEW

Open the bonnet.

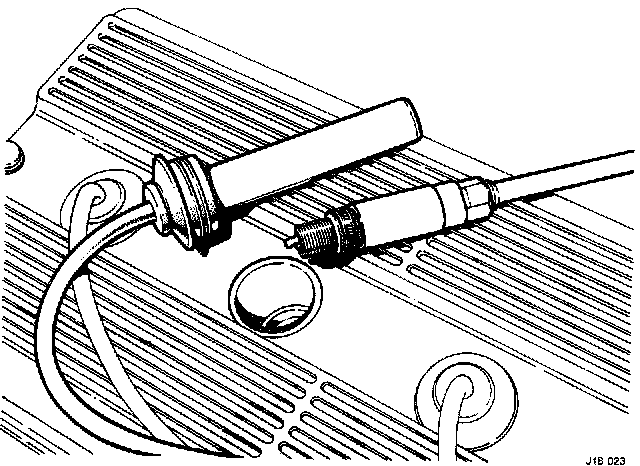

Disconnect the plug leads from the spark plugs.
Ensure the engine is clean around the plugs then release 8nd remove the plugs using a suitable plug spenner.
With the plugs removed ensure the plug apertures are clean.
Fit the new plugs to the engine and tighten to the correct torque.
Connect the plug leads to the spark plugs.
Close the bonnet.

DATA

SERVICE TOOLS
Torque wrench.

TORQUE FIGURES
Spark plugs 16.25 - 28.45 Nm

SPANNER SIZES
5/8 AF.
