Fuses

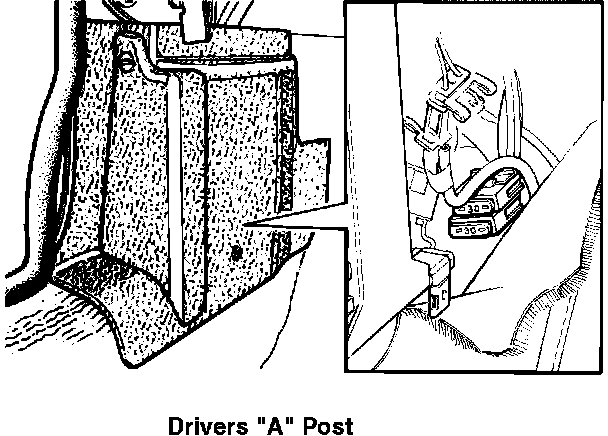

ABS In-Line Fuse Location:





Two in-line fuses and one panel fuse protect the anti-lock circuit. The in-line fuses are located behind the driver's "A" post fuse panel.
