Solenoid Valve Block - Component Replacement: Overview

90jaguar01

POWER HYDRAULIC SOLENOID SECTION: 66
VALVES No: 9


Model: 3.6, Sov., VDP, MAJ Date: DECEMBER, 1989

KEY POINTS: INDIVIDUAL VALVE REPLACEMENT




This TSB # 669, dated 12/01/90, has been updated by TSB # 669R, dated 03/01/90.

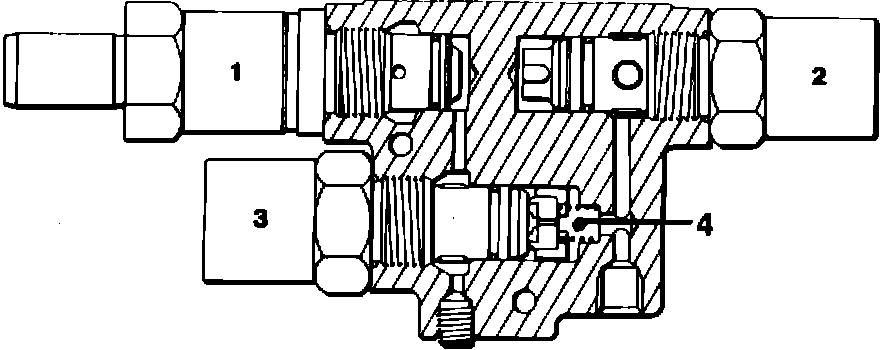

If solenoid valve block failure occurs, it is not necessary to replace the complete unit. The following valve block components can be replaced separately, (Fig. 1):

1. Charge (Load) Solenoid Valve
2. Down Solenoid Valve (includes Trapped Line Pressure Valve)
3. Up Solenoid Valve
4. Up Leveling Non-Return Valve
To determine which valve or valves should be replaced, use the following diagnosis procedure:
