Tool - Power Diagnotic Kit Components Available
90jaguar03
TOOL, EQUIPMENT, AND
POWER HYDRAULIC KIT
LITERATURE
No:
24
Model:
ALL Date: APRIL, 1990
KEY POINTS:
INDIVIDUAL COMPONENT AVAILABILITY

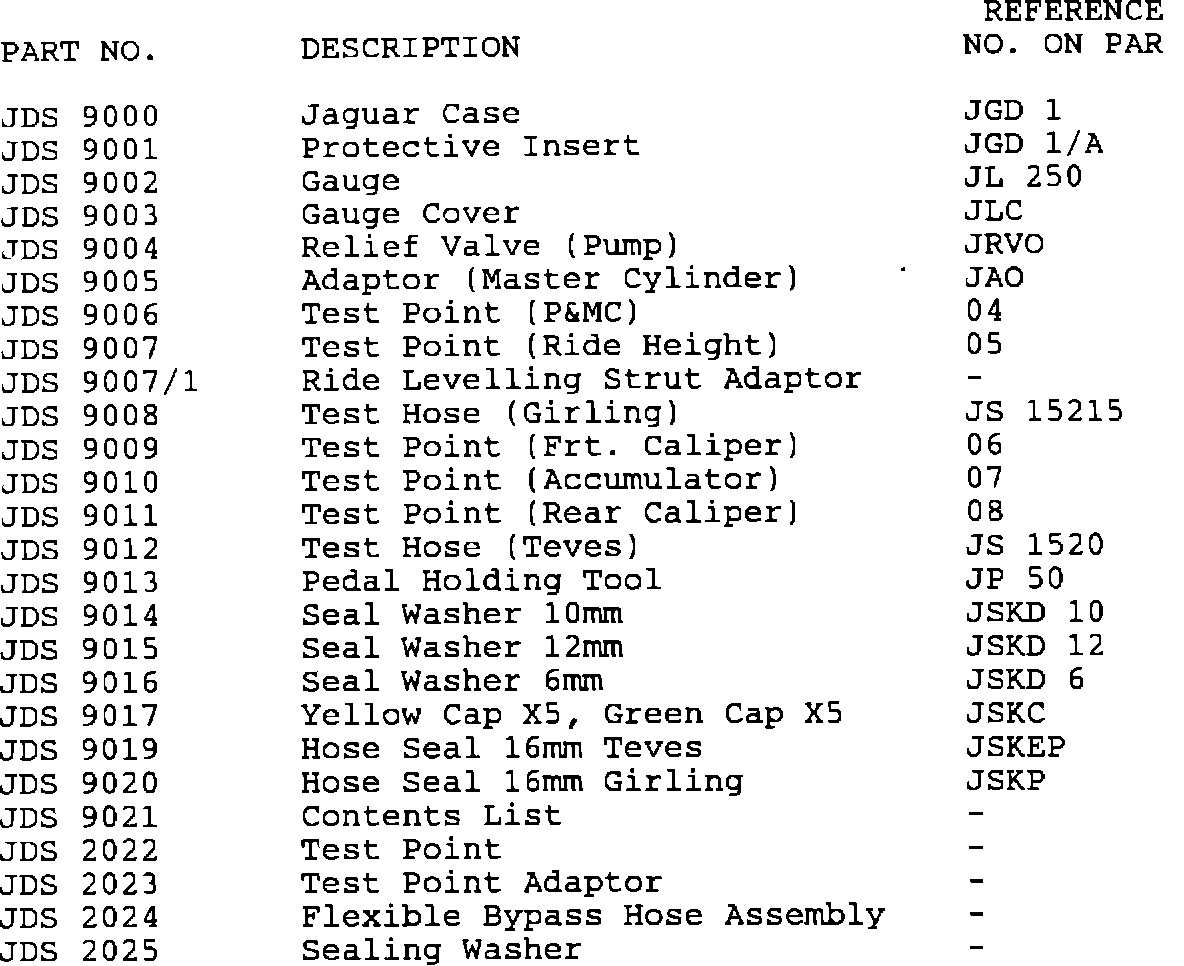

The Power Hydraulic Diagnostic Kit (JAG 1509) is no longer available in kit form. However, the following components which comprised JAG 1509 are available individually through Zone Parts Departments:
