Cabin Temperature Sensor / Switch: Service and Repair

In Car Temperature Sensor

- Disconnect battery earth lead.
- Remove left side dash liner.
- Displace the ECM cover assembly from the footwell duct and disconnect the sensor multiplug.

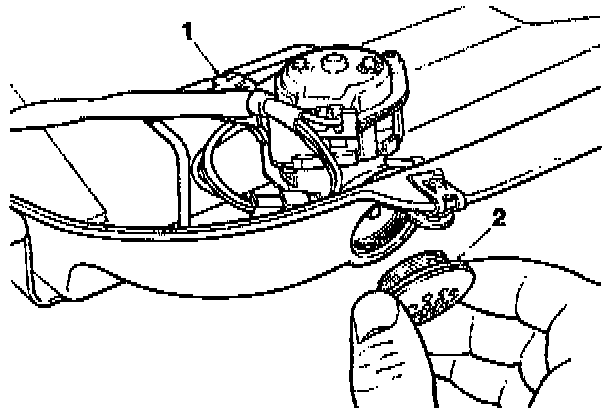

- With the ECM cover removed, release the sensor to wire frame fixing screw (1) and unscrew inlet cover (2).
- Remove the in car temperature sensor.

NOTE: Installation is the reverse of this procedure.
