Functional Check

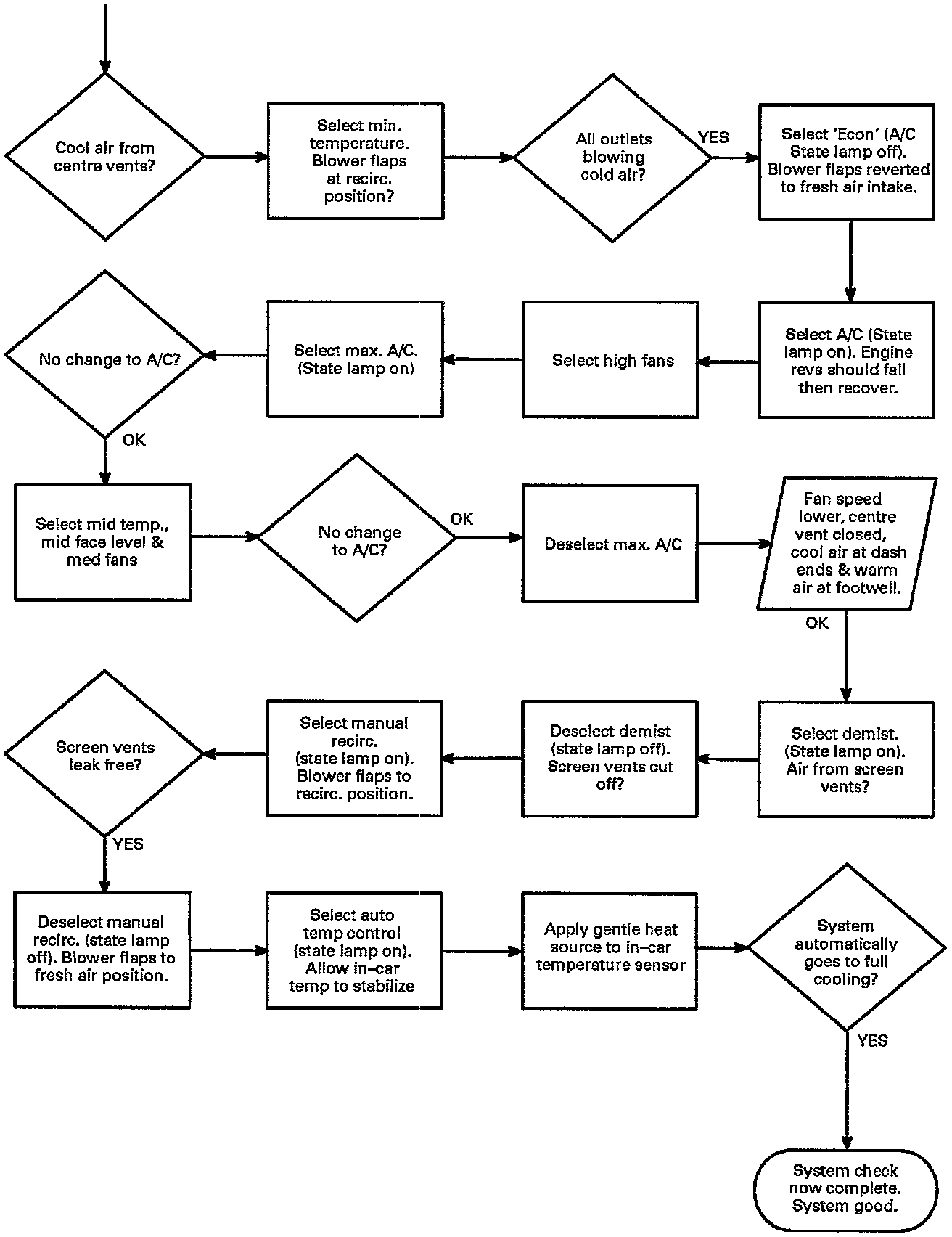

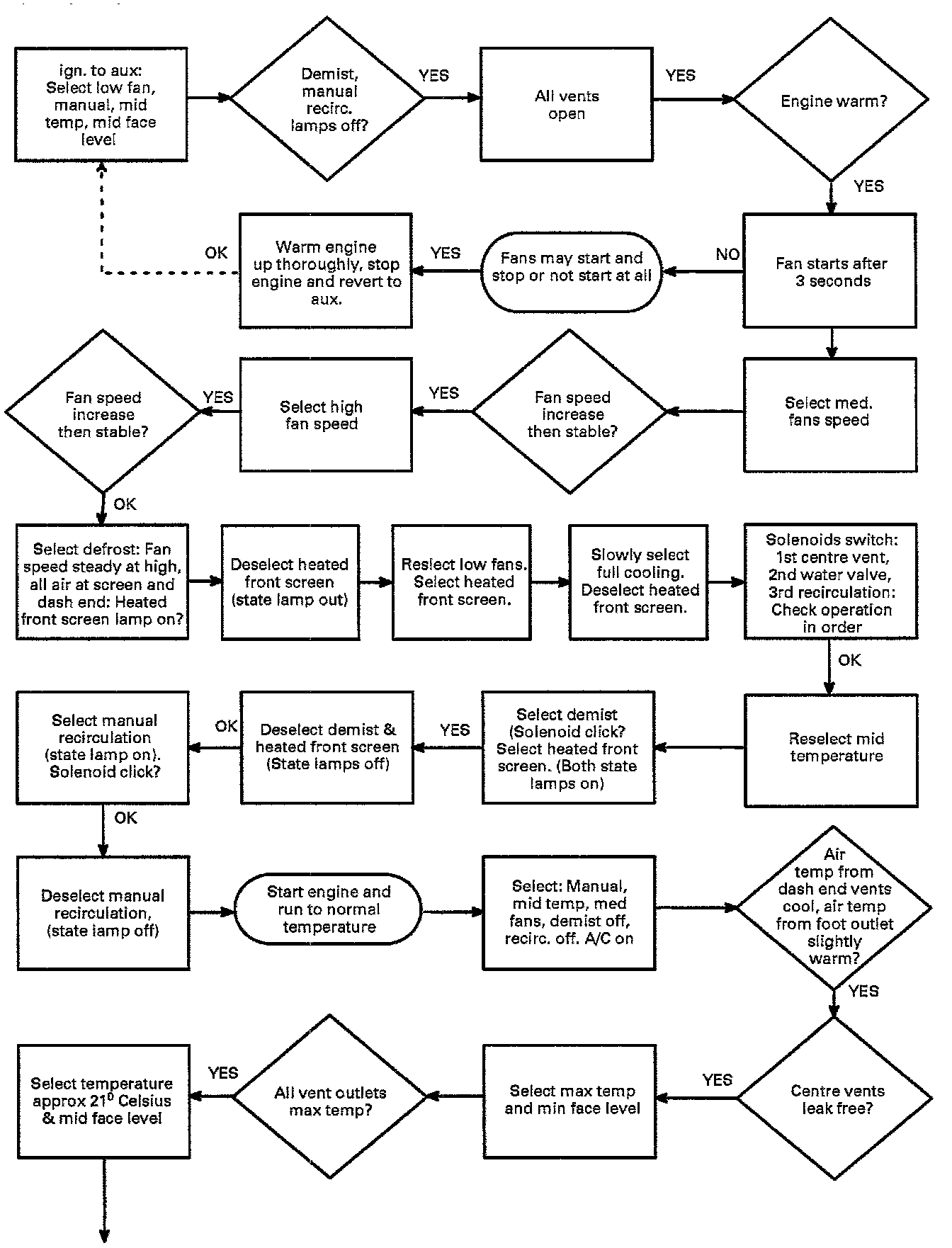

Functional Check Flow Chart








The functional check flow chart is provided as a simple system validation and is structured to augment the Jaguar Diagnostic System (JDS). Some flap operations may take 30 seconds to execute. This is normal and is due to vacuum system damping.
