Security System Transmitter - Intermittent Operation
86-133Security System - Transmitter - Diagnostic
Procedure
MODEL: XJ6 1993-94 MY
XJ12 1994
XJS Range 1994 MY
MY DATE: 7/94
ISSUE:
Intermittent or no operation of Security System Transmitter. Transmitter operating range is consistently below 30 feet.
ACTION:

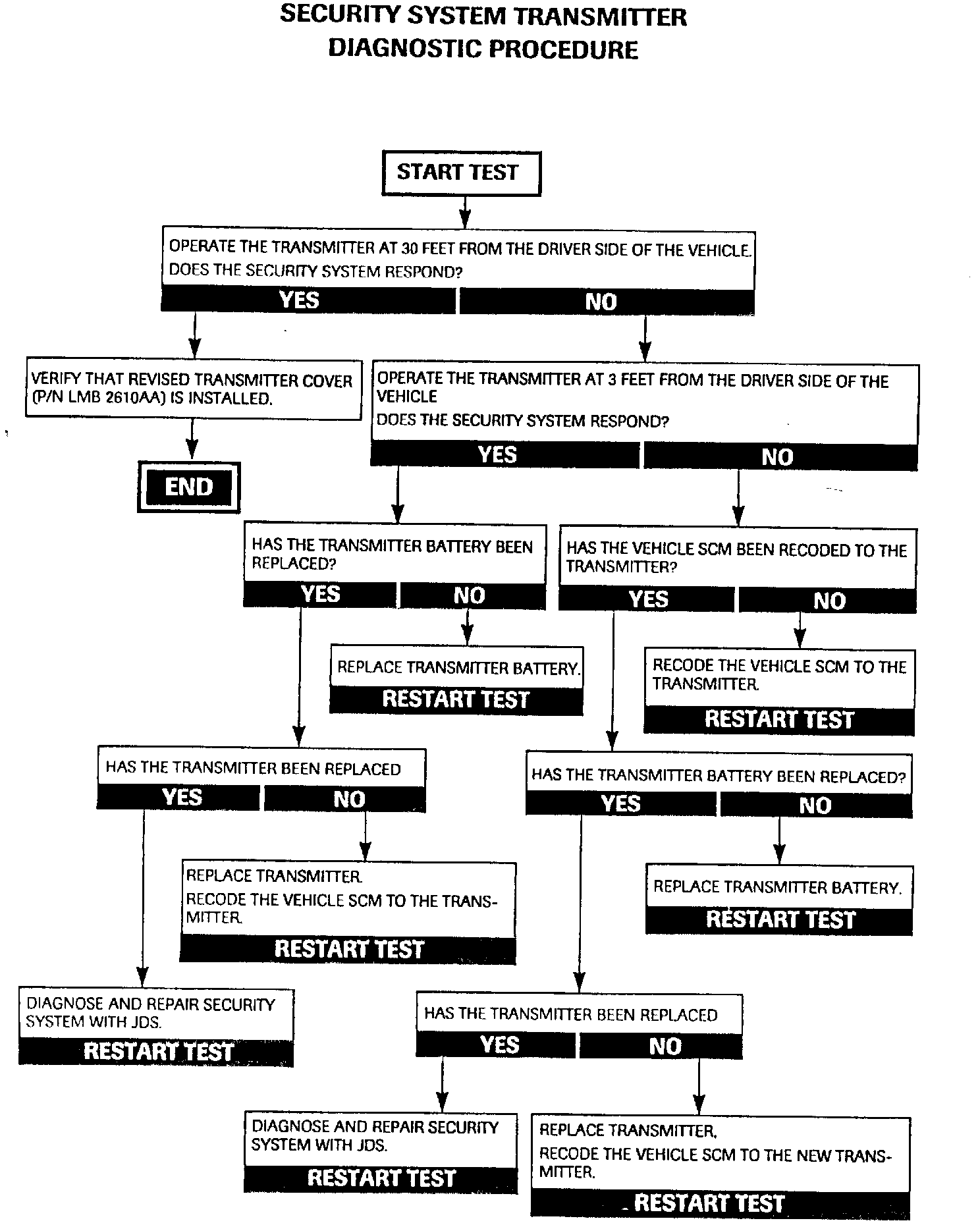

If customers complain that the security system transmitter operates the system intermittently, not at all, or its range is consistently below 30 feel perform the Security System Diagnostic Procedure.
NOTE:
Ensure that ALL customer transmitters are available when the security system is being serviced. If the security system control module (SCM) requires recoding, all transmitter codes must be entered into the SCM.
Coding Security System Transmitters
Two transmitters are supplied with each new vehicle; however, the security system control module (SCM) may be coded for use with up to five transmitters. If new or additional transmitters are requested, or an existing transmitter requires recoding, the system must be recoded with all of the transmitters for the vehicle at hand (from two to five transmitters).
PARTS INFORMATION:
DESCRIPTION PART NUMBER
Transmitter DBC 10084
Transmitter cover LMB 2610AA
Battery JAG 569

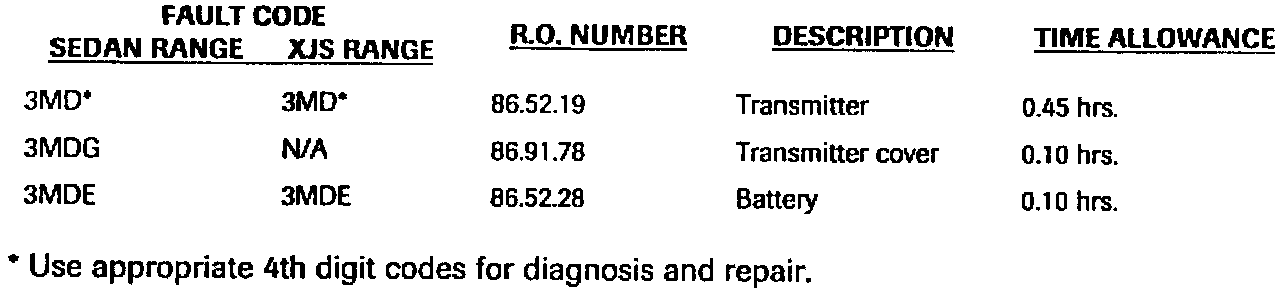

WARRANTY INFORMATION:
