Fuel Filter: Service and Repair

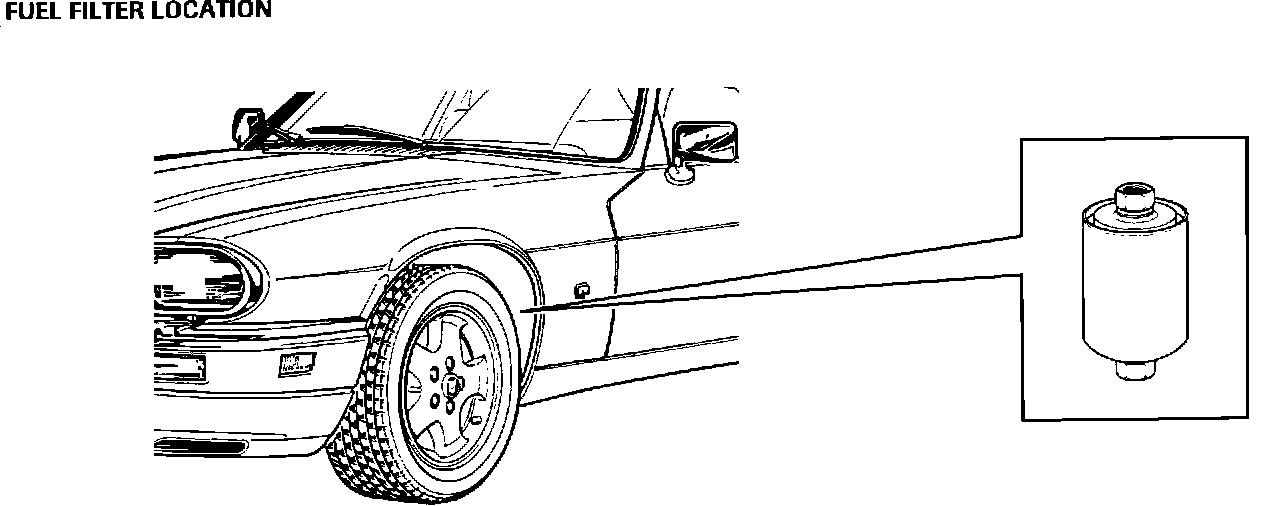

Fuel Filter Location:

1. Depressurize fuel system. Fuel Pressure Release
2. Remove left front tire.
3. Remove plastic access shield.
4. Disconnect fuel lines and remove filter.
