Electrical Diagrams

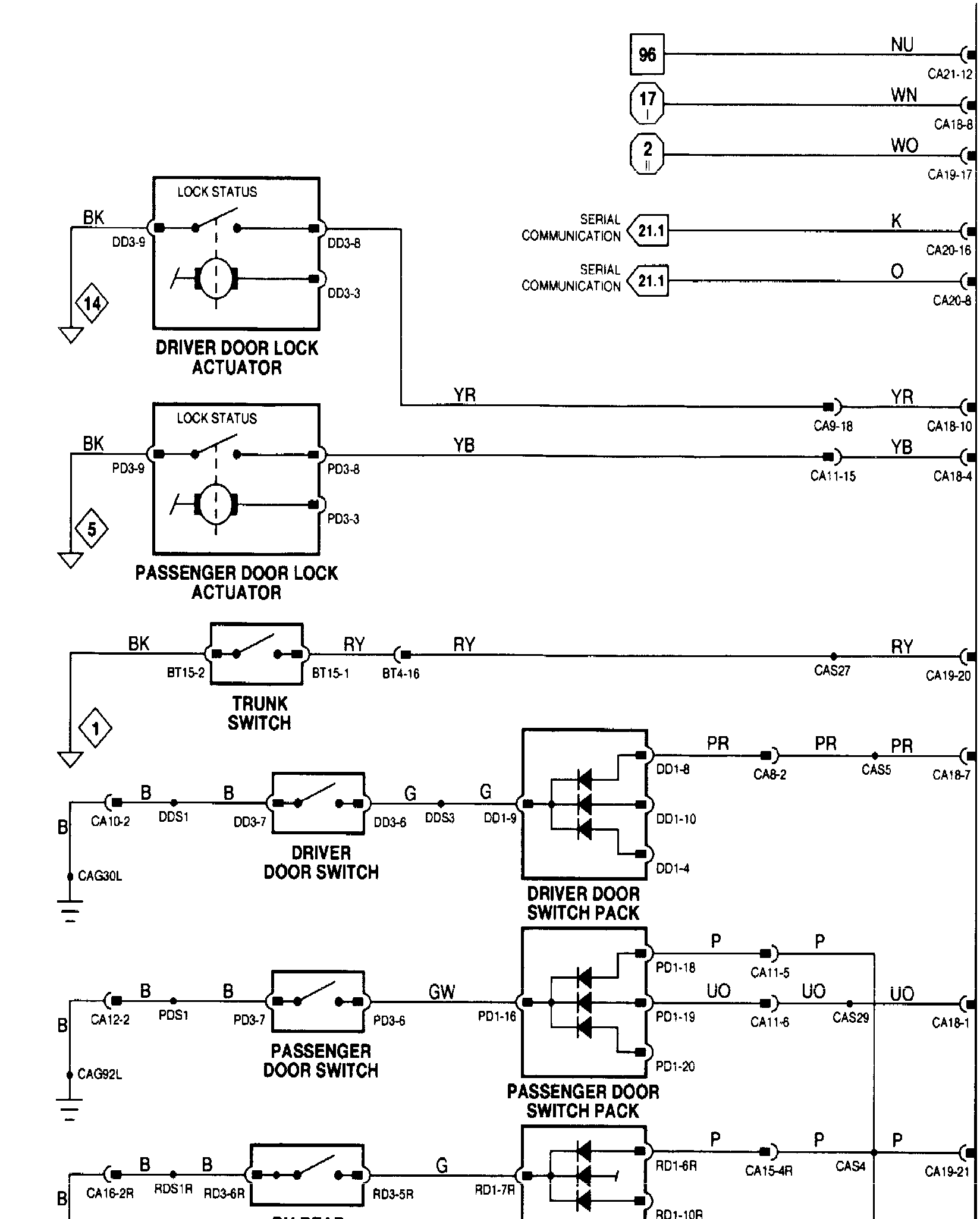

q�#��#$�$$ \$Security System-NAS:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

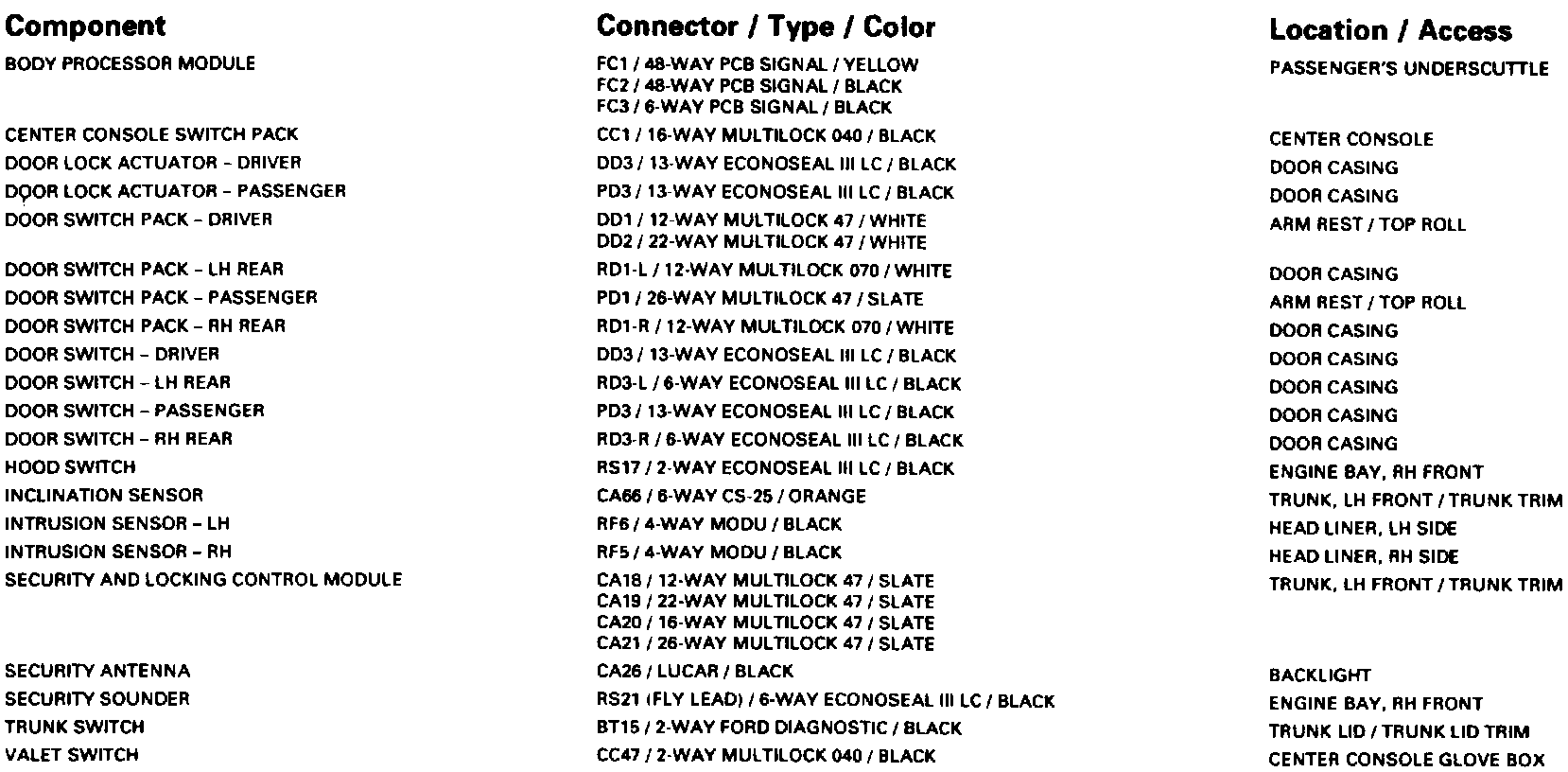

Security System-NAS: Components:

Component Information

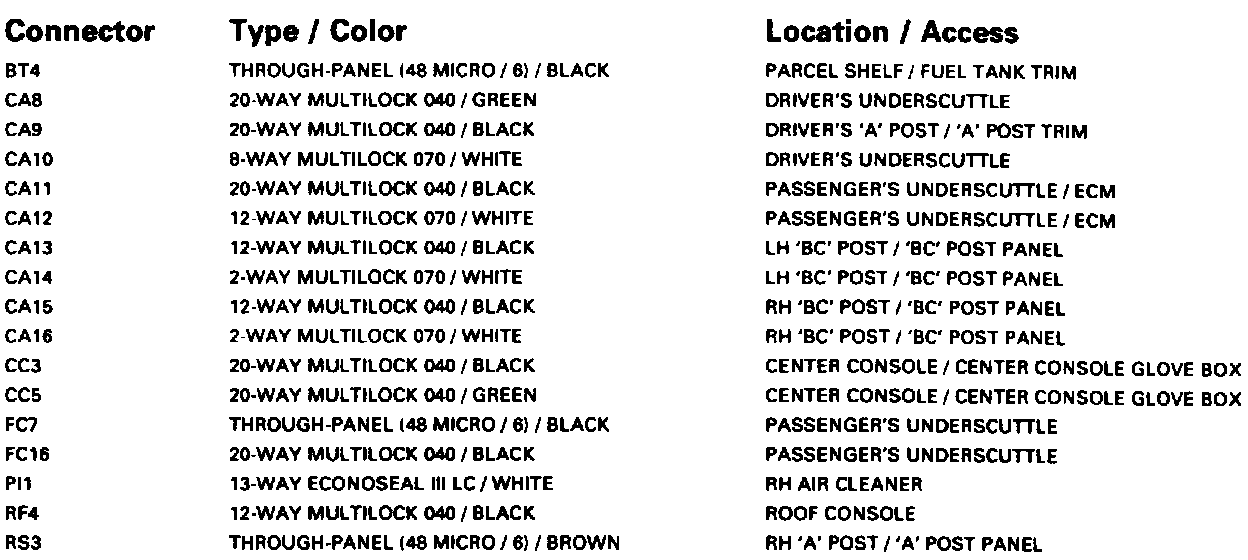

Security System-NAS: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

Security System-NAS: Grounds:

Ground Information

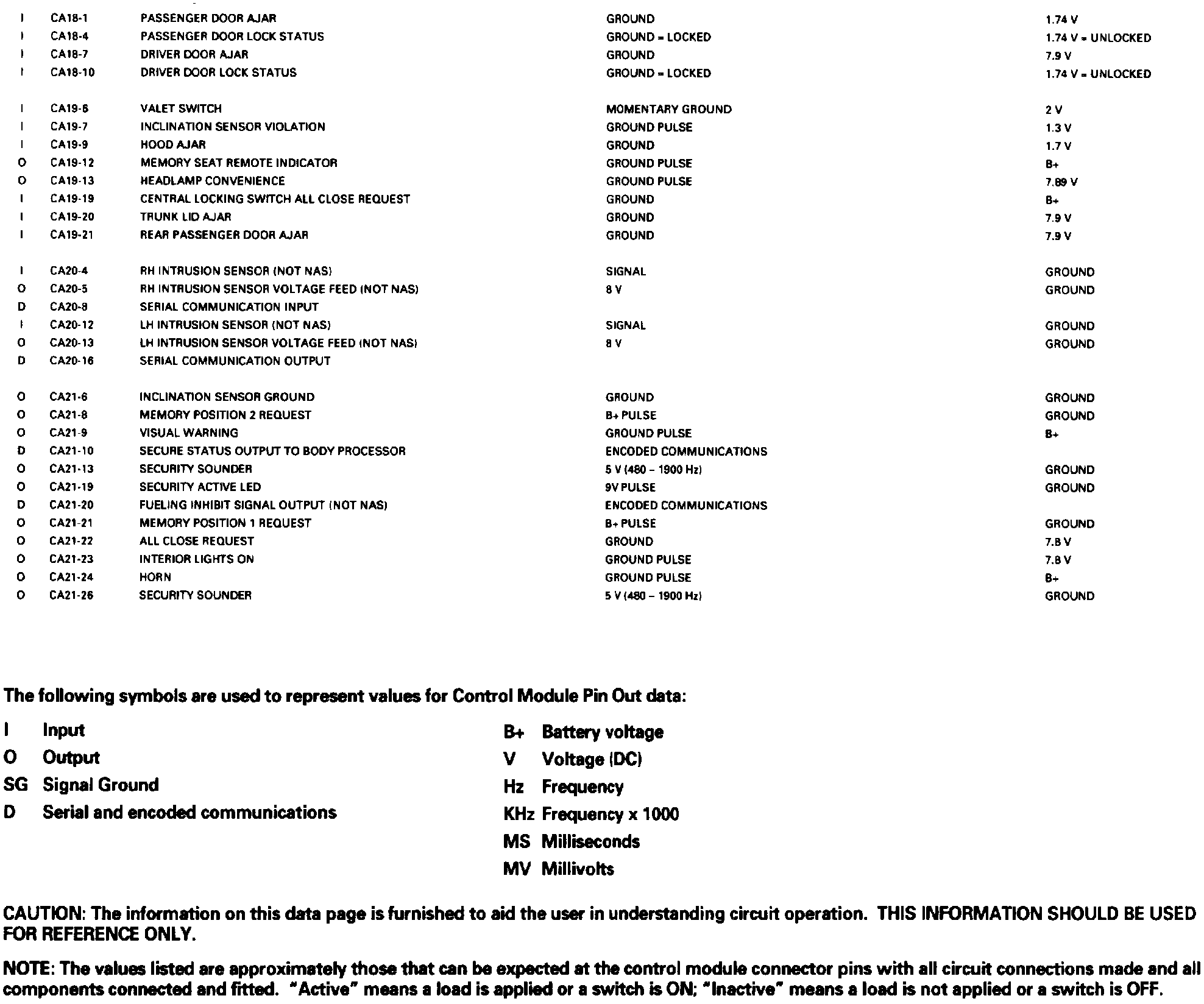

�-%Security System-NAS: Control Module Pin Out Information:

Control Module Pin Out Informations
