Center Console/Clock Module, General Description

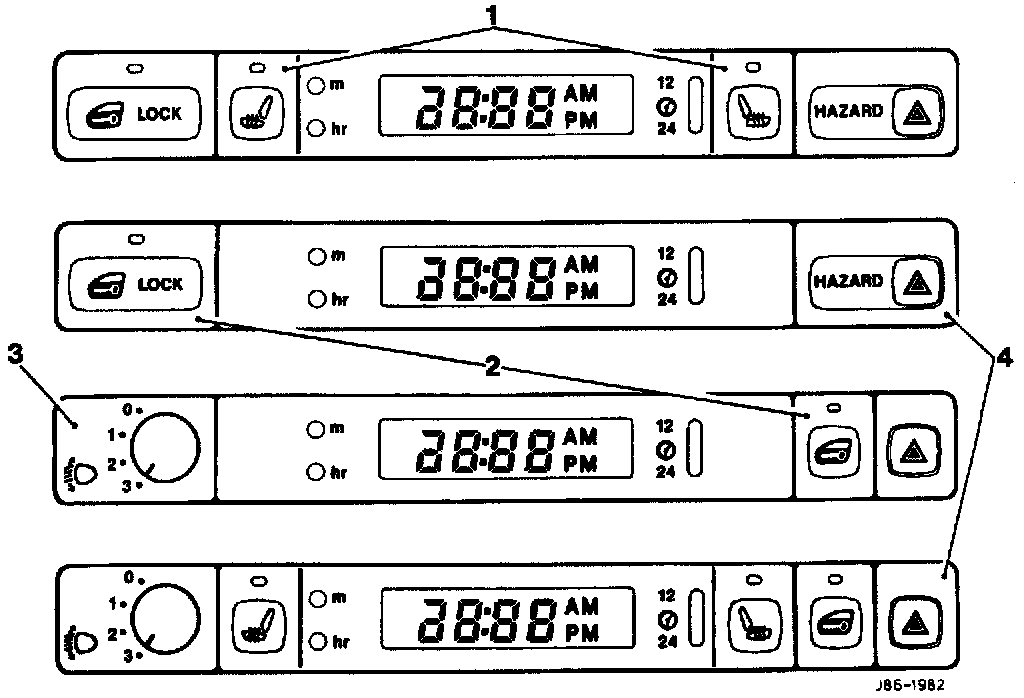

Center Console Clock Module Fig. 1:
1. Seat Heater Switches (Where installed)
2. Panic Lock Switches (All Models)
3. Head Lamp Leveling Switch
4. Hazard Switch (All Models)
The image shows all the center console/clock module variants as installed to vehicles destined for various world markets. The headlamp leveling switch (Europe only) and the hazard warning switch are located within the center console/clock module which also contains six illumination bulbs.
The complete module is to be renewed should any components other than the illumination bulbs be faulty.
