Instrumentation; Hazard and Fault Display (VCM)

���$ݿ�$^�$��$H5�$Instrument Hazard/Warning Display:

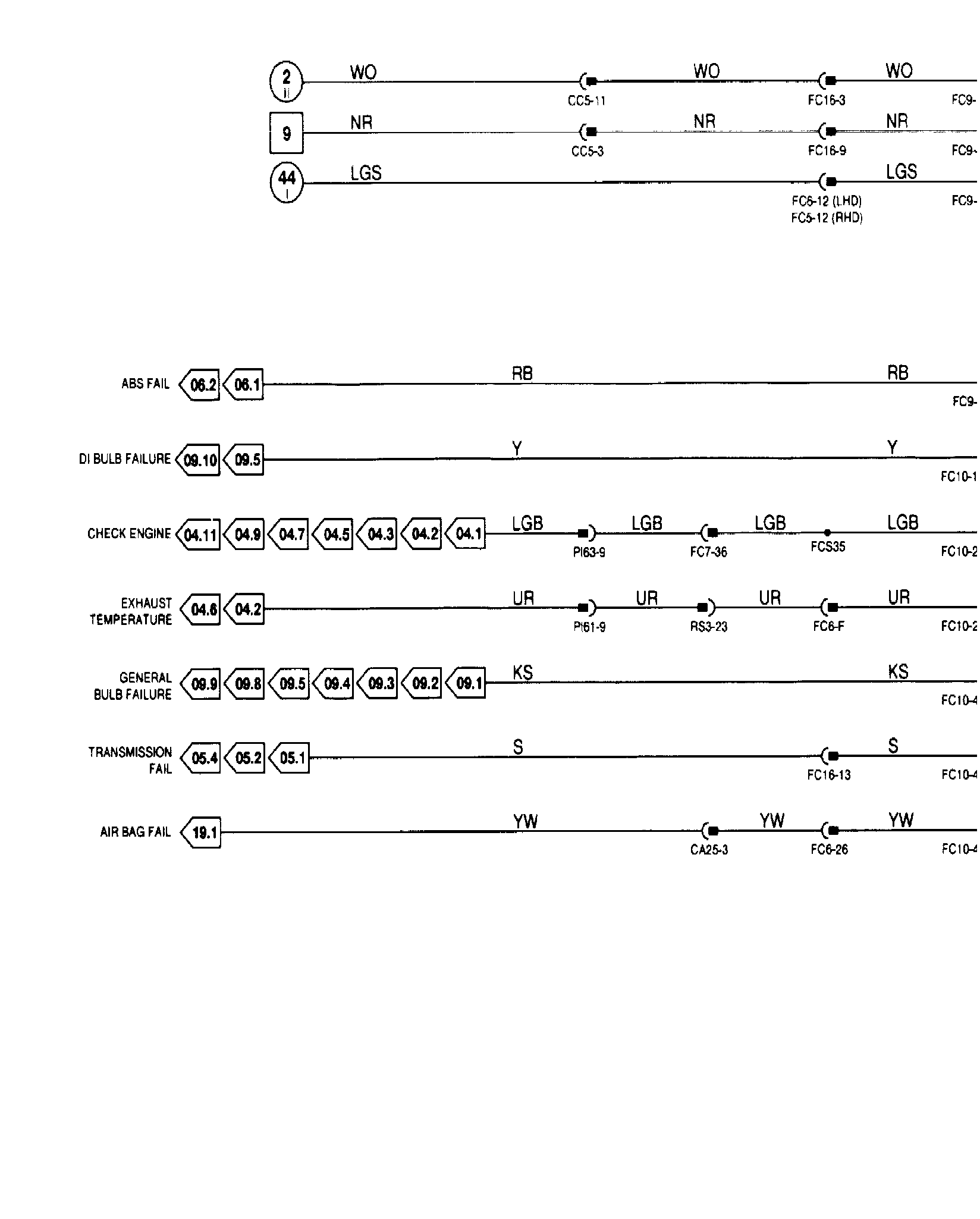

Wiring Diagram

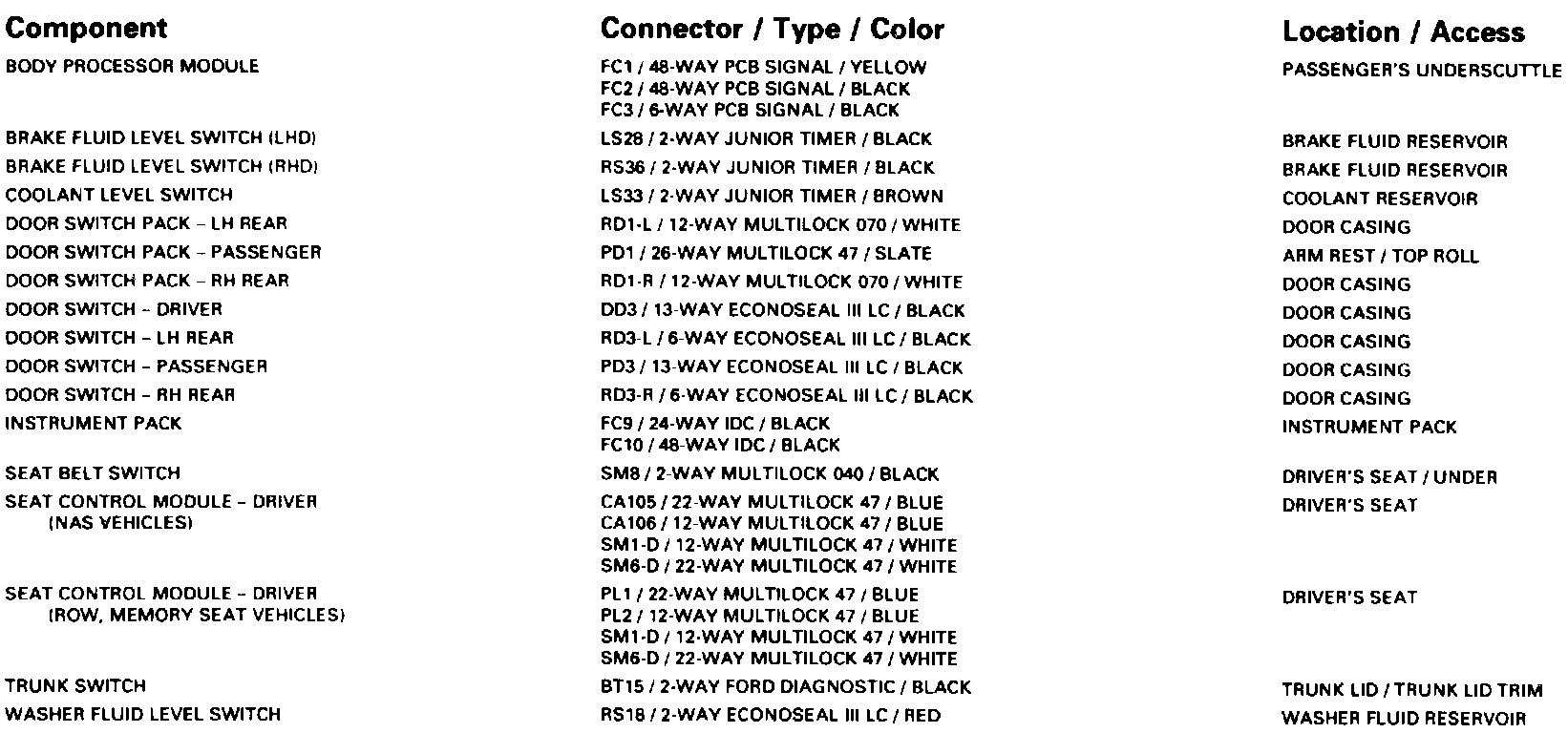

Instrument Hazard/Warning Display: Components:

Components Informations

Instrument Hazard/Warning Display: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

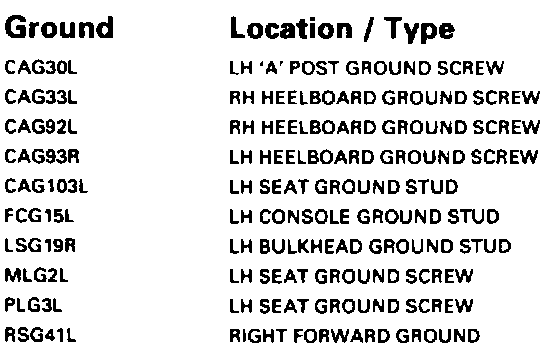

Instrument Hazard/Warning Display: Grounds:

Grounds Informations

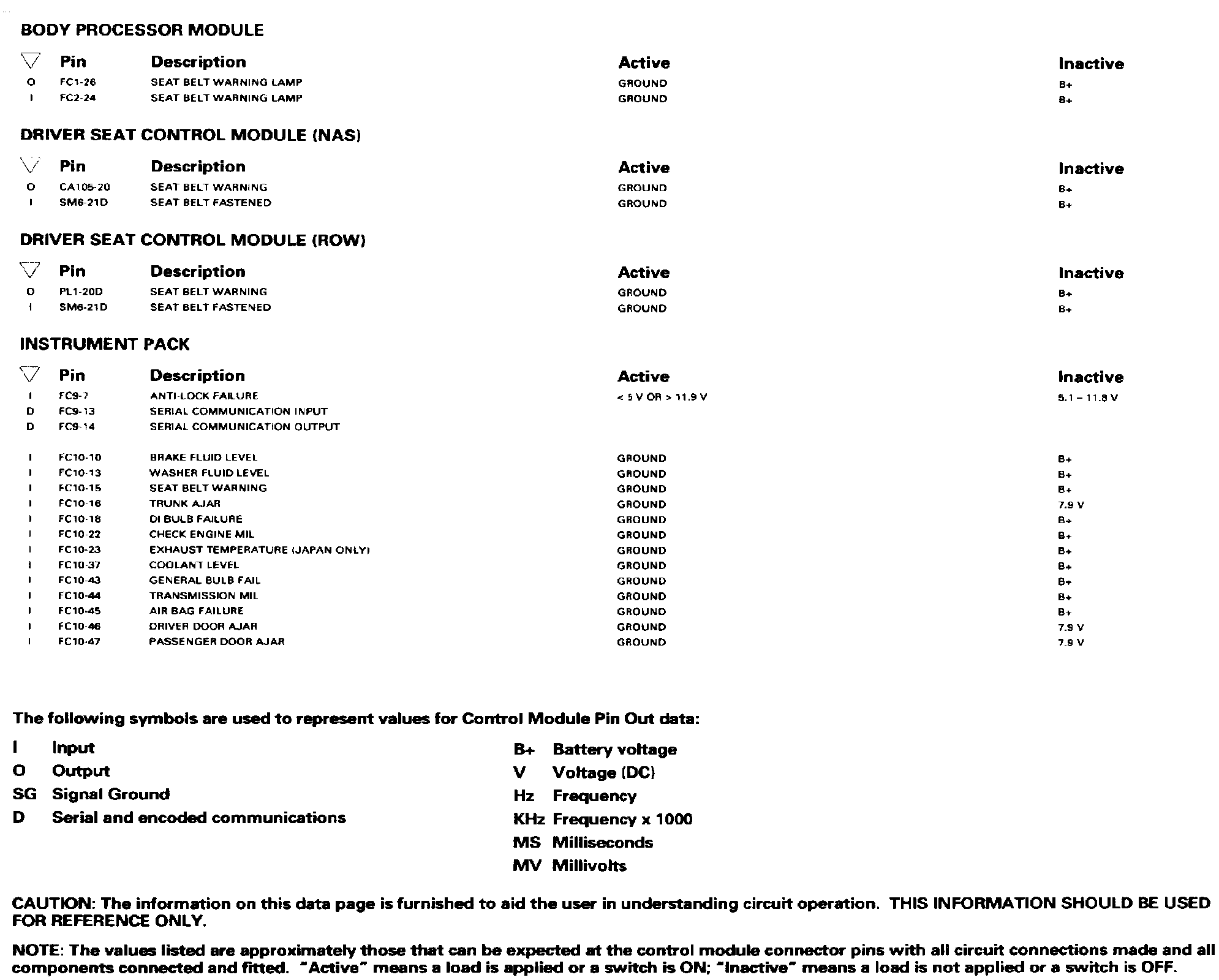

Instrument Hazard/Warning Display: Control Module Pin Out Information:

Control Module Pin Out Informations


For the diagrams that continue from this diagram, refer to "Diagrams : Electrical : Diagrams By Fig Number"

Electrical Diagrams
