Federal Engine Management

�4��l���������Federal Engine Management:

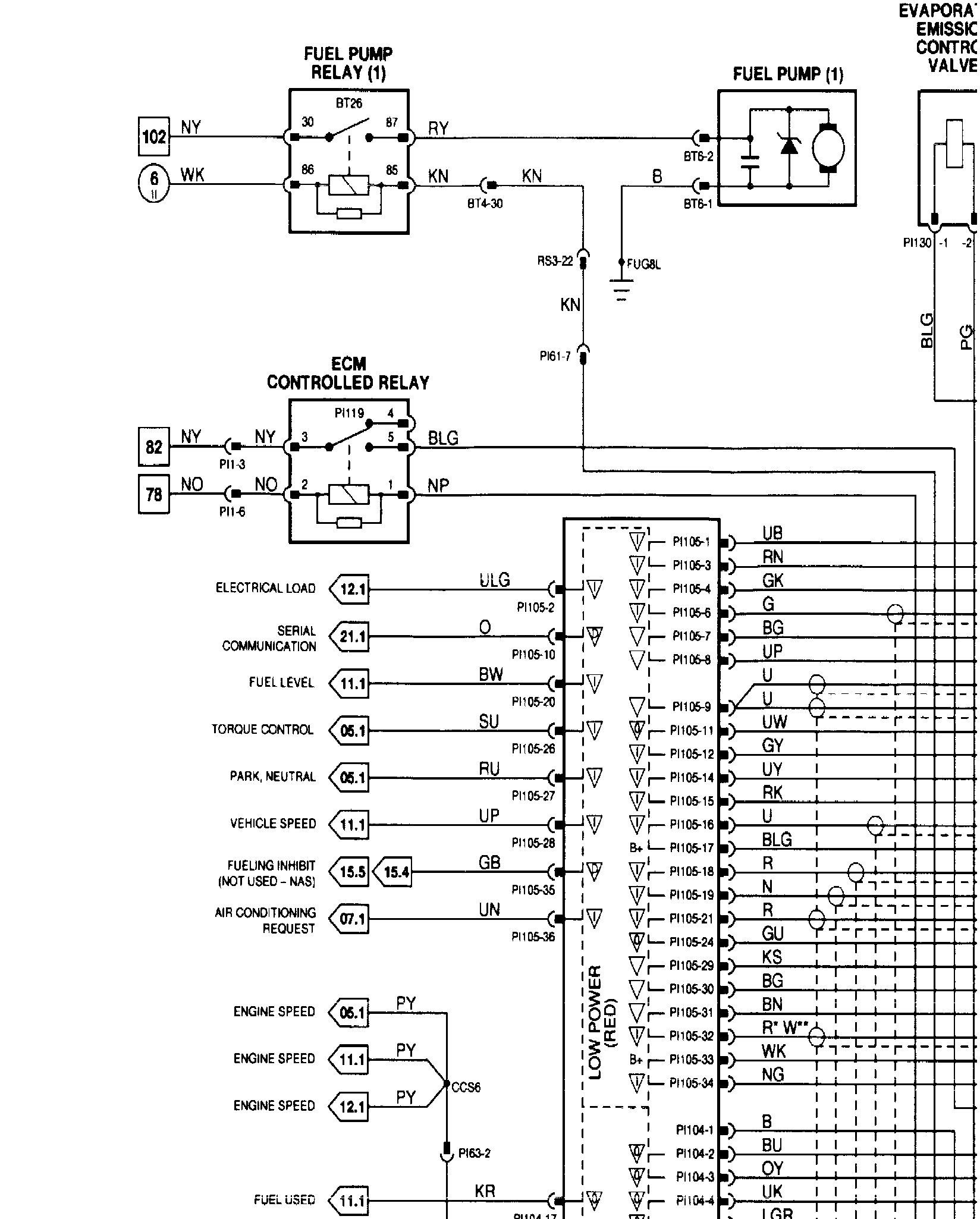

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

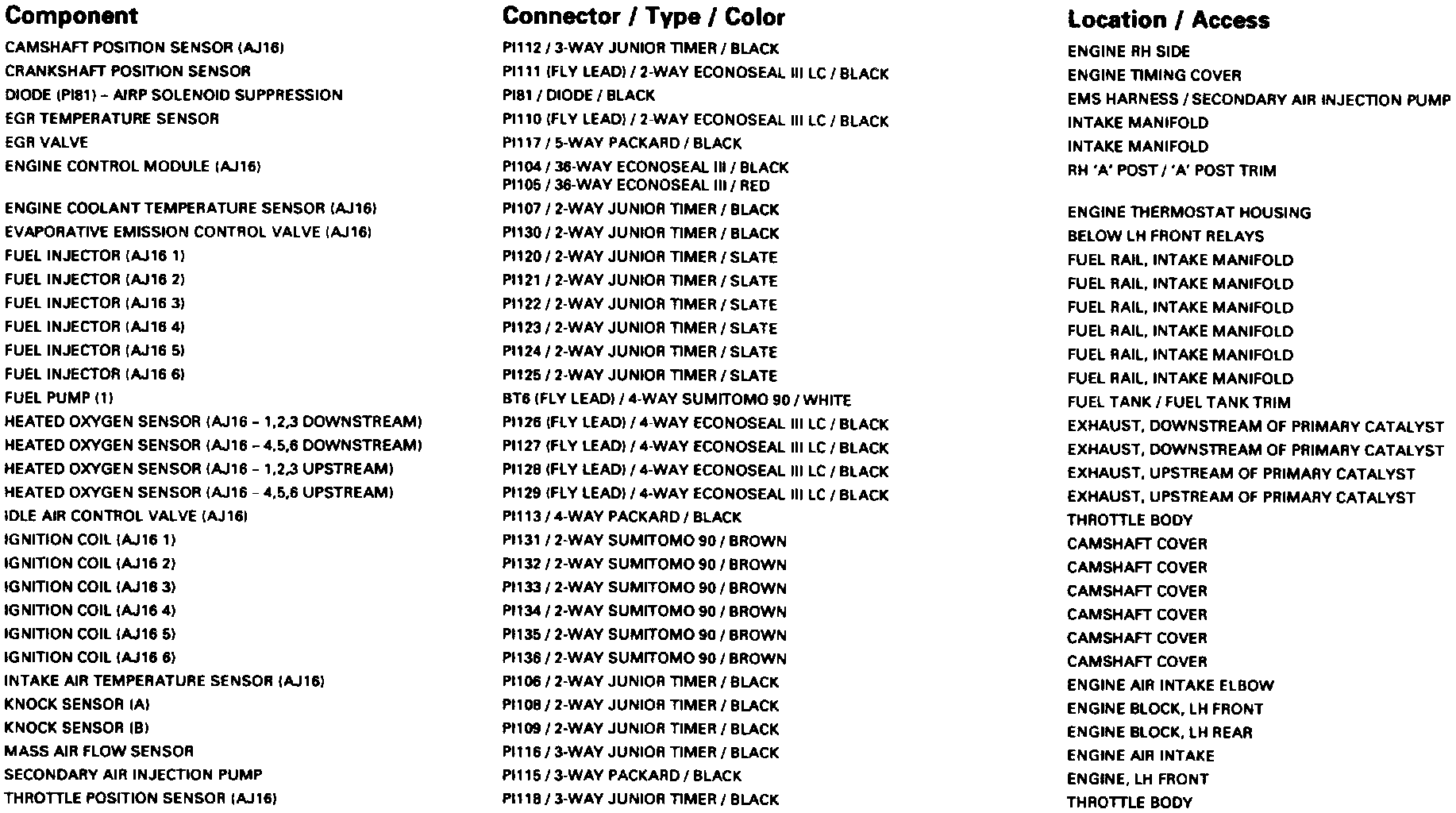

Federal Engine Management: Components:

Component Information

Federal Engine Management: Relays:

Relay Information

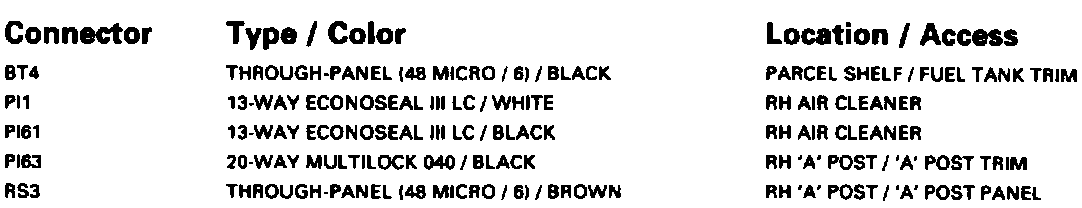

Federal Engine Management: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

Federal Engine Management: Grounds:

Ground Information

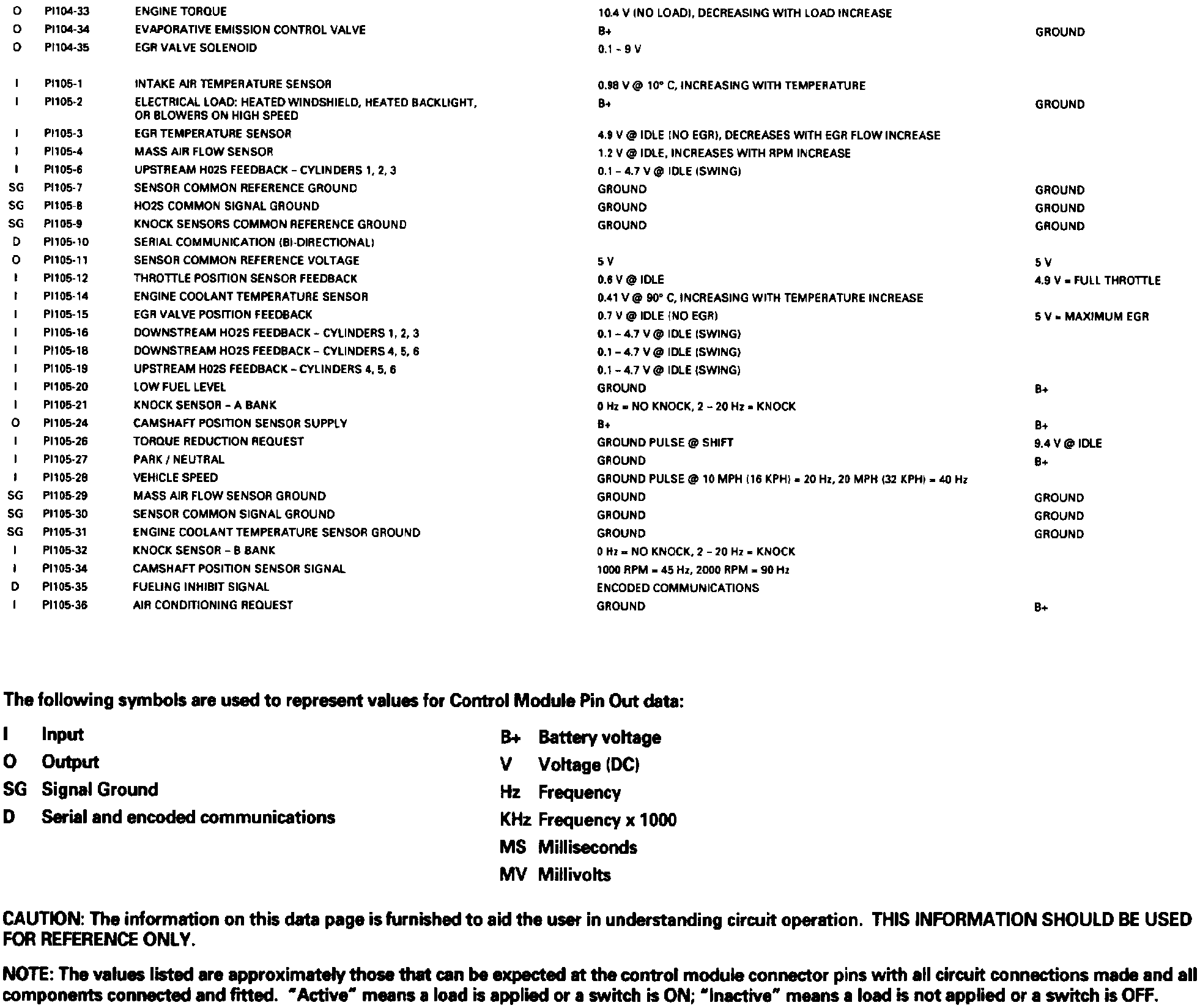

�#�Federal Engine Management: Control Module Pin Out Information:

Control Module Pin Out Informations
