Instrument Panel/Housing Assembly

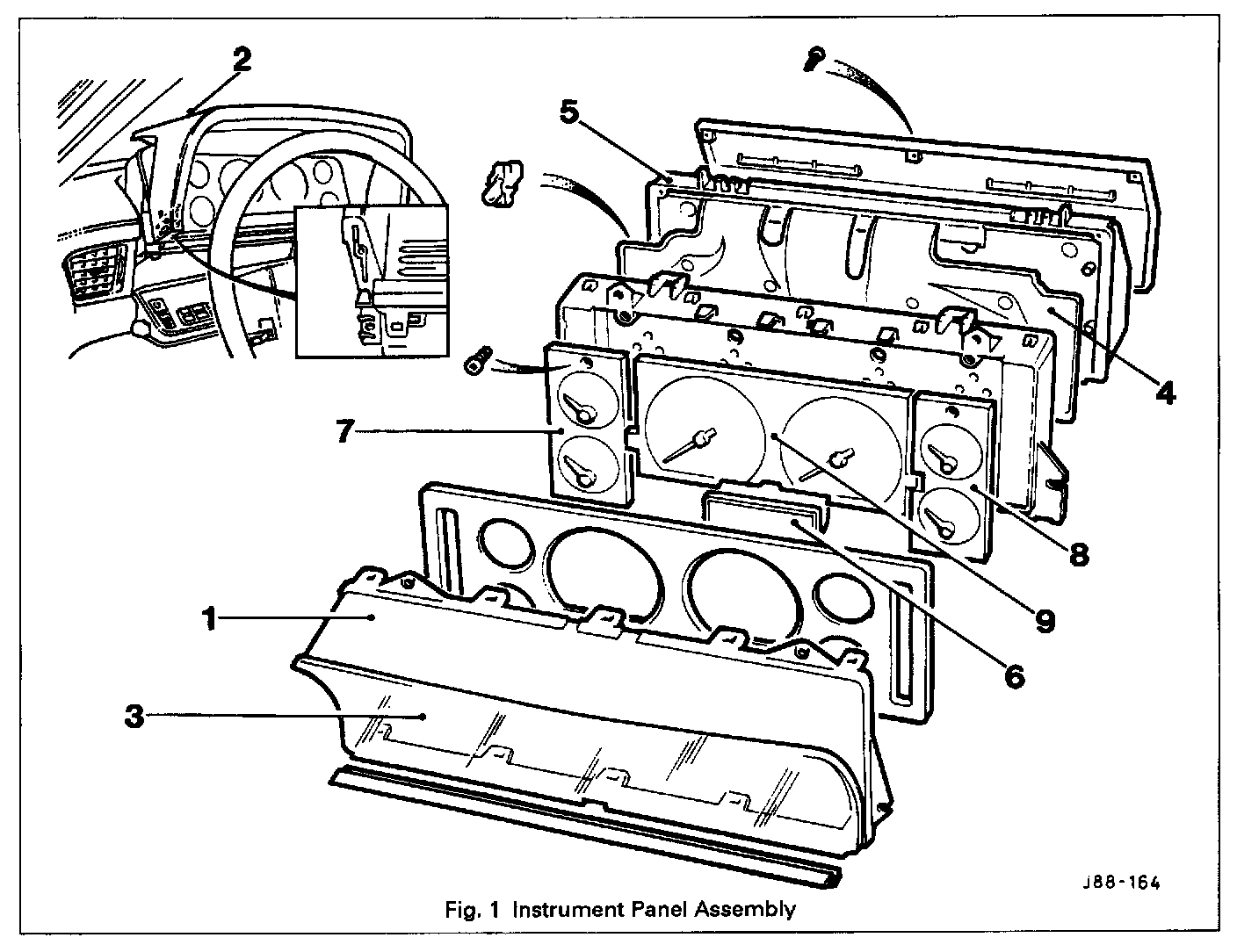

Instrument Panel Assembly, Fig. 1:
The above illustration should be read in conjunction with the following table and the general repair notes.
Four fixing screws secure the instrument panel/housing assembly to the fascia. The assembly and its fixings can be accessed by removing the instrument pack cowl and the underscuttle pad (where fitted)
Table To Fig. 1:
