Electrical Diagrams

F�m��mn&n Gn rnInterior Lighting:

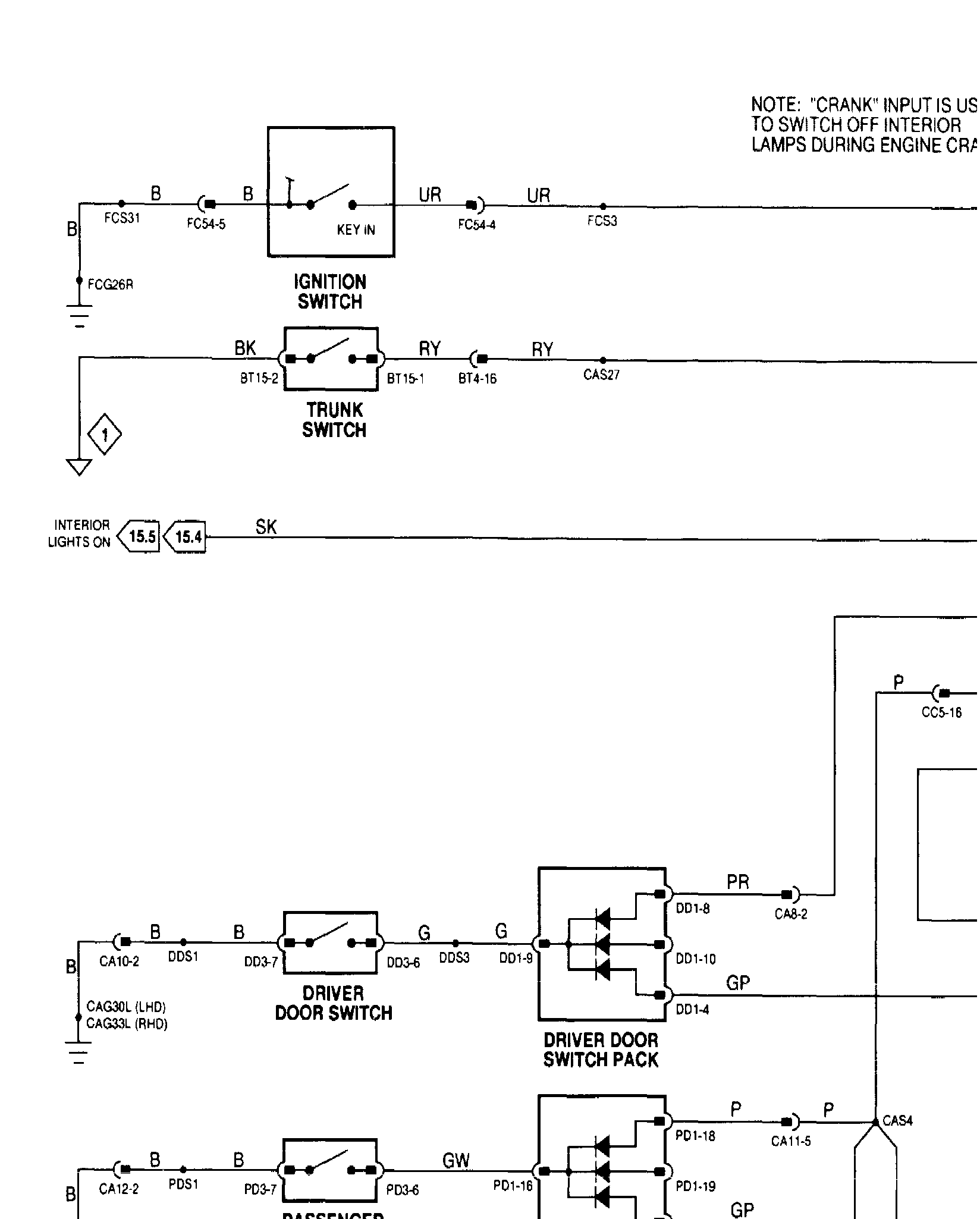

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

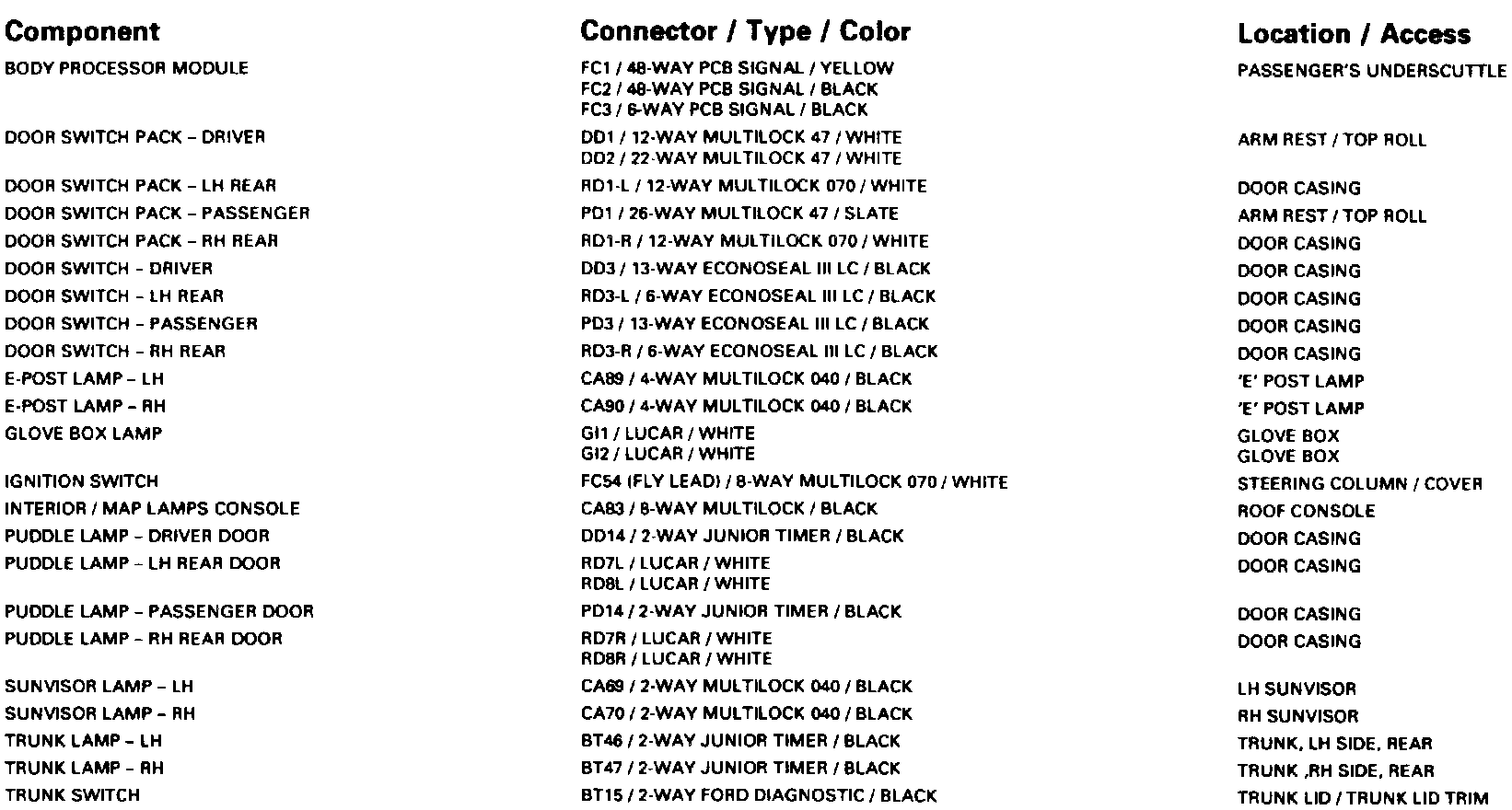

Interior Lighting: Components:

Component Information

Interior Lighting: Relays:

Relay Information

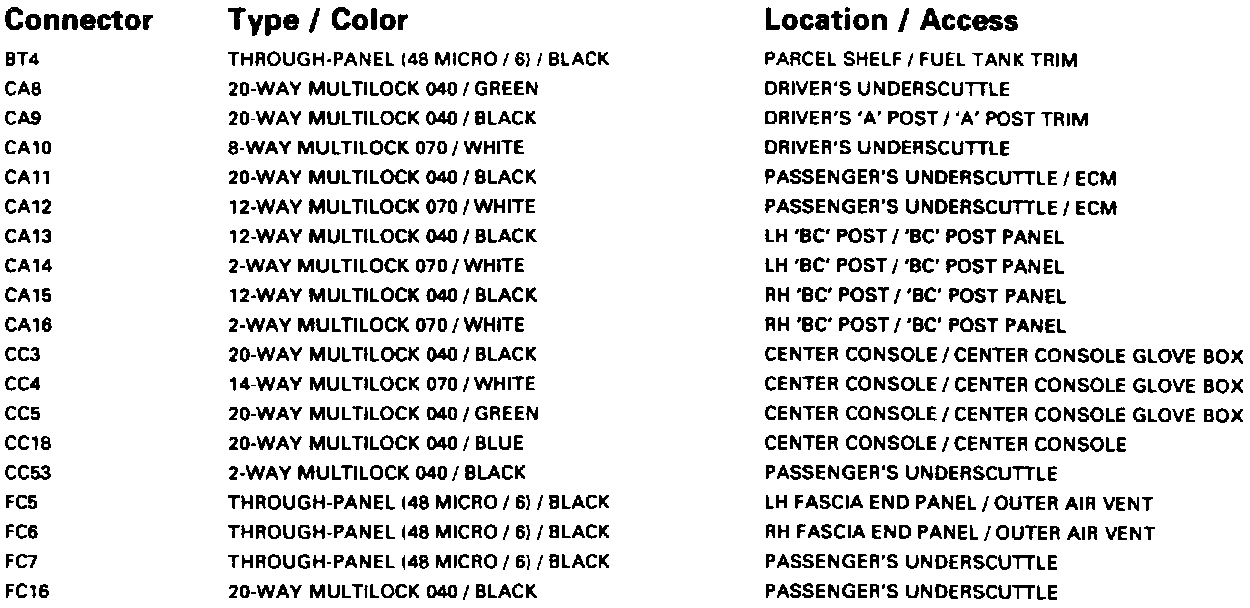

Interior Lighting: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

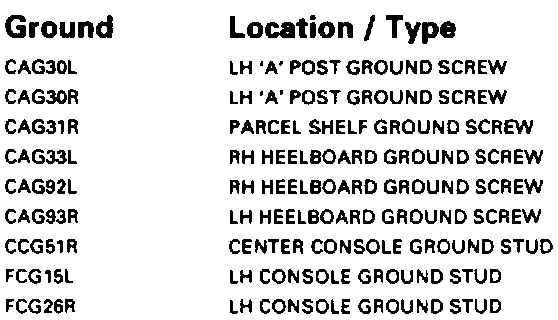

Interior Lighting: Grounds:

Ground Information

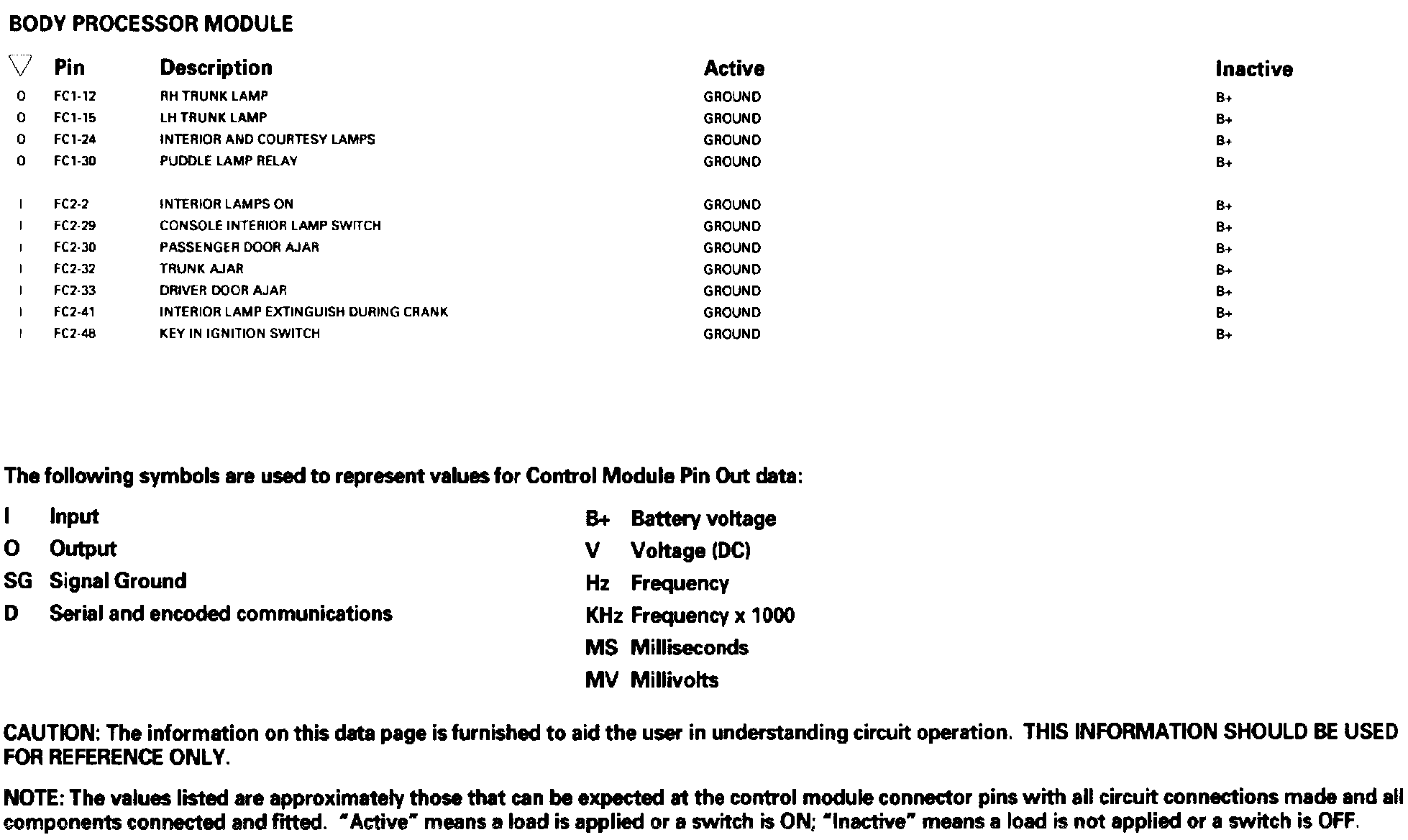

Interior Lighting: Control Module Pin Out Information:

Control Module Pin Out Informations
