Transmission Fluid Filter, Renew

TRANSMISSION FLUID FILTER, RENEW





- Raise the hood and fit a fender cover.

- Raise the vehicle on a ramp.

- Drain the transmission lubrication system.

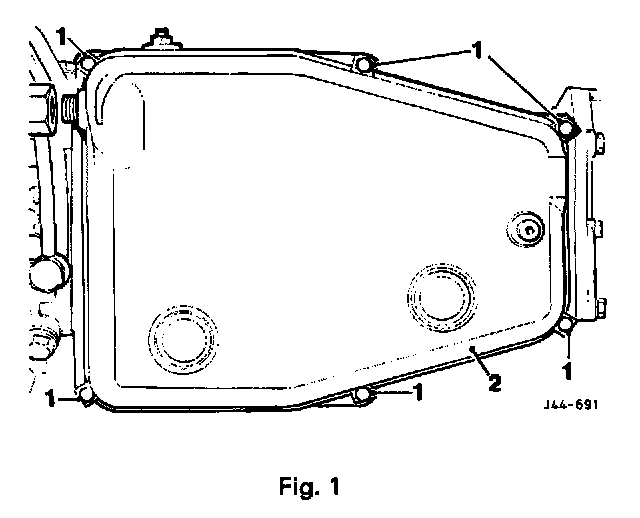

- Remove the fluid pan.

- Release and remove the fluid filter securing screws; displace and remove the fluid filter.

- Remove and discard the filter '0' ring.

- Clean the new filter and mating faces.

- Fit the '0' ring to the new filter; fit and seat the filter assembly to the valve body.

- Fit and torque tighten the filter securing screws.

- Refit the fluid pan.

- Lower the vehicle on the ramp.

- Refill the transmission unit with fluid.

- Remove the fender cover and lower the hood.
