Camshaft Position Sensor: Adjustments

Camshaft Position Sensor (CMPS) Alignment

Fig. 1 Location Of CMPS:

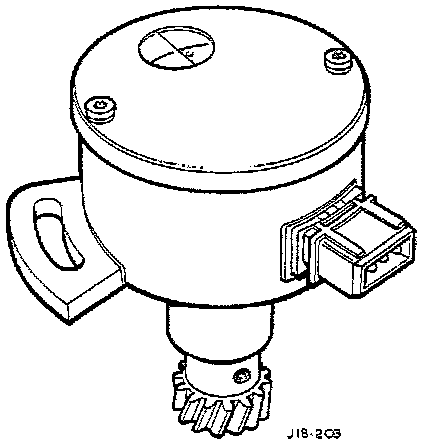

Fig. 2 CMPS:

1. Rotate engine to TDC.

2. Verify that the imprinted cirle in the metal wheel is centered in the CMPS window.

2.1 If you don't see the imprinted circle, rotate the engine one more time.

2.2 If the imprinted cirlce is visable but not centered, loosen the CMPS retaining bolt and rotate it to adjust.
