Battery Cable: Service and Repair

Battery Cables

Removal
1. Remove the battery tray. Service and Repair

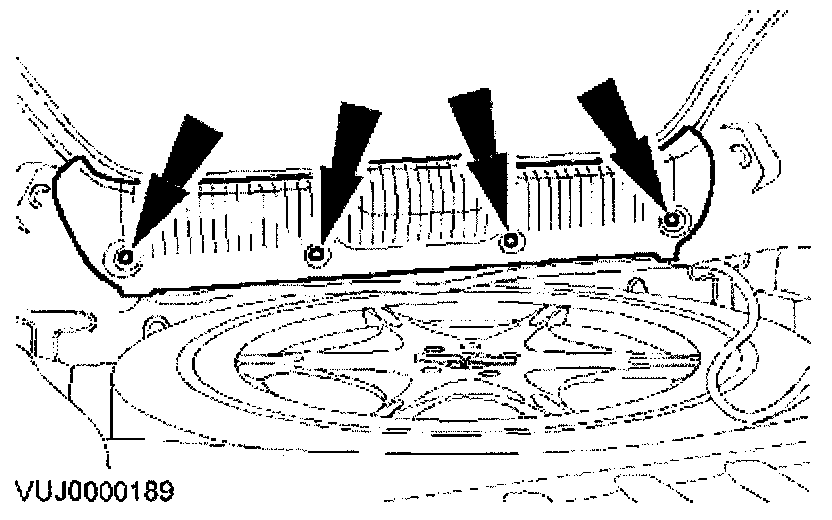

2. Remove the luggage compartment rear trim panel.







3. Remove the luggage compartment right-hand trim panel.







4. Detach the battery cable from the main wiring harness.

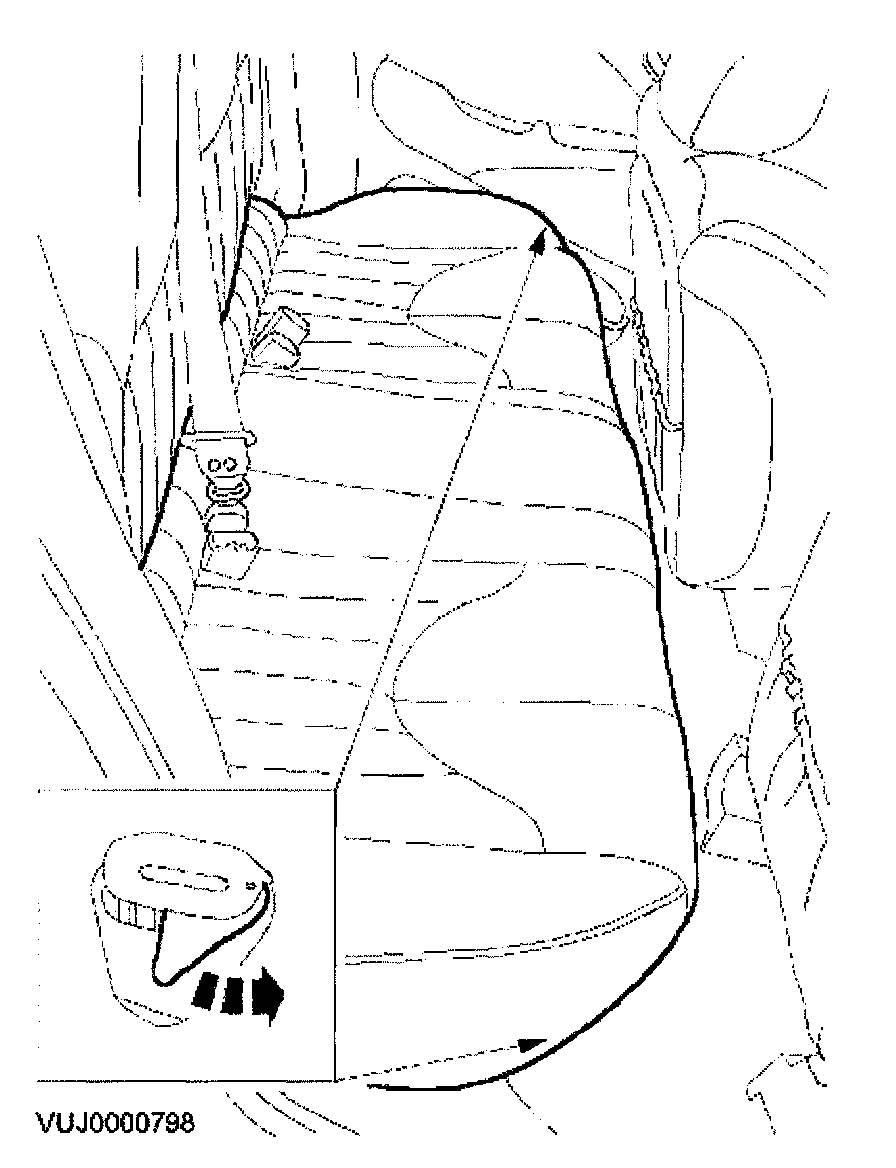

5. Remove the rear seat base.

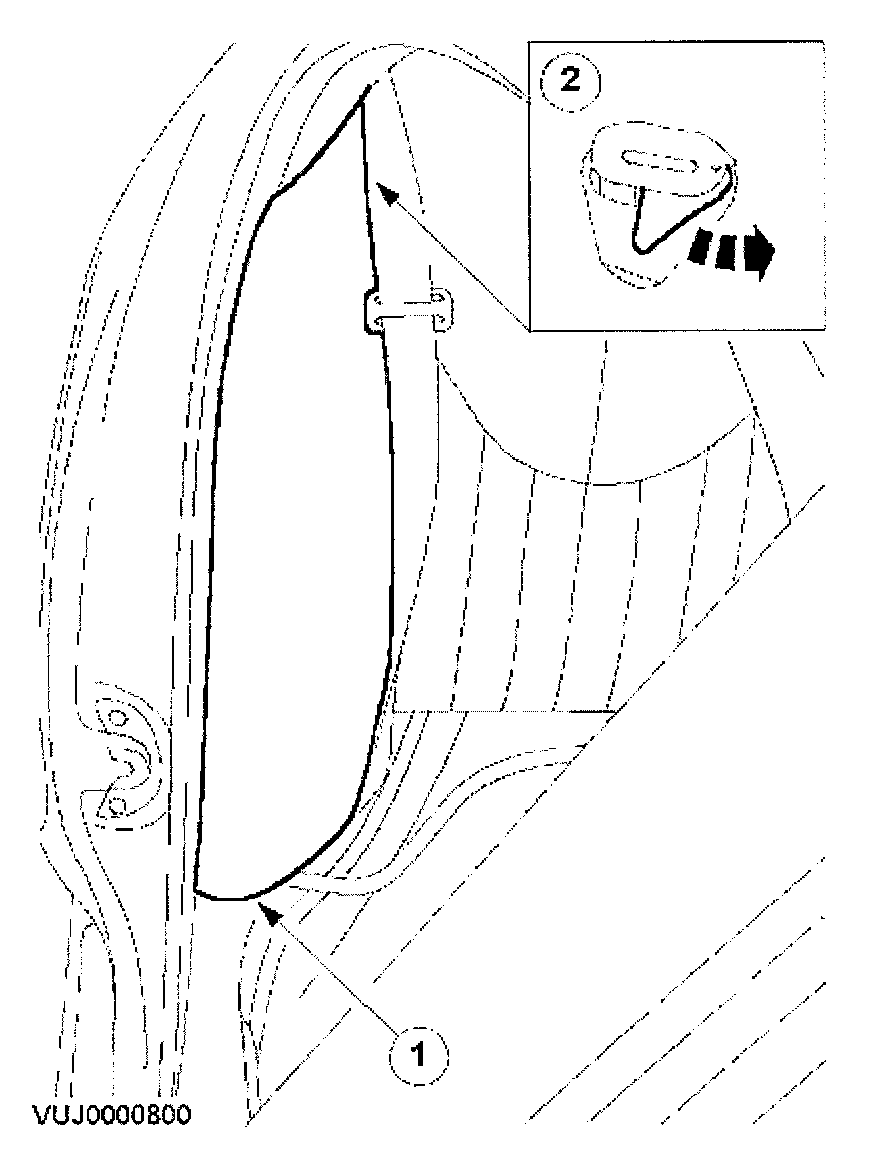

6. Remove the right-hand seat bolster cushion.







7. Remove the right-hand rear scuff plate.







8. Remove the access panel.







9. Remove the access panel.







10. Remove the right-hand front scuff plate.

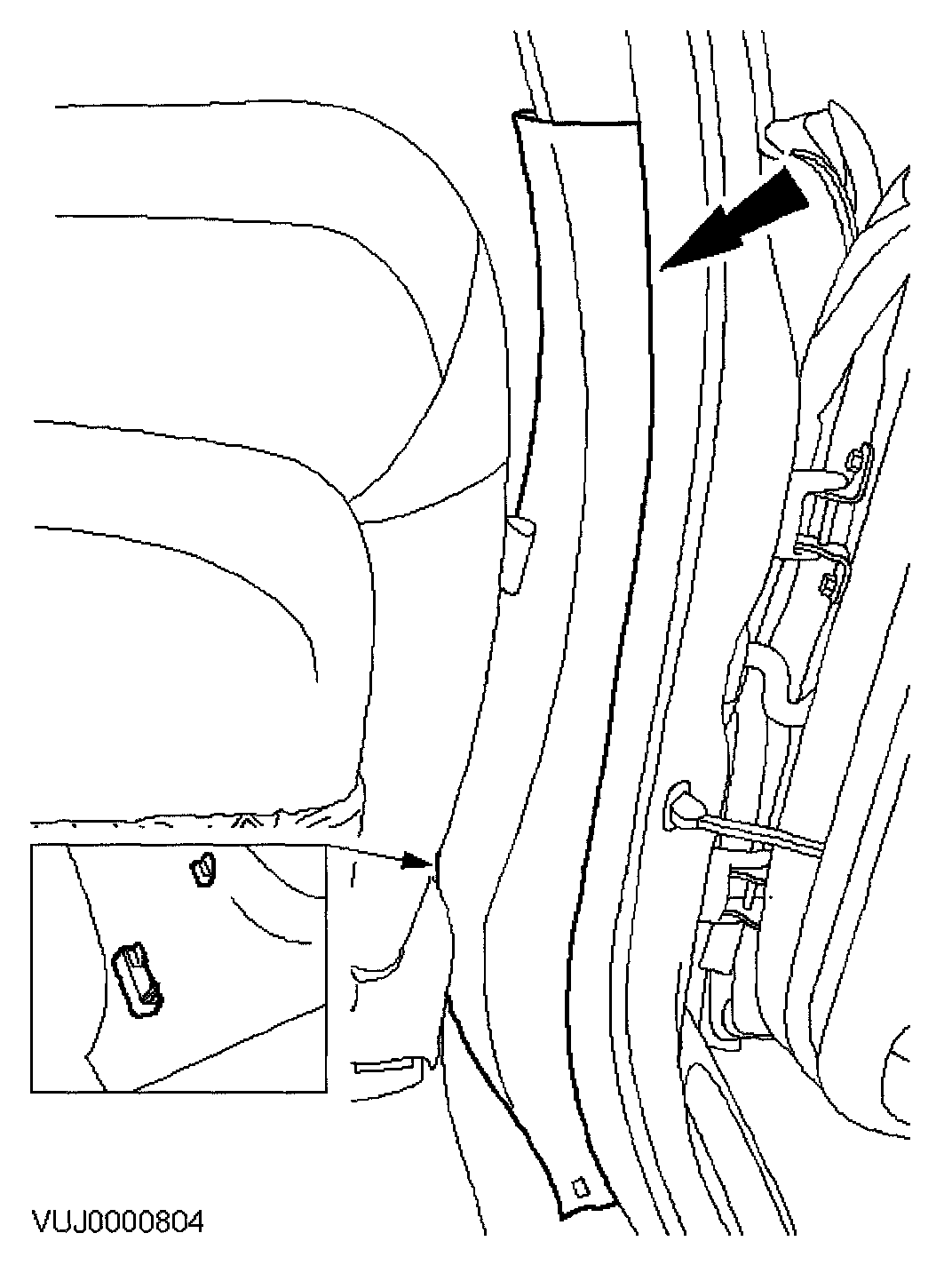

11. Remove the right-hand lower B-pillar trim.







12. Remove the cowl side trim panel.
Detach the door apeture weather strip.
Remove the cowl side trim panel.







13. Remove the wiring harness cover.

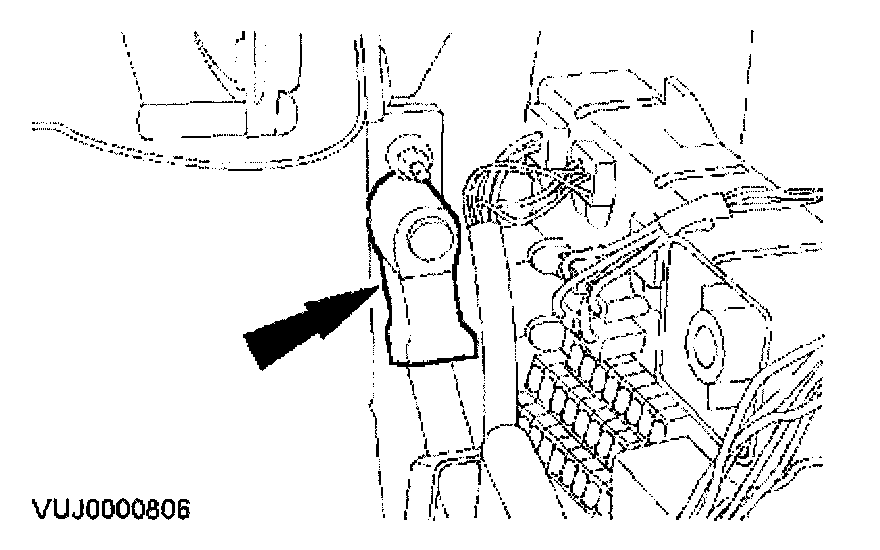

14. Remove the battery cable terminal cover.

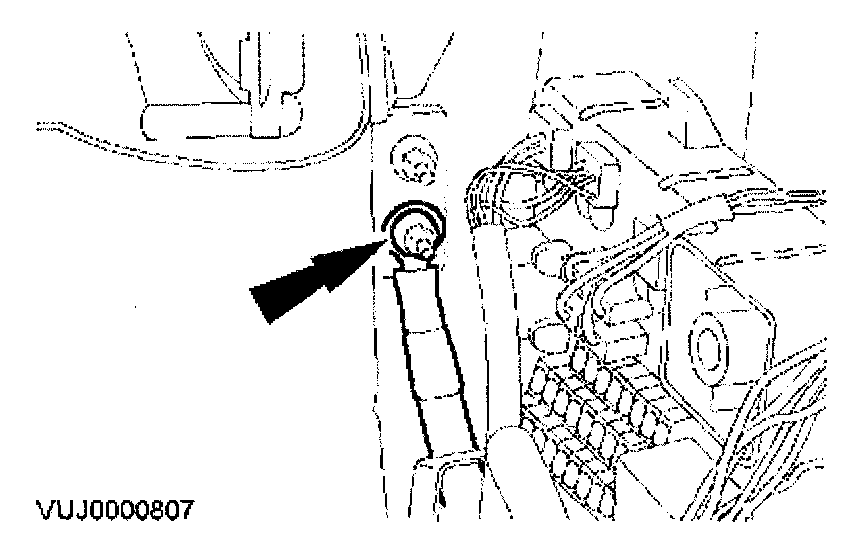

15. Remove the battery cable.

Installation
1. To install, reverse the removal procedure.
