Wiper Motor Linkage: Service and Repair

Special Service Tools:

Remover - windscreen wiper


Removal

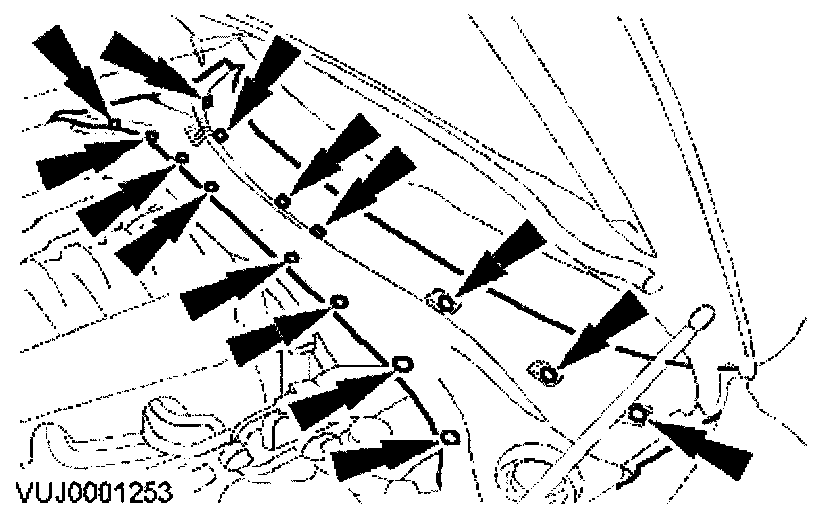

1. Remove the wiper arm nut covers.





2. Remove the wiper arm nuts.

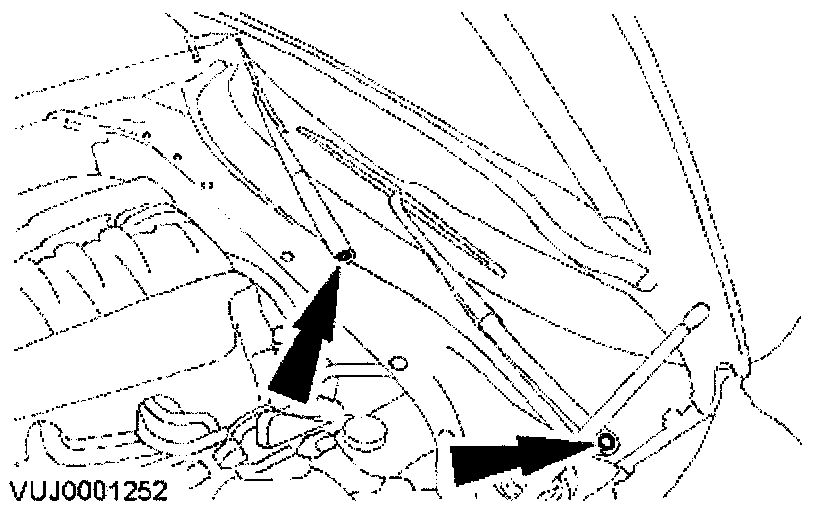

3. Using special tool, detach the wiper arms.





4. Remove the wiper arms.





5. Remove the cowl grille.

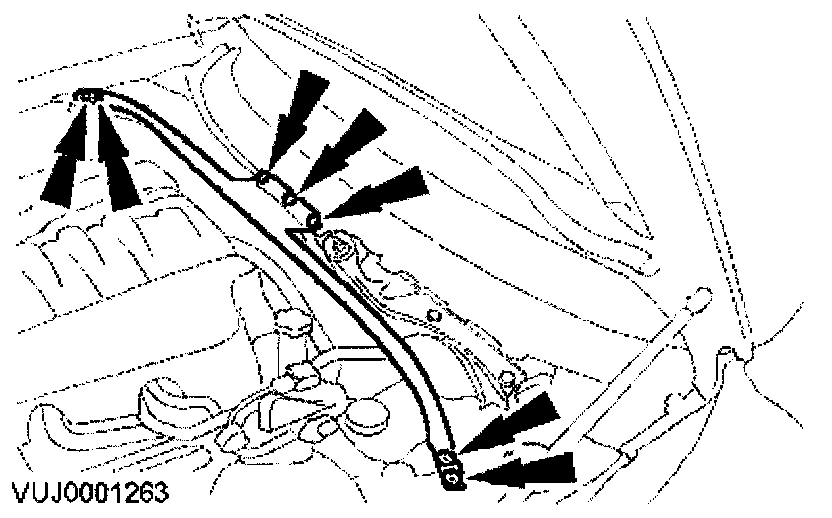

6. Remove the engine compartment brace.
7. Remove the brake booster.





8. Remove the expansion tank.

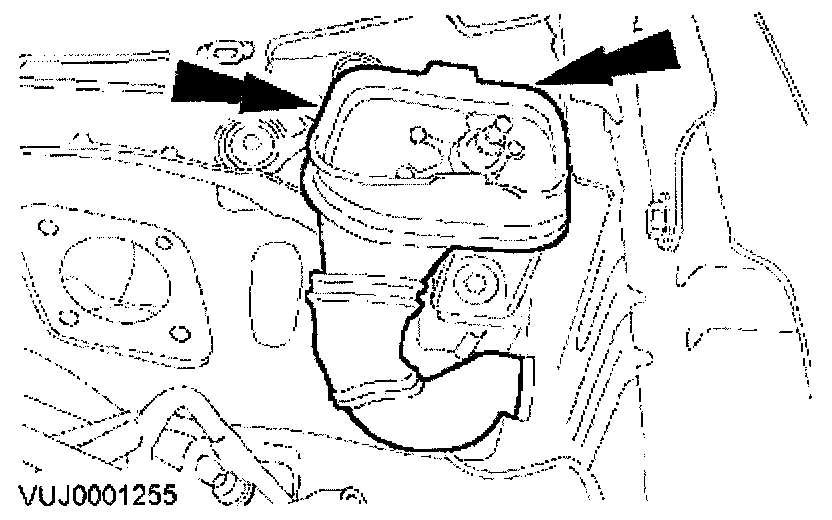

9. Remove the drainage tube assembly.

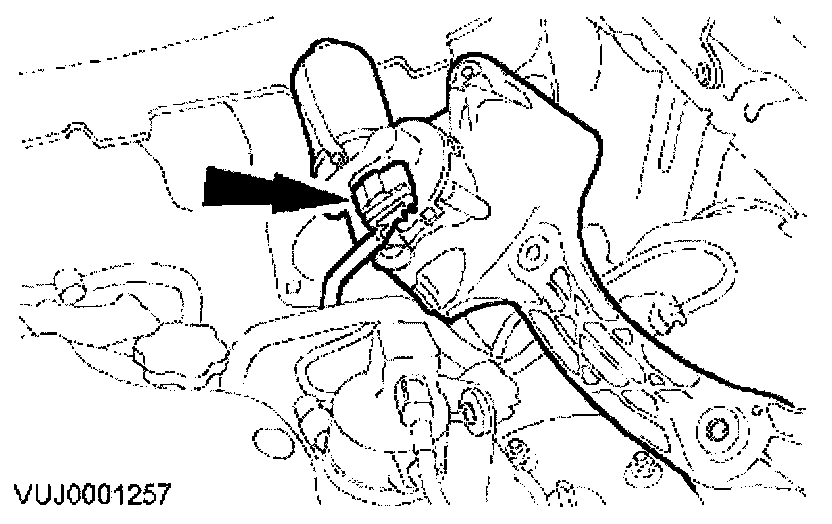

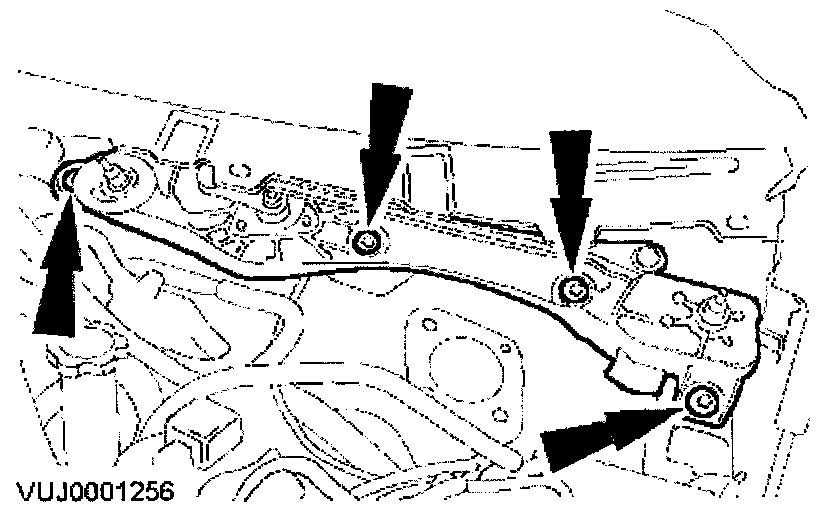

10. Detach the mounting arm, motor and pivot shaft assembly.





11. Remove the mounting arm, motor and pivot shaft assembly.


Installation

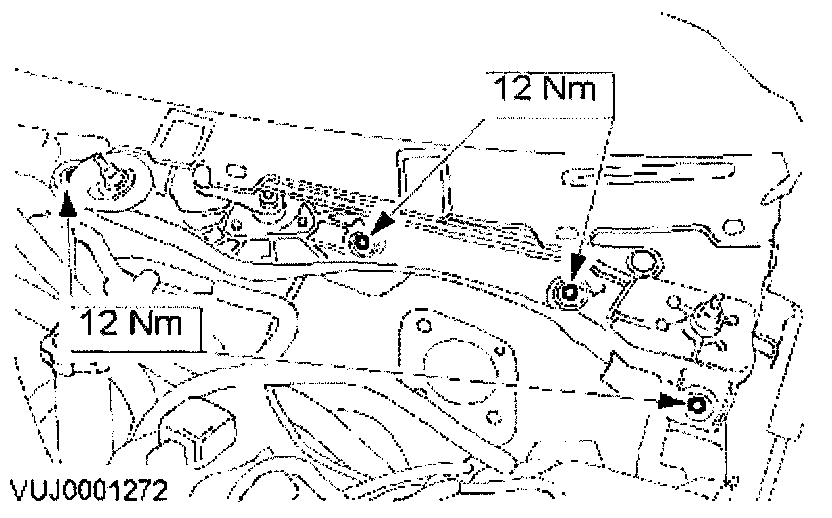

1. To install, reverse the removal procedure.
