Antilock Brakes / Traction Control Systems

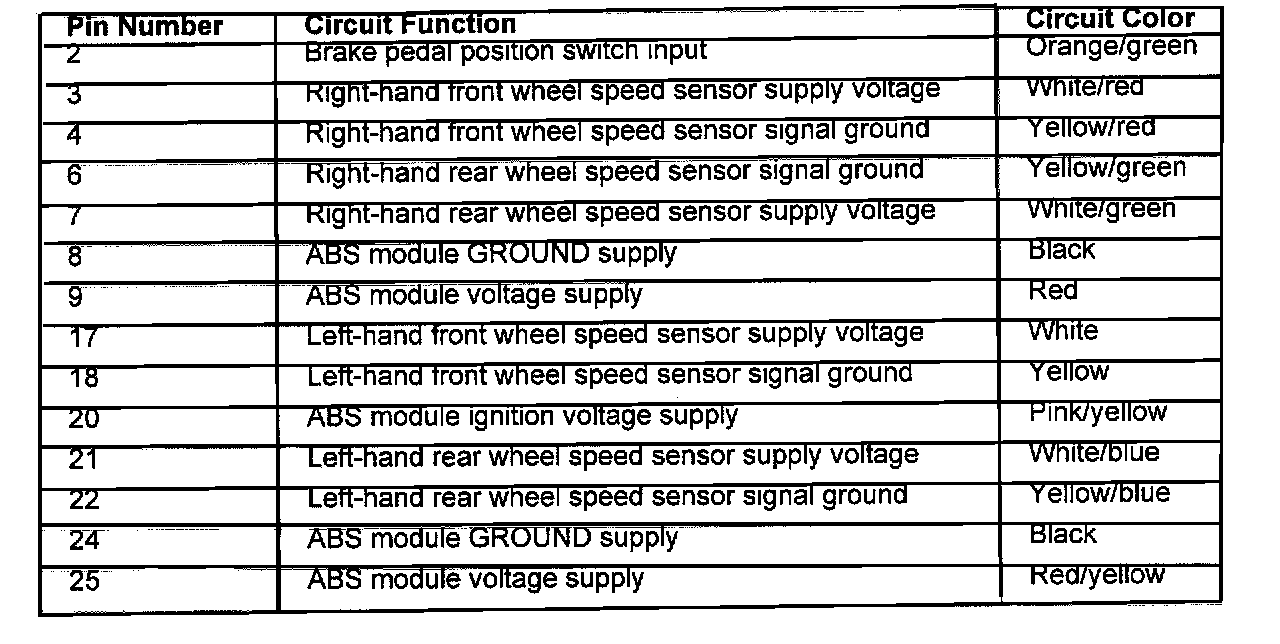

ABS Control Module Harness Connector








Brake Pedal Position Switch

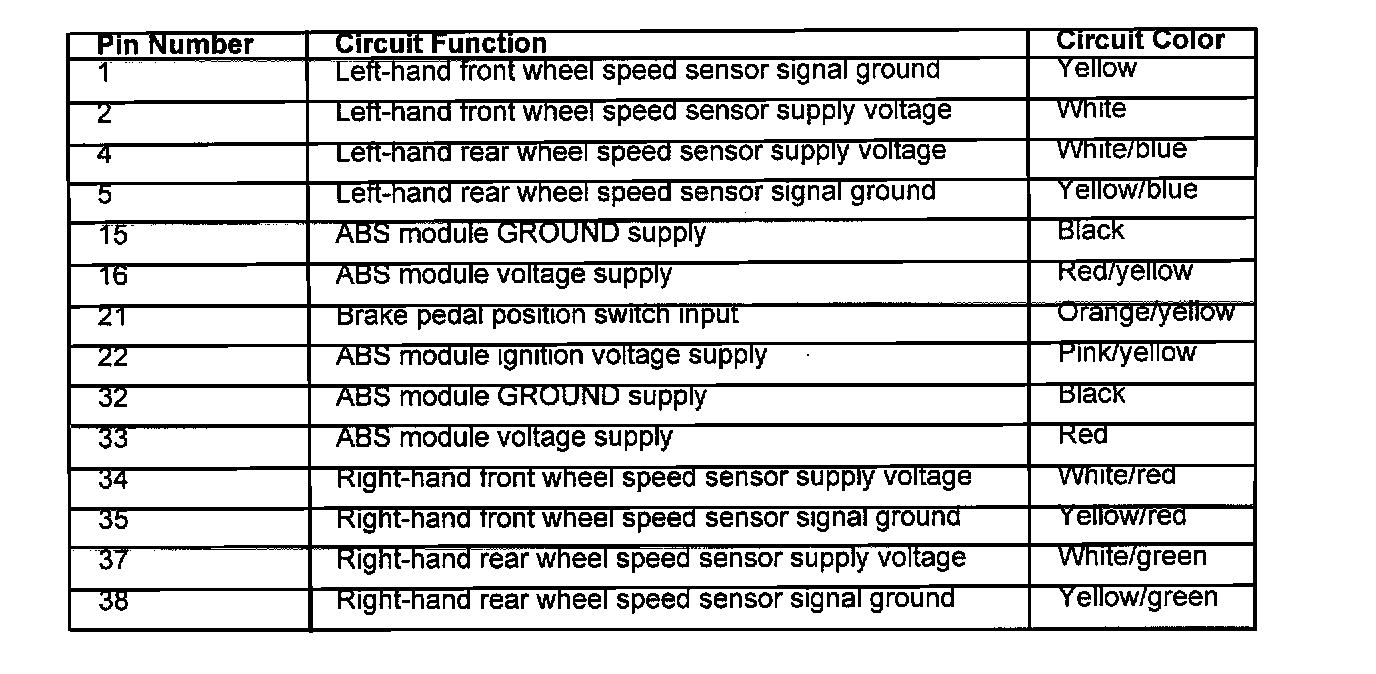

DSC Control module Harness Control





Brake Pedal Position Switch





Steering Angle Rate Sensor Harness Connector








Lateral Accelerometer Harness Connector





Yaw Velocity Sensor Harness Connector








Left-Hand Front Wheel Sensor Harness Connector





Left-hand Rear Wheel Sensor Harness Connector





Right-Hand Front Wheel Sensor Harness Connector





Right-Hand Rear Wheel Sensor Harness Connector





Primary Brake Pressure Sensor Harness Connector





Secondary Brake Pressure Sensor Harness Connector
