Refrigerant Pressure Sensor / Switch: Service and Repair

Pressure Cut-Off Switch
It is not necessary to discharge the refrigerant system to remove the A/C pressure cut-off switch. Controls the signal to the pcm to control the fan speed.

Removal
1. Remove the air intake tube.

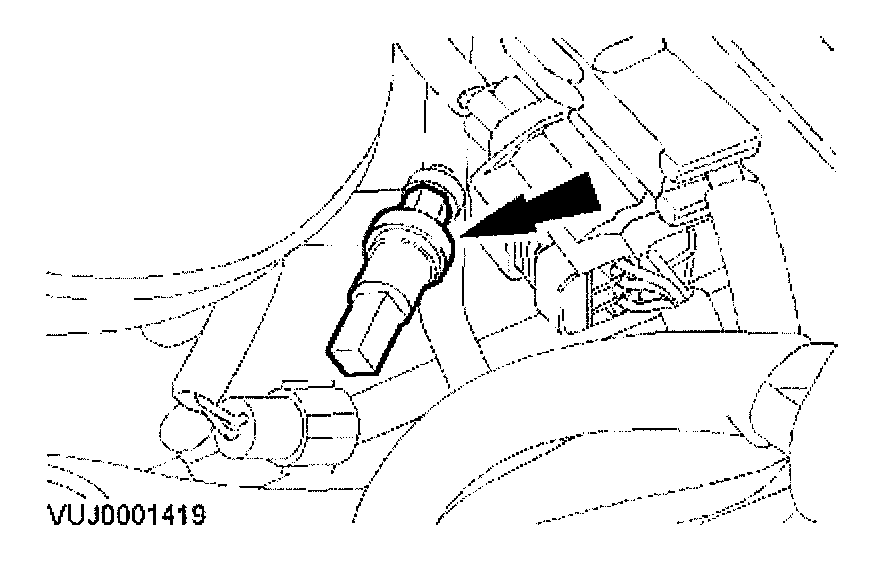

2. Disconnect the pressure cut-off switch electrical connector.

3. Remove the pressure cut-off switch.

Installation

1. To install, reverse the removal procedure.
