Variable Valve Timing Solenoid: Service and Repair
Removal 1.
Remove the respective
valve cover.
2.

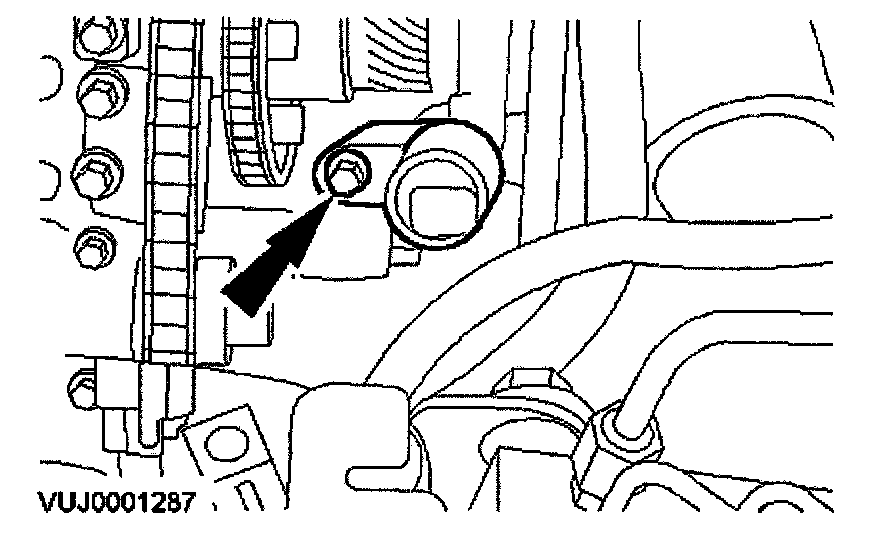

Remove
variable camshaft timing oil control solenoid.
NOTE: Right-hand bank shown. Left-hand bank similar.

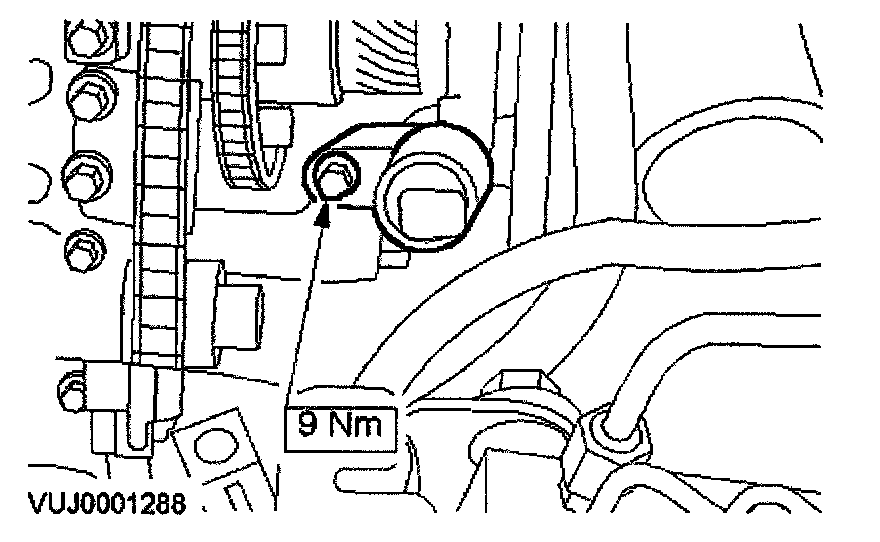

Installation 1.
To install, reverse removal procedure.
