Engine Controls - Driveability Issues/Stalling: Overview

S303-07

S-TYPE

DATE 12/01
Amended 02/04

MODEL
2000-*02* MY
S-TYPE

VIN
L00001-*M44997*

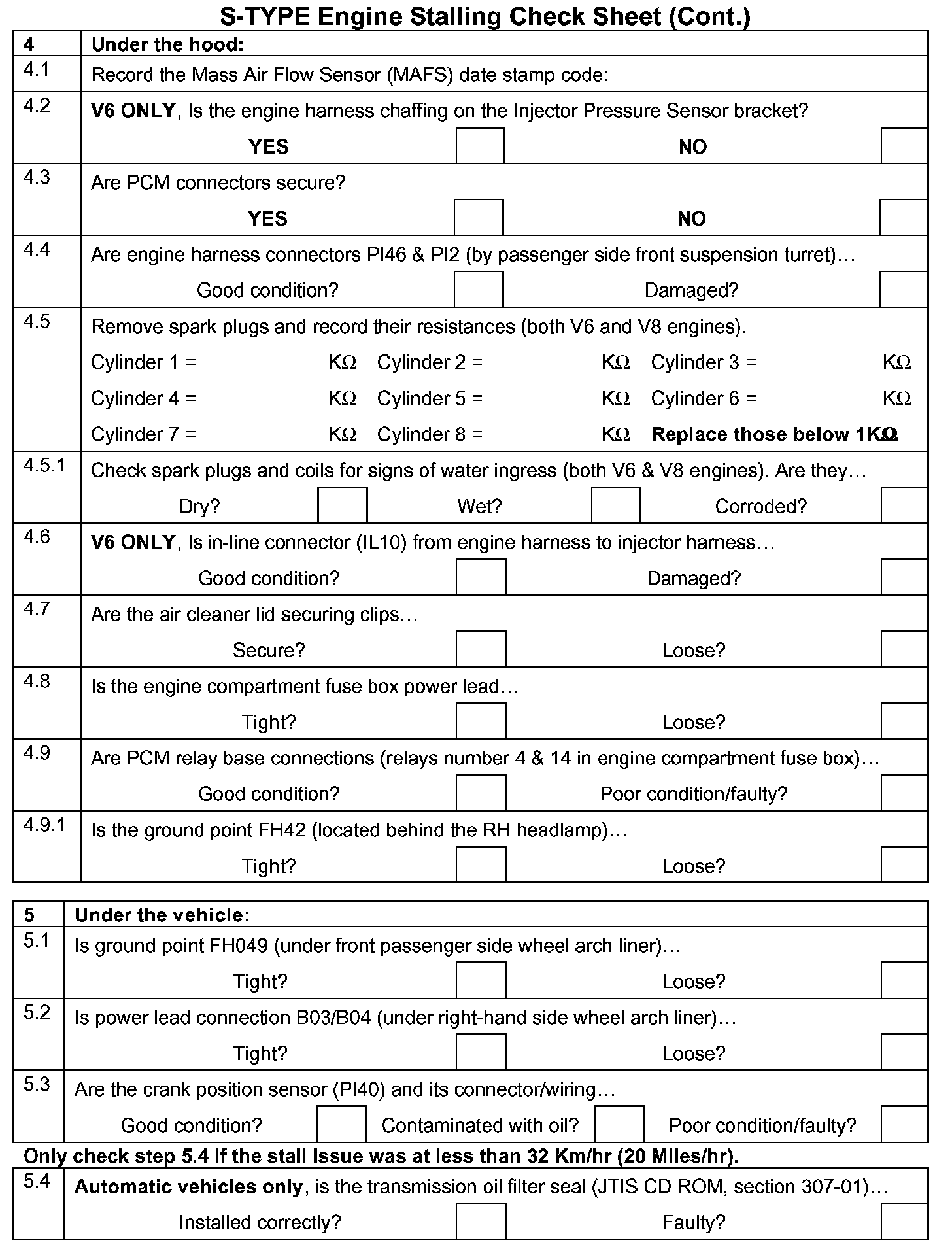

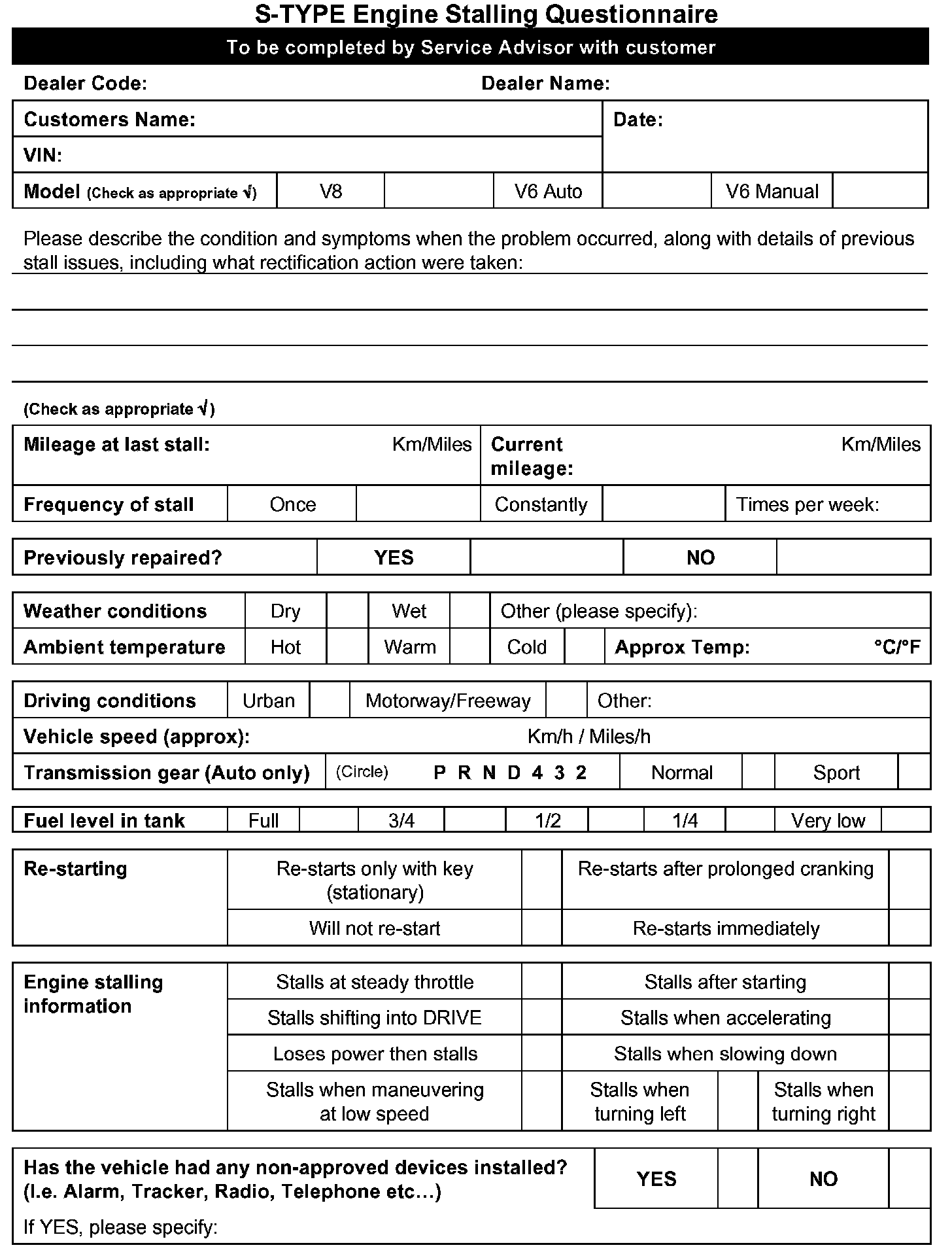

Driveablity Issues - Diagnostic Checks - Check Sheet

Remove and destroy Bulletin S303-07 dated 12/01. Replace with this Bulletin.

Revisions are shown with asterisks and black bars.

Issue:











Some owners of 2000-*02* MY S-TYPE vehicles, *within the above VIN range*, may experience driveablity issues including stalling. Check sheets are shown followed with diagnostic information for all S-TYPE vehicles with driveablity issues including stalling.

Parts Information:

When proceeding with engine stalling check sheet, utilize harness repair kits 418-S411 and 418-S065.





Warranty Information
