Climate Control Panel

Climate Control Panel

Removal
1. Move 'J' gate selector to position 'D'.
2. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
3. Remove 'J' gate finisher. Service and Repair
4. Remove 'J' gate finisher retaining plate. Service and Repair
5. Remove center console veneer panel. Service and Repair
6. Remove radio and console. Service and Repair

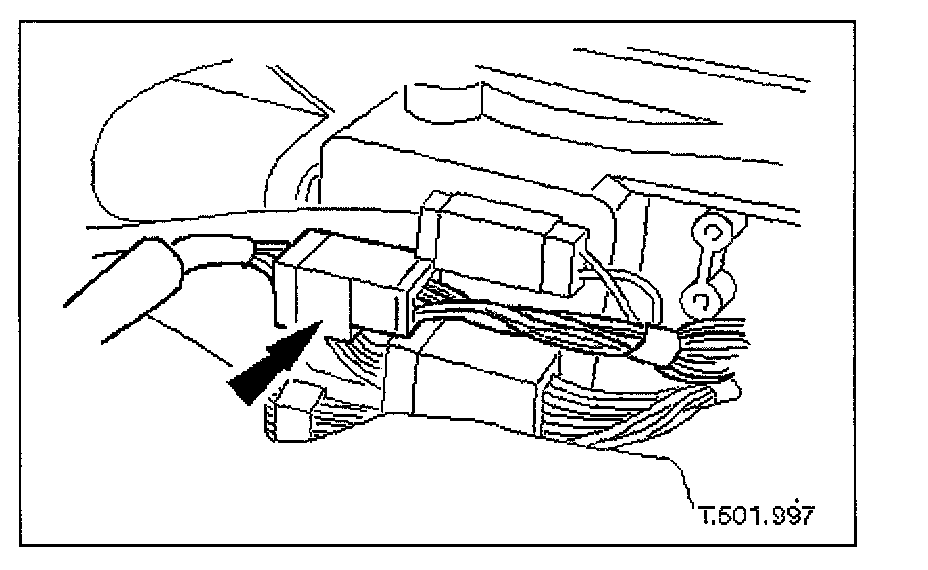

7. Disconnect air conditioning panel flying lead multiplug (blue) in LH side of transmission tunnel.







8. Slacken and remove remaining screw securing air conditioning panel console to BIW.







9. Withdraw air conditioning panel and console for access and disconnect the harness multiplug behind panel.
10. Remove air conditioning panel from vehicle.
11. Remove panel from console.

Installation
1. Fit air conditioning panel to console.
2. Position air conditioning panel and console at center console and connect multiplugs.
3. Fully seat air conditioning panel and console on BIW bracket and fit and tighten securing screw.
4. Fit radio and console. Service and Repair
5. Fit center console veneer panel. Service and Repair
6. Fit 'J' gate surround. Service and Repair
7. Fit 'J' gate finisher. Service and Repair
8. Connect ground cable to battery terminal and fit battery cover. Service and Repair
9. Return 'J' gate selector to position 'P'.
