Vehicle Speed Sensor: Service and Repair



Speed Control Module

Removal
1. Disconnect the battery ground cable.
2. Remove the hood.

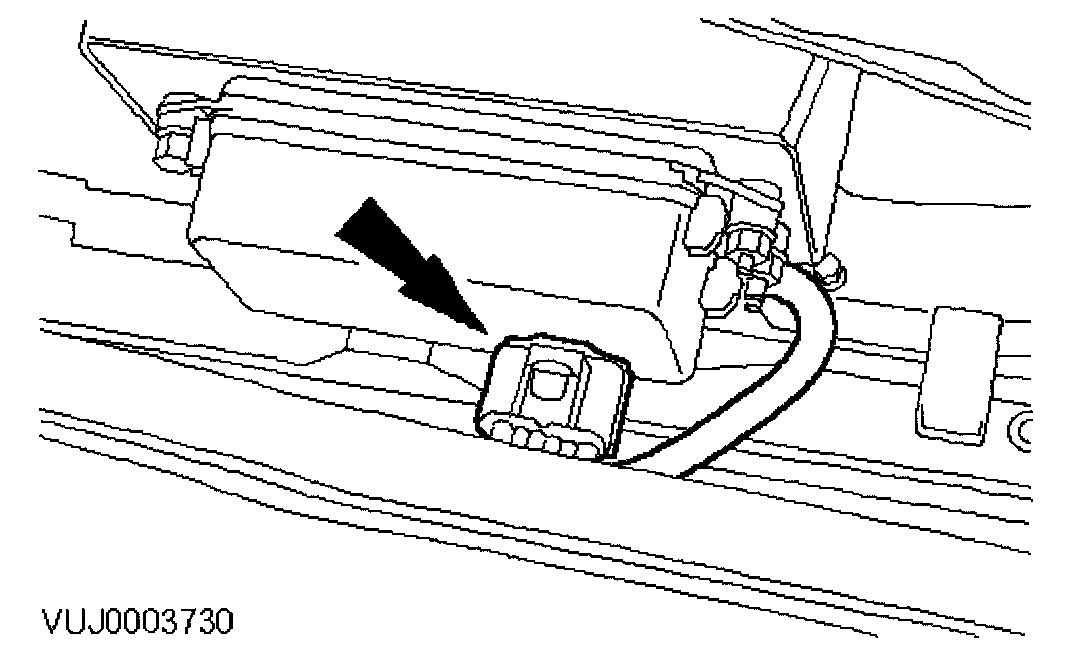

3. Disconnect the speed control module electrical connector.

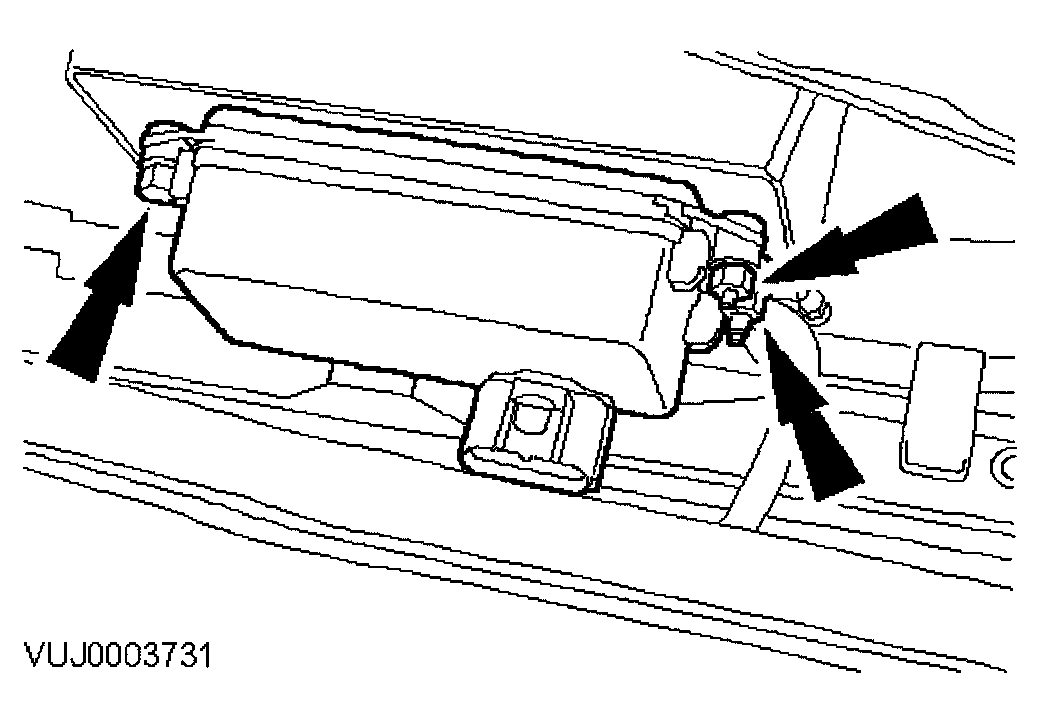

4. Remove the speed control module.

Installation





1. Adjust the speed control module alignment bolt shoulder to mounting bracket clearance to 1.5 mm.

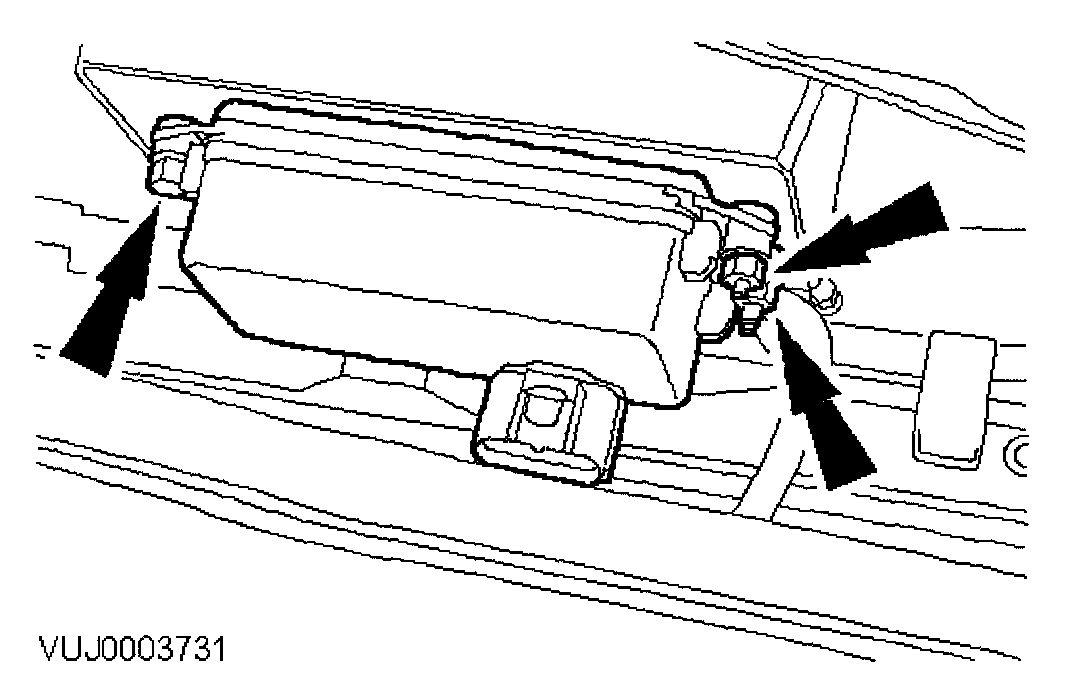

2. Install the speed control module.
- Tighten to 5 Nm.

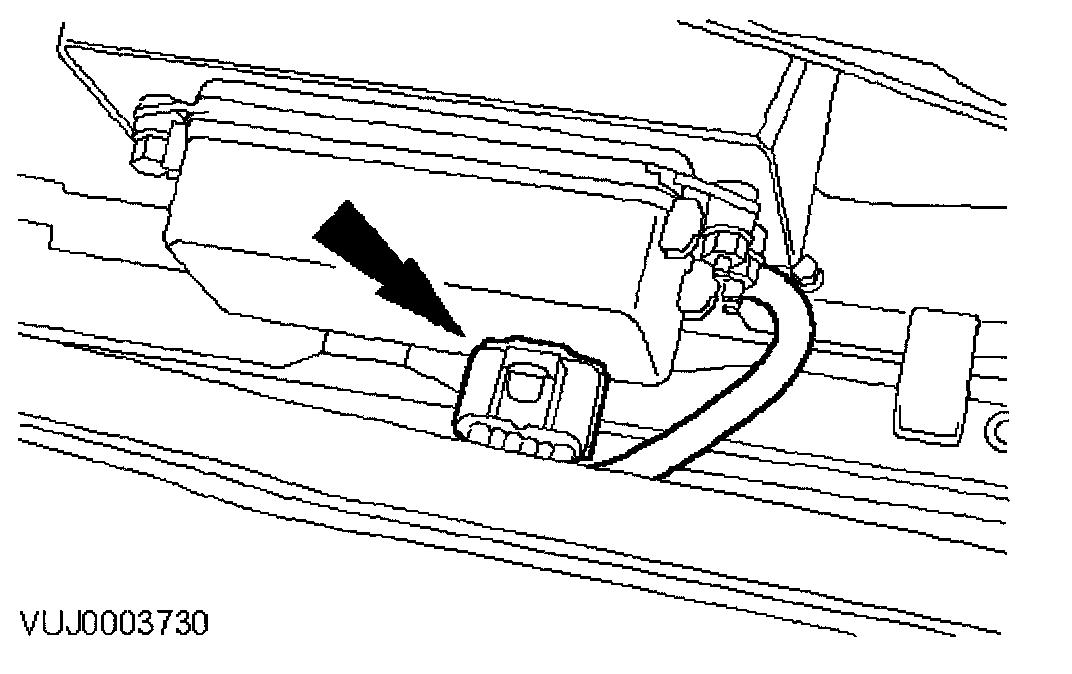

3. Connect the speed control module electrical connector.
4. Check and adjust the speed control module alignment.
5. Install the hood.
6. Carry out the battery reconnection procedure.
7. initialize the system.
