Front Seat Control Module

Front Seat Control Module 86.75.16

Removal
1. Disconnect the battery ground cable.

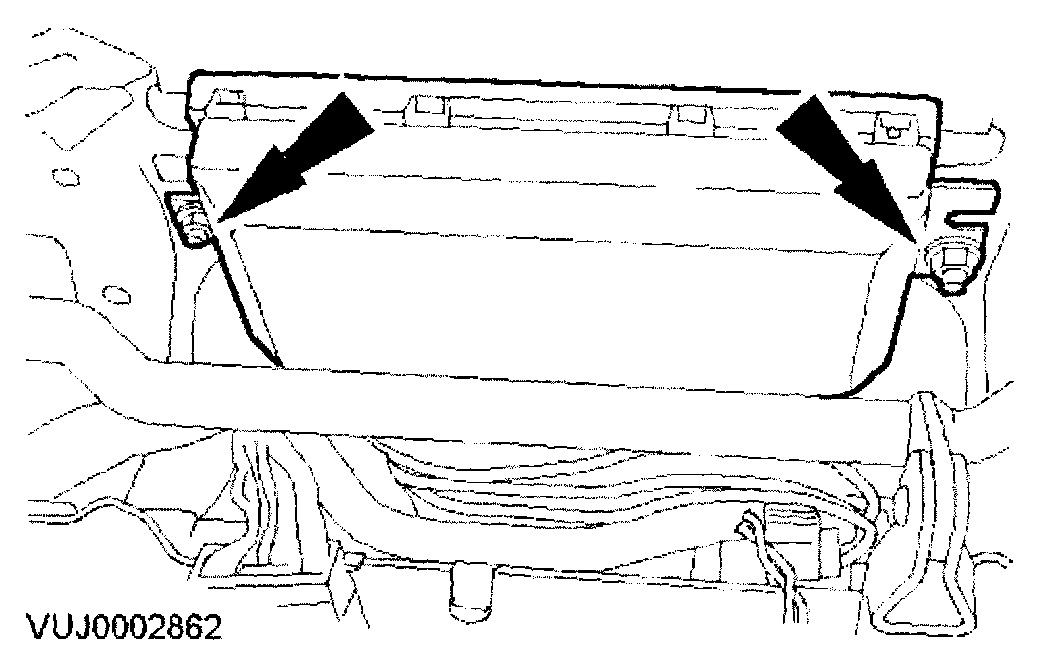

2. Detach the seat control module and mounting bracket.

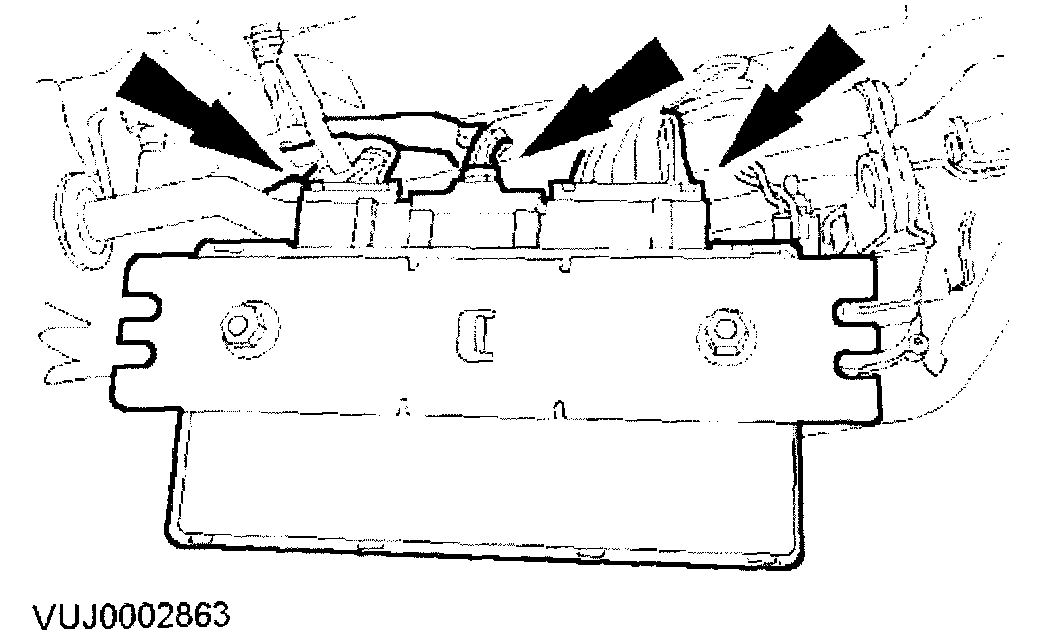

3. Remove the seat control module and mounting bracket.
- Disconnect the electrical connectors.

4. Remove the seat control module.

Installation

1. To install, reverse the removal procedure.
- Tighten to 7 Nm.

2. Tighten to 4 Nm.
3. Carry out the battery reconnection procedure.
