Air Bag Control Module: Service and Repair

Removal
1. Disconnect the battery ground cable.

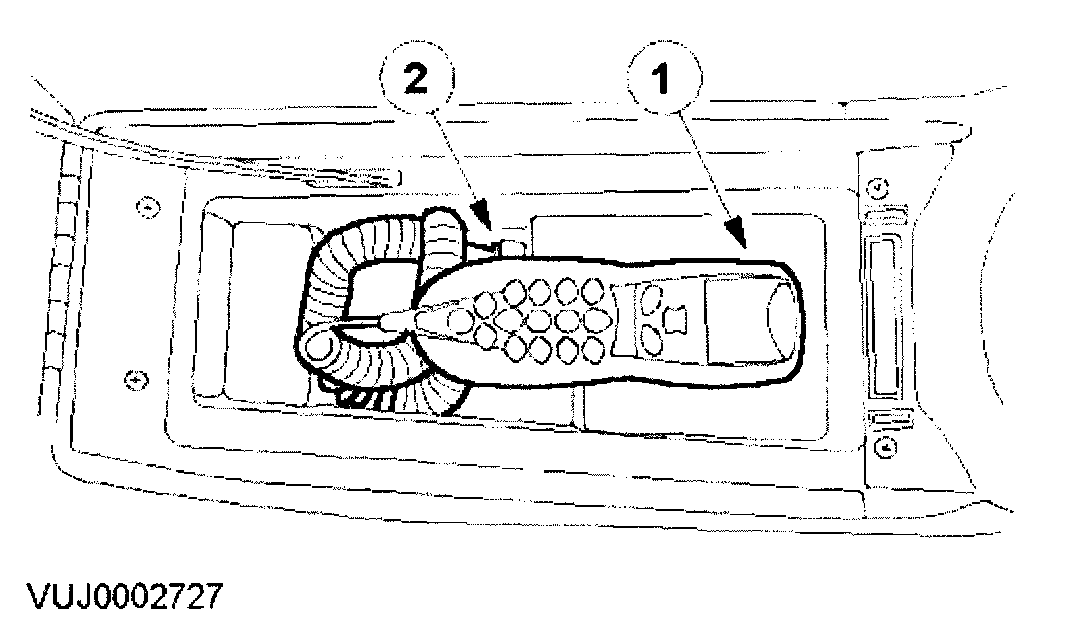

2. Remove the telephone hand set.
1. Detach the telephone hand set.
2. Remove the telephone hand set.







3. Remove the telephone holder.
1. Detach the retaining clips.
2. Remove the telephone holder.

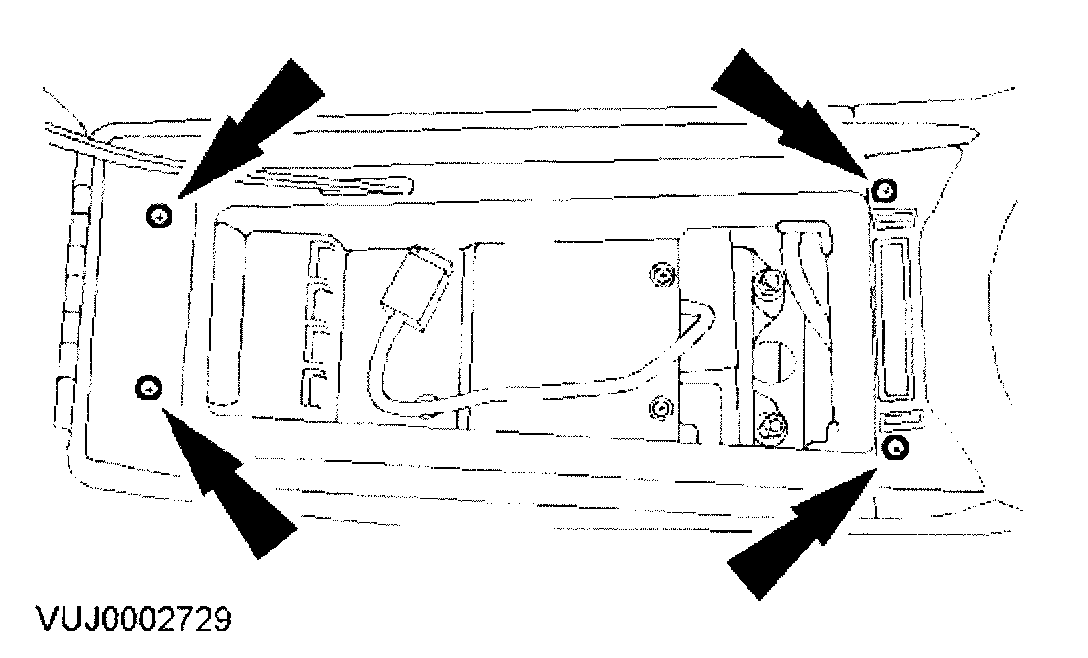

4. Remove the telephone stowage box cover.

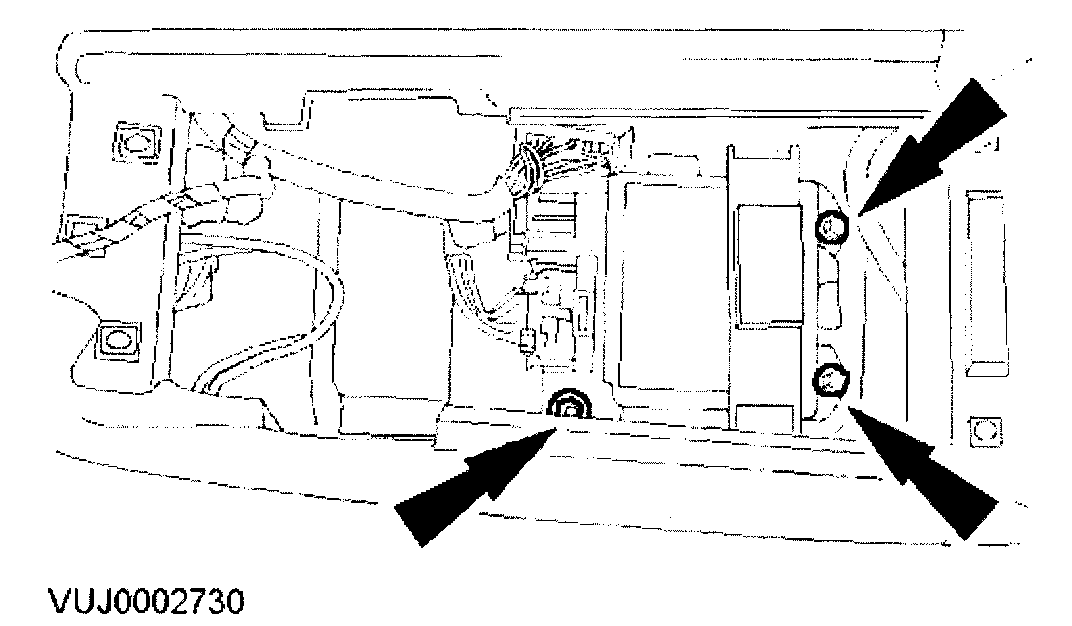

5. Detach the restraints control module.







6. Remove the restraints control module.

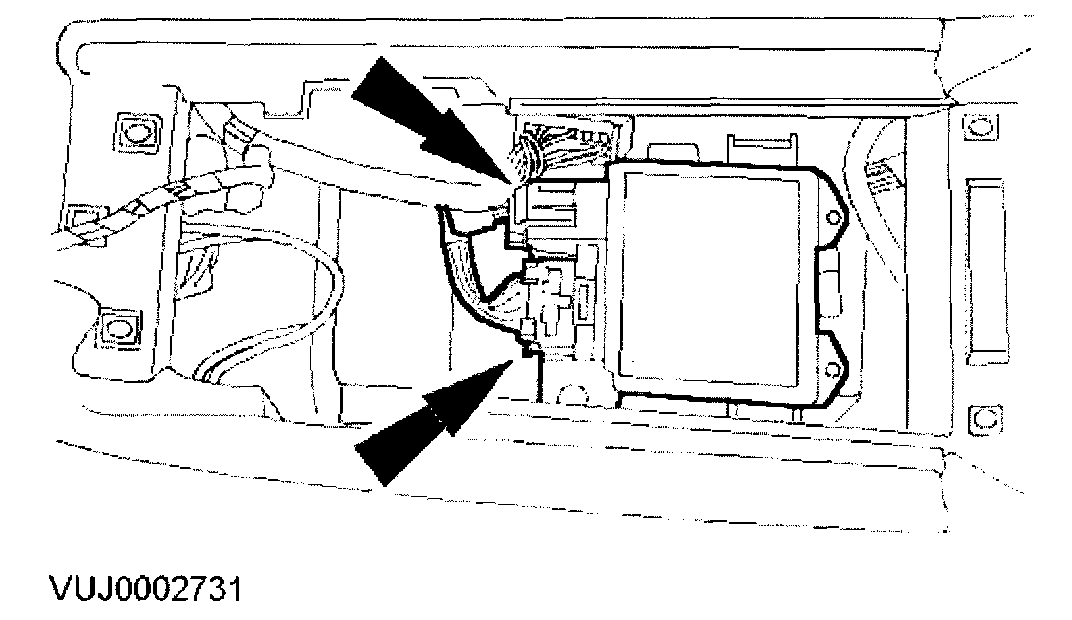

- Disconnect the electrical connectors.

Installation







1. To install, reverse the removal procedure.
- Tighten to 12 Nm.
2. Carry out the battery reconnection procedure.
