Rear Seat
Rear Seat Bolster (76.70.67)Removal 1.
Remove the rear seat cushion.
2.
Remove the rear seat bolster.

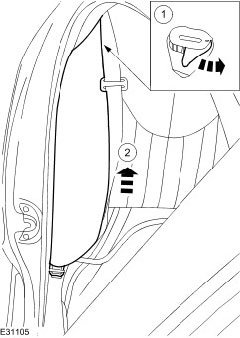

1.
Release the rear seat bolster retaining tang.
2.
Remove the rear seat bolster.
-
Detach the rear seat bolster from the retaining bracket.
Installation 1.
NOTE: Make sure the safety belt webbing and safety belt buckles are not twisted when installed.
To install, reverse the removal procedure.
