Control Module Pin Identification
Control Module Pin Identification

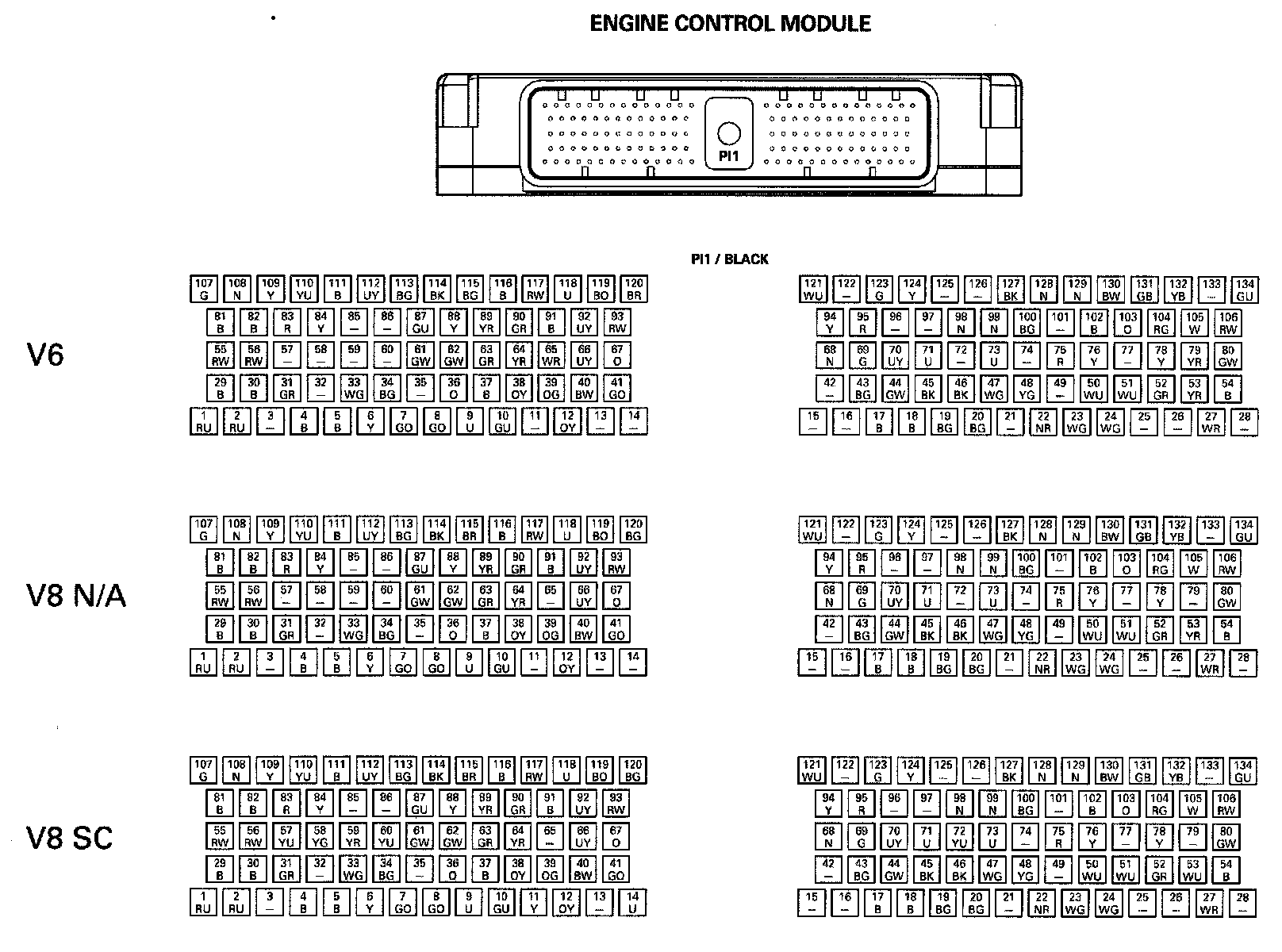

Engine Control Module:

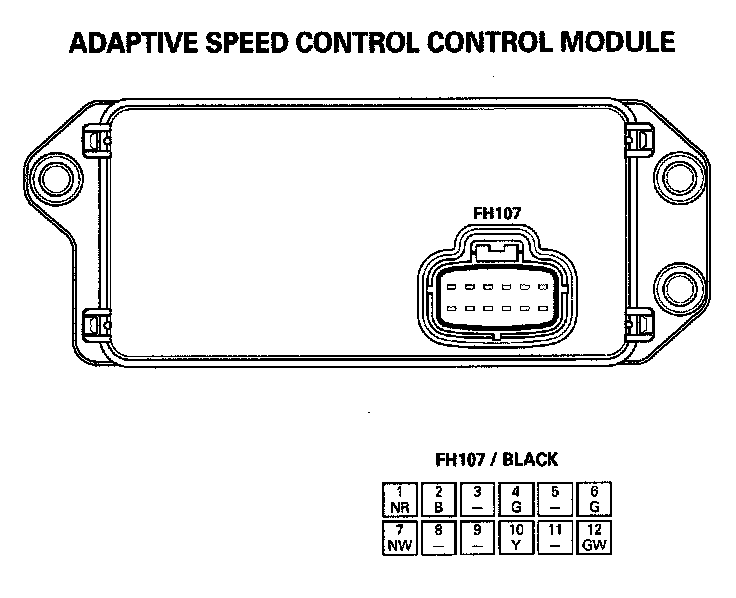

Adaptive Speed Control Control Module:

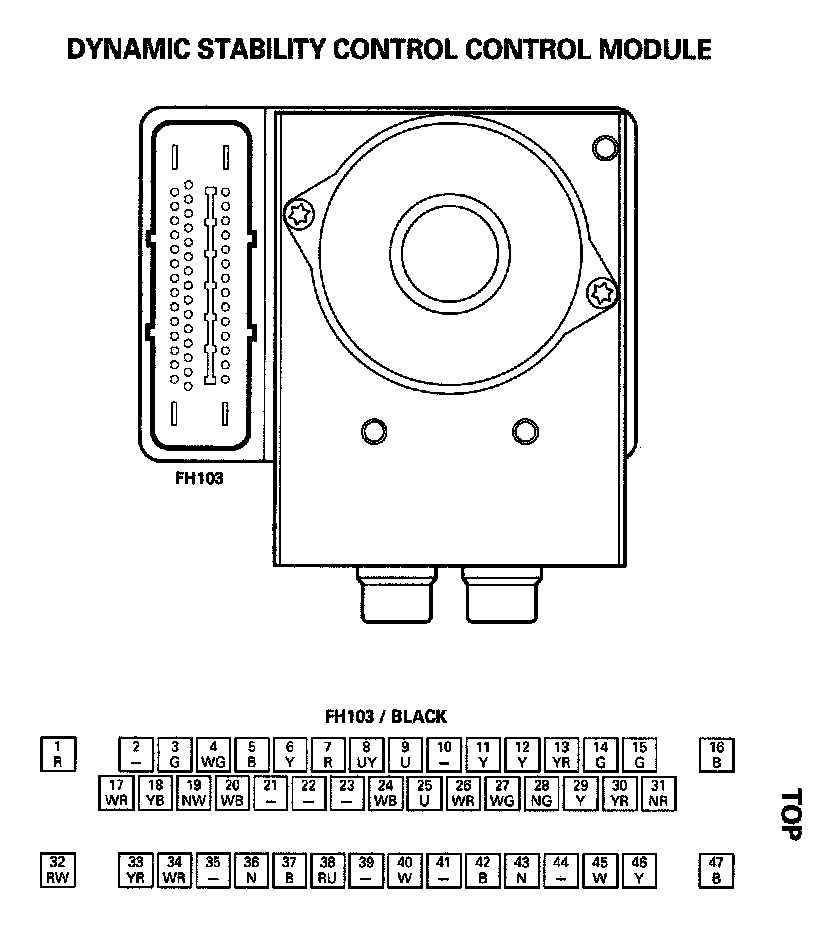

Dynamic Stability Control Control Module:

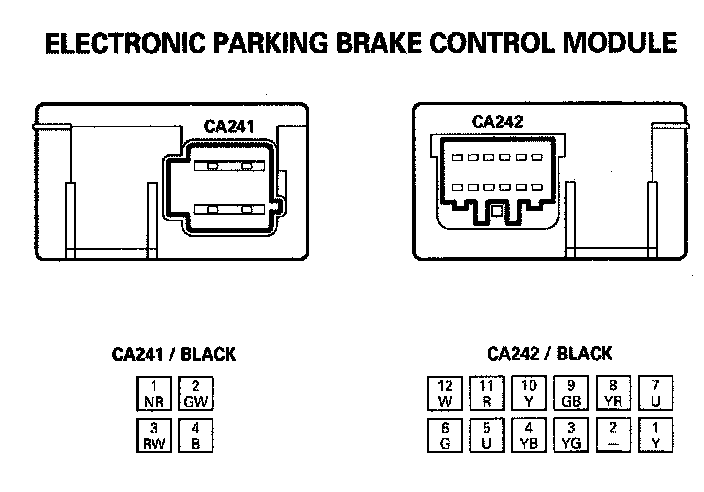

Electronic Parking Brake Control Module:

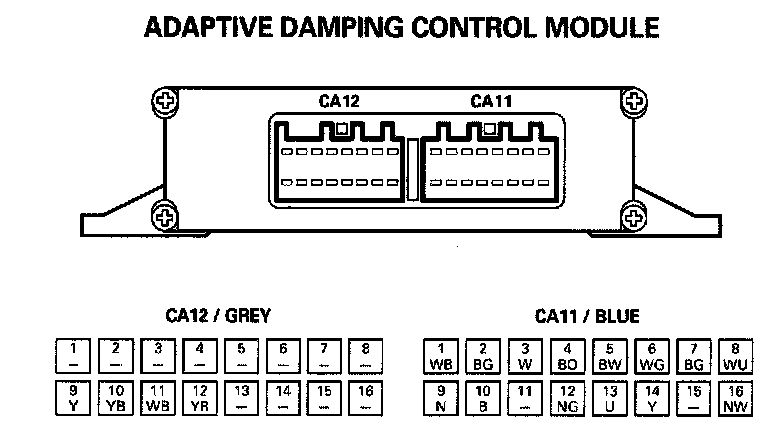

Adaptive Damping Control Module:

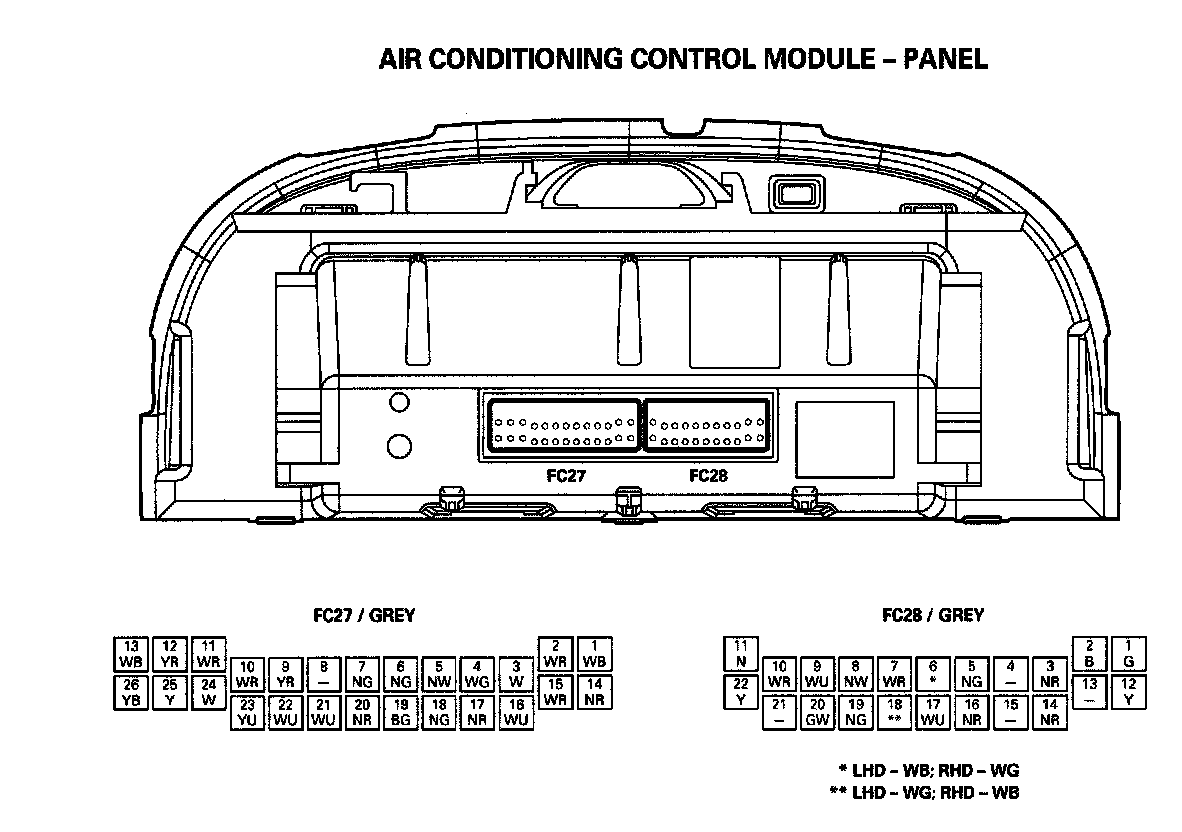

Air Conditioning Control Module - Panel:

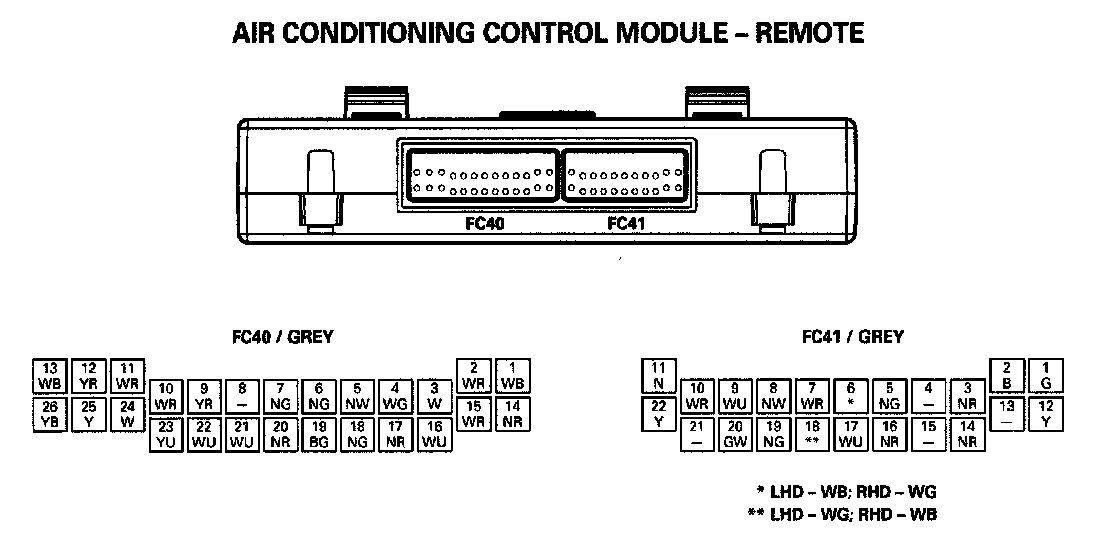

Air Conditioning Control Module - Remote:

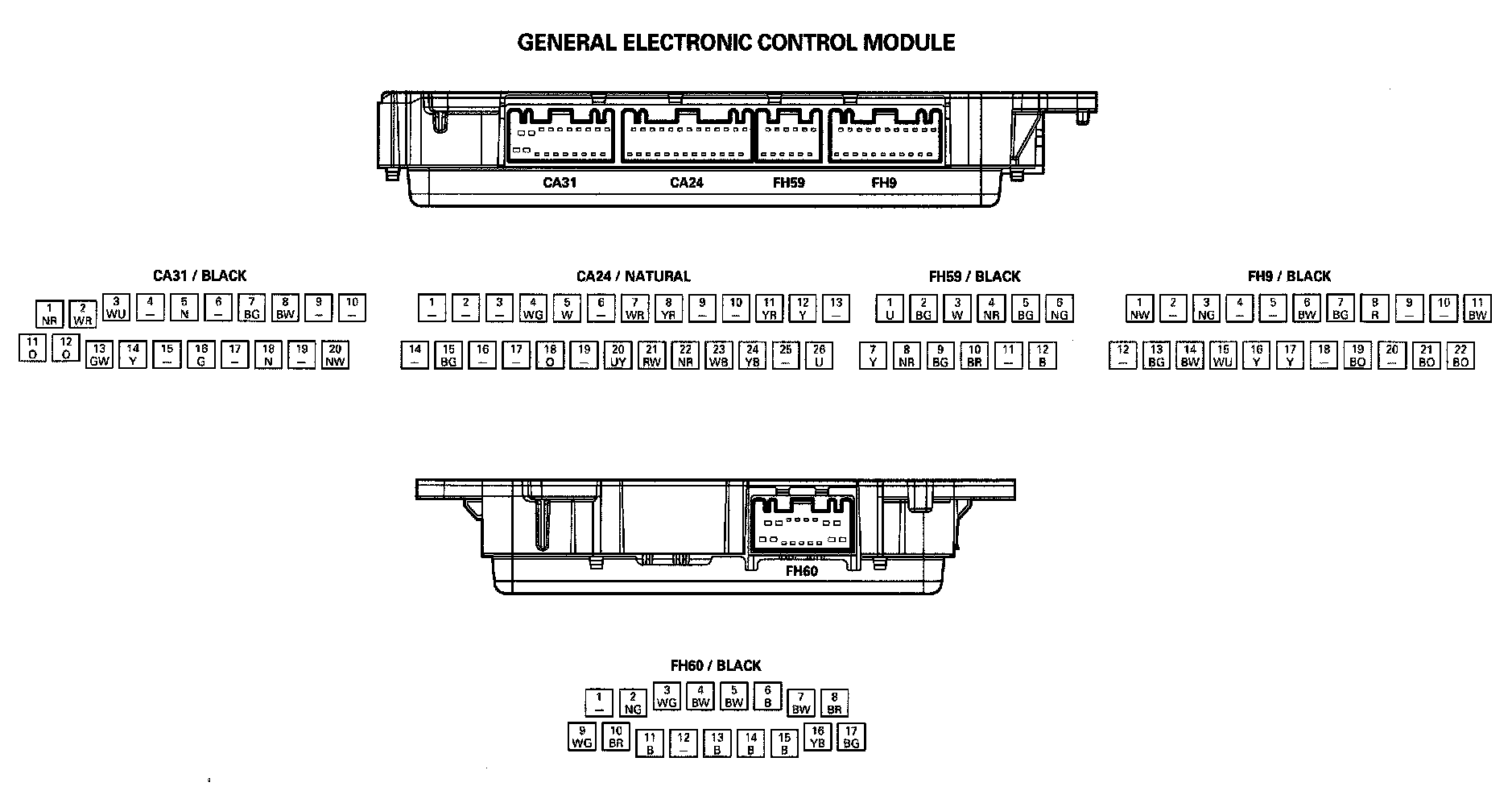

General Electronic Control Module:

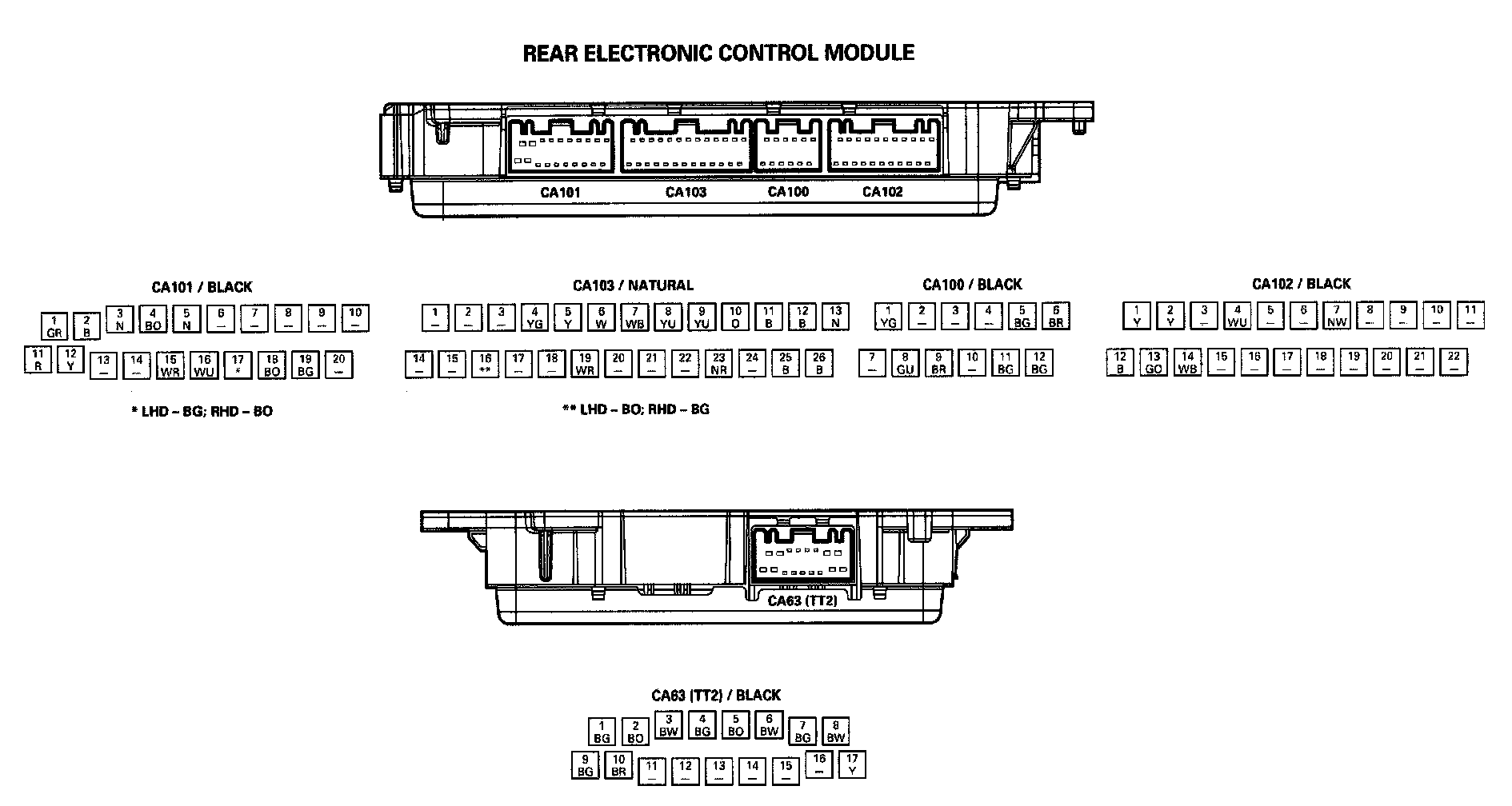

Rear Electronic Control Module:

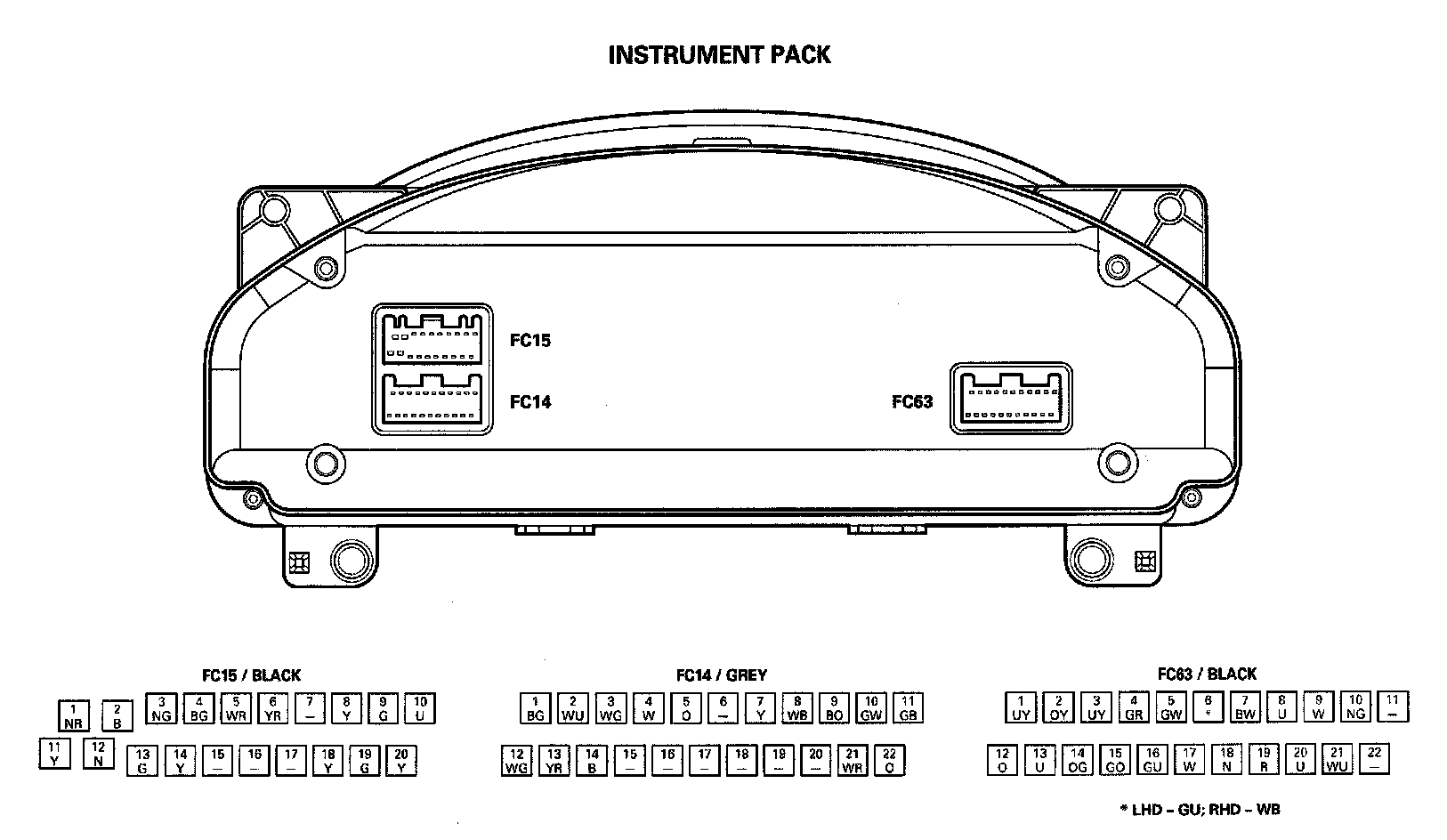

Instrument Pack:

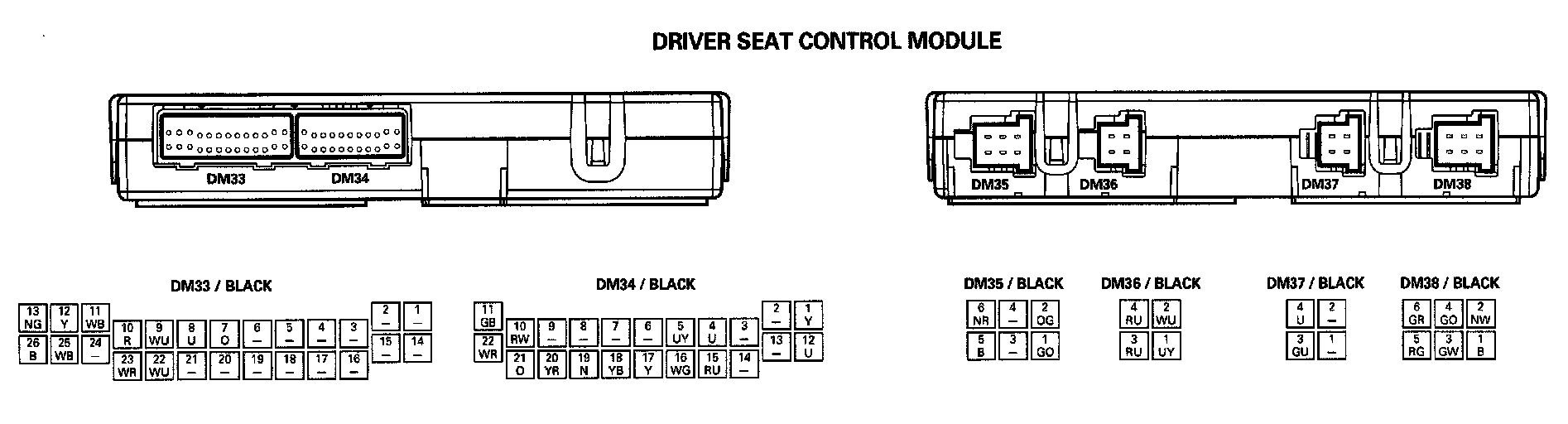

Driver Seat Control Module:

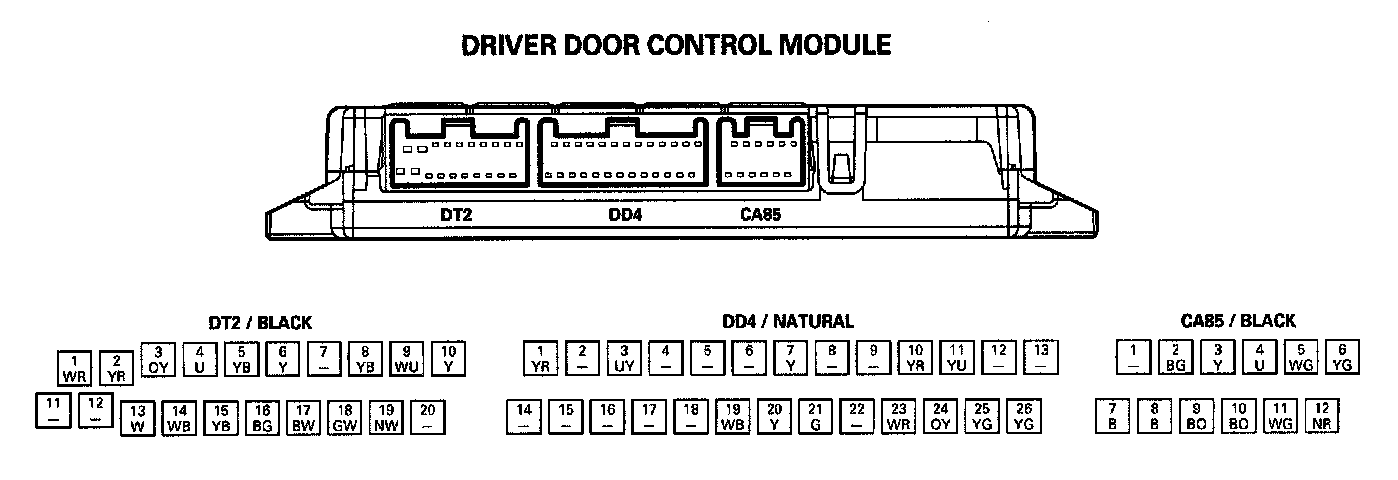

Driver Door Control Module:
