Cylinder Head Assembly: Specifications

Cylinder Head

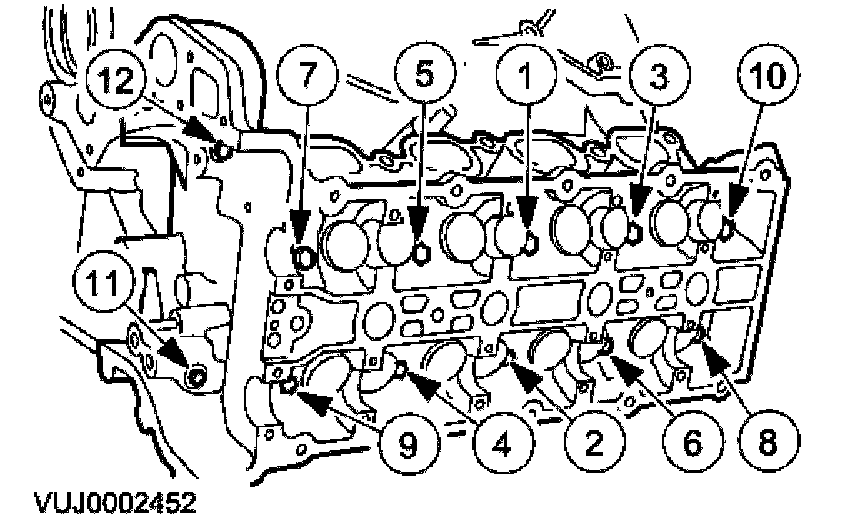

NOTE: Tighten the bolts 1 to 10 in the sequence shown.
Install the left-hand cylinder head.
1. Tighten bolts 1 to 10 to 20 Nm.
2. Tighten bolts 1 to 10 to 35 Nm.
3. Tighten bolts 1 to 10 to 90°
4. Tighten bolts 1 to 10 to 90°
5. Tighten bolts 11 to 12 to 25 Nm

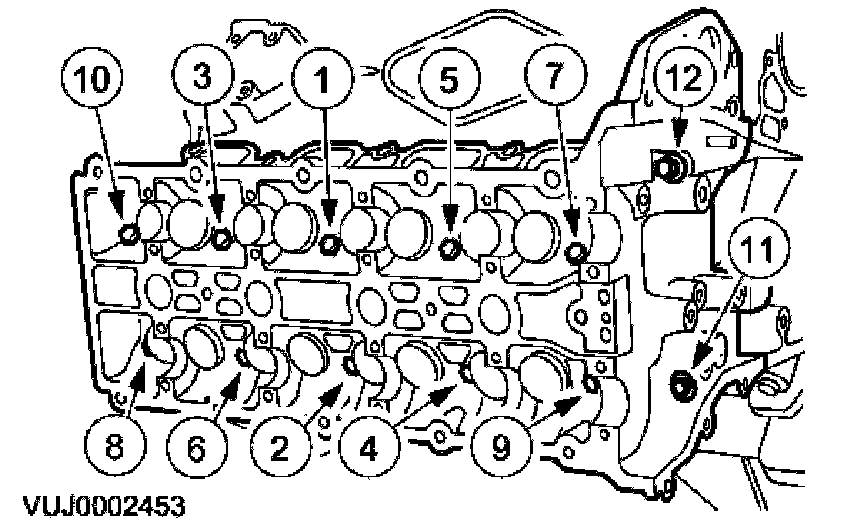

NOTE: Tighten the bolts 1 to 10 in the sequence shown.

Install the right-hand cylinder head.
1. Tighten bolts 1 to 10 to 20 Nm
2. Tighten bolts 1 to 10 to 35 Nm
3. Tighten bolts 1 to 10 to 90°
4. Tighten bolts 1 to 10 to 90°
5. Tighten bolts 11 to 12 to 25 Nm

Exhaust manifold heat shield retaining bolts 3 Nm (27 inch lbs.)
Exhaust manifold heat shield retaining bolt to cylinder head 50 Nm (37 ft. lbs.)
Intake manifold assembly retaining bolts 22 Nm (16 ft. lbs.)
Intake camshaft sprocket retaining bolt 120 Nm (89 ft. lbs.)
Intake manifold bolts 22Nm
