Differential Axle Housing: Service and Repair


Axle Housing Bushing

Special Service tools





Forcing screw remover and installer 204-274





Forcing screw remover and installer 204-274





Bearing kit JAG-061





Receiving Cup and mount plate 205-534





Remover Front Mount Bush 205-533





Installer front mount bush 204-245





Installer Front Mount Bush 204-243

Removal
1. Remove the axle assembly.

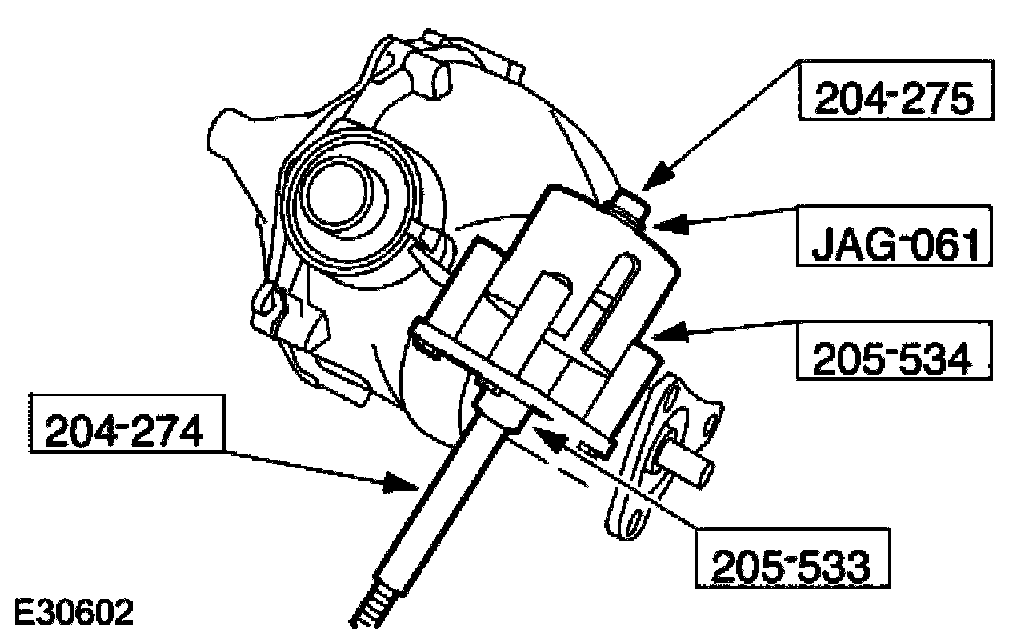

2. Using the special tools, remove the axle housing bushing.

Installation





1. The bushing should be installed with the raised molding at 45 degrees to the centre line of the pinion shaft.





2. Using the special tools, install the axle housing bushing.
3. Install the axle assembly.
