Flywheel: Service and Repair

Flywheel
Removal
1. Remove the clutch disc and pressure plate.





2. Detach the accessory drivebelt.

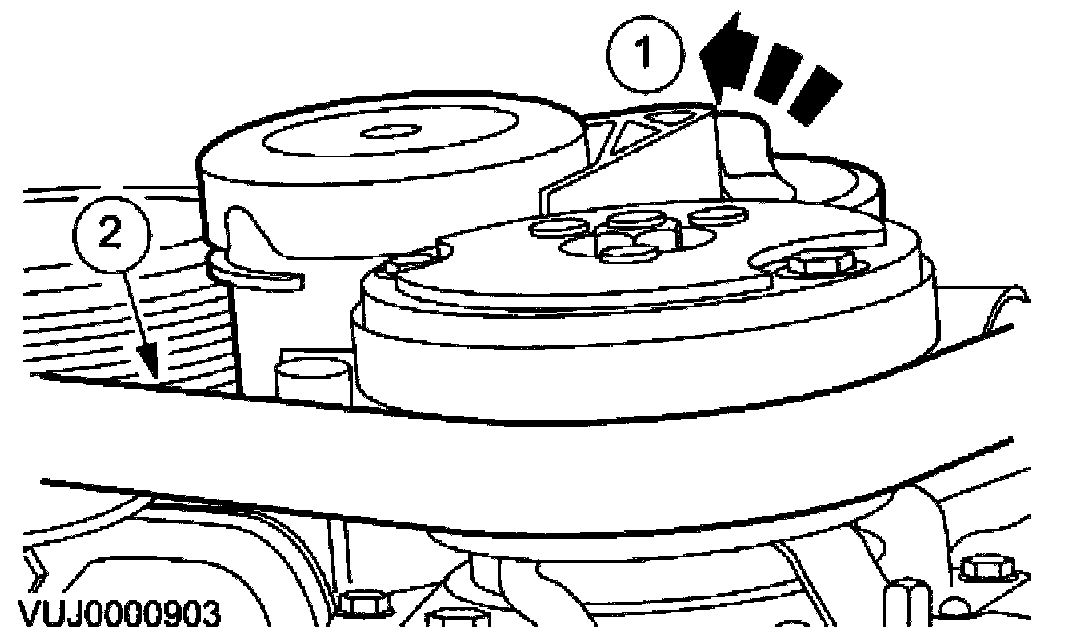

1. Rotate the belt tensioner counter-clockwise.
^ Use a 3/8 inch square drive bar to rotate the belt tensioner.

2. Detach the accessory drivebelt.

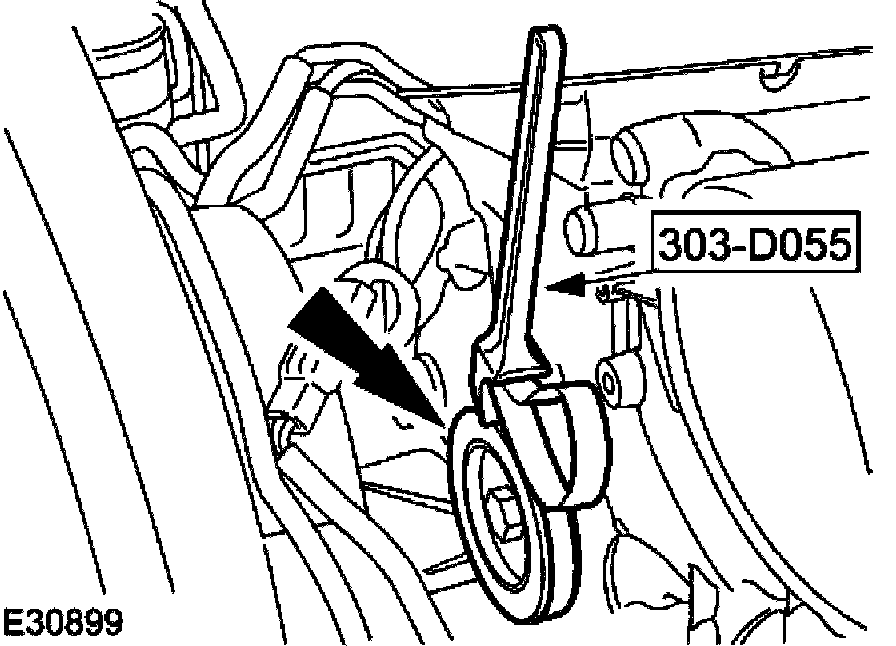

3. Install the special tool.





4. NOTE: Prevent the flywheel from rotating.

Remove the flywheel.

Installation

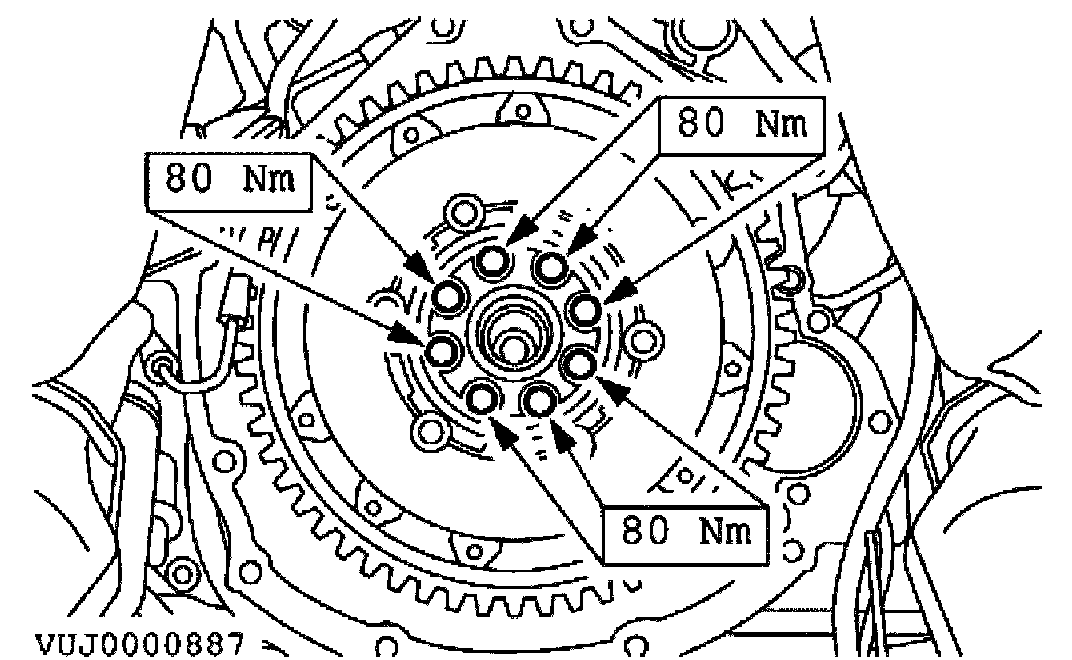

1. NOTE: Make sure the crankshaft and flywheel mating faces are clean before installation.

NOTE: The flywheel will only locate in one position.

NOTE: Tighten the retaining bolts working diagonally.

Install the flywheel.
^ Prevent the flywheel from rotating.

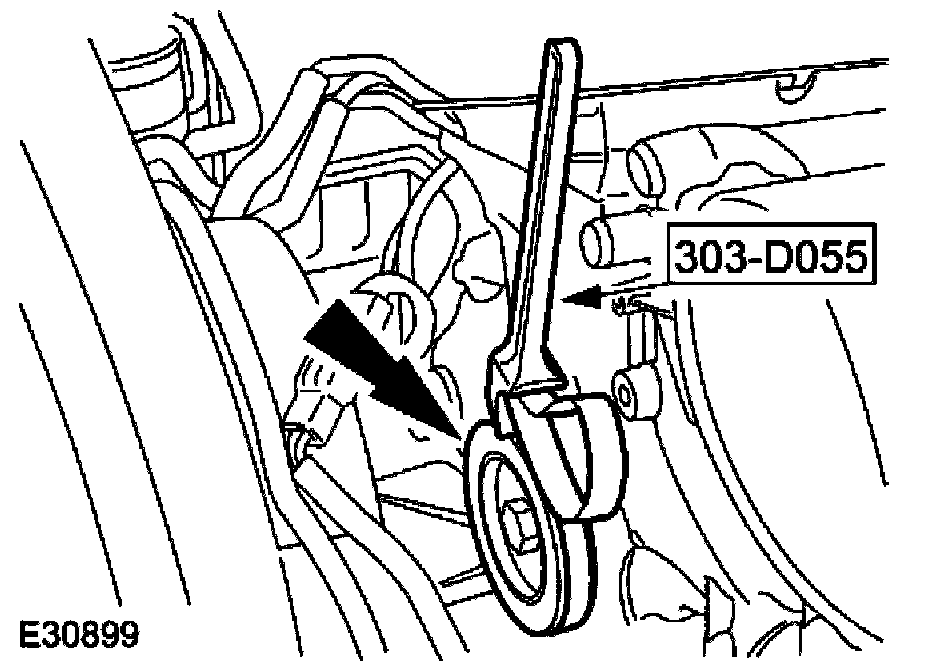

2. Remove the special tool.





3. Attach the accessory drivebelt.

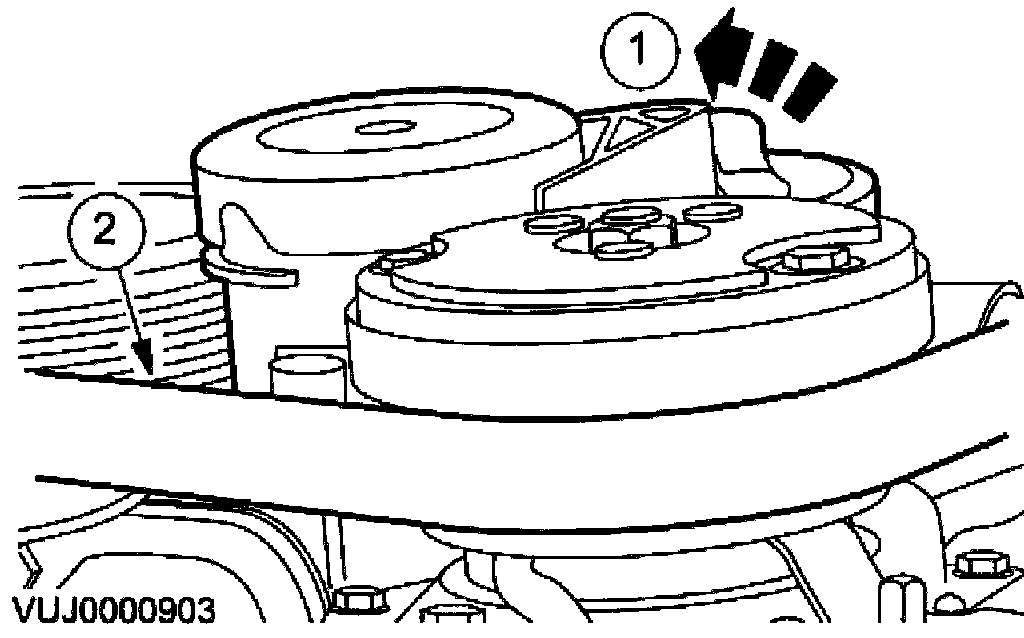

1. Rotate the belt tensioner counter-clockwise.
^ Use a 3/8 inch square drive bar to rotate the belt tensioner.

2. Attach the accessory drivebelt.
4. Install the clutch disc and pressure plate.
