Windshield Washer Reservoir: Service and Repair

Windshield Washer Reservoir

Removal
1. Remove the radiator splash shield.
2. Remove the front fender splash shield.

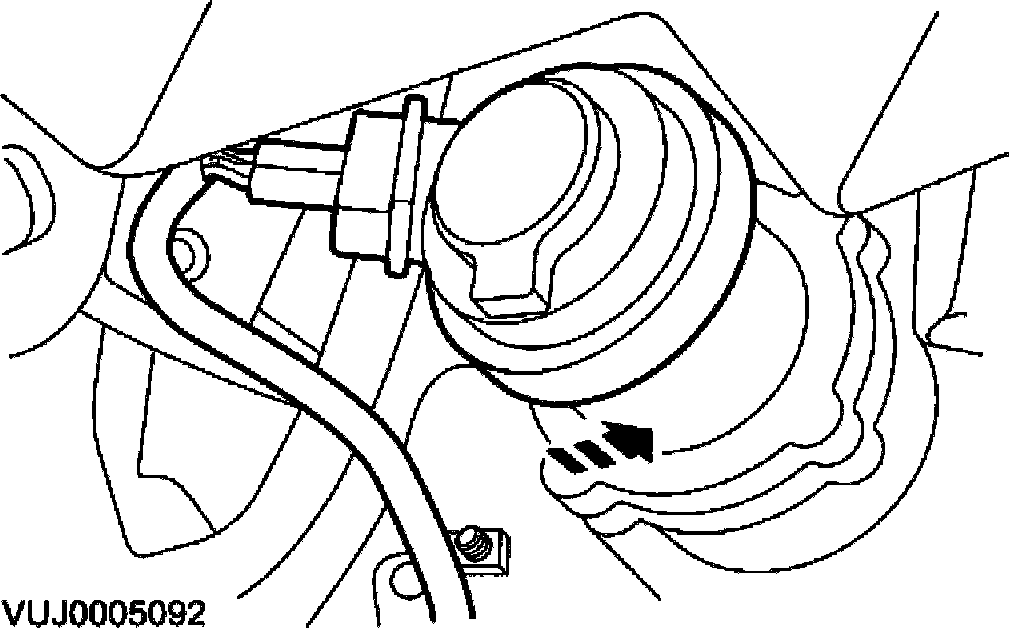

3. Detach the washer fluid warning indicator electrical connector.







4. Disconnect the windshield washer pump supply hose.







5. Disconnect the windshield washer pump electrical connector.







6. Disconnect the headlamp washer pump supply hose.
1. Remove the headlamp washer pump supply hose retaining clip.
2. Disconnect the headlamp washer pump supply hose.







7. Disconnect the headlamp washer pump electrical connector.







8. Detach the fog lamp cover.

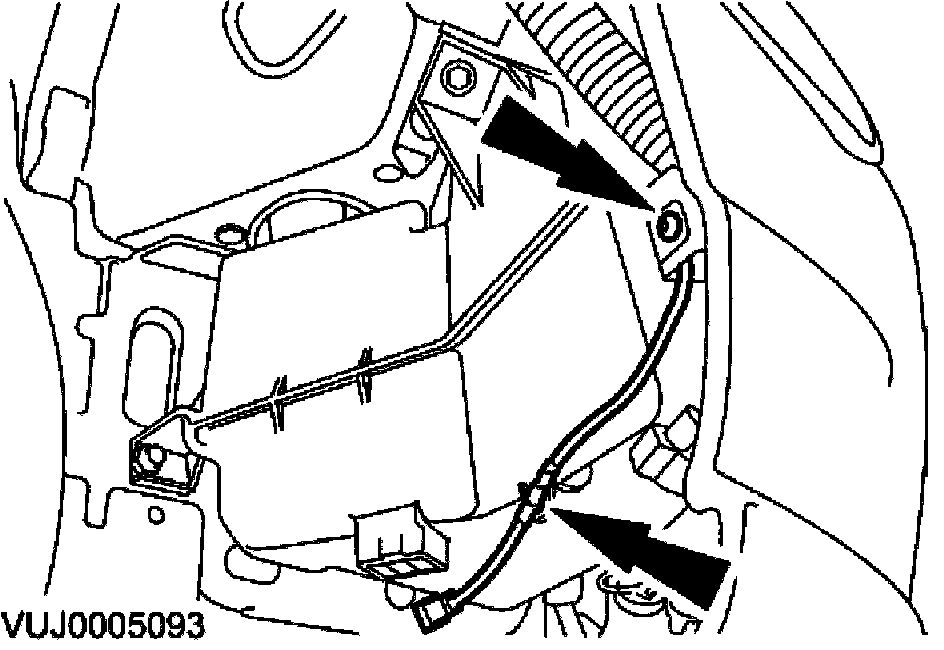

9. Detach the wiring harness.

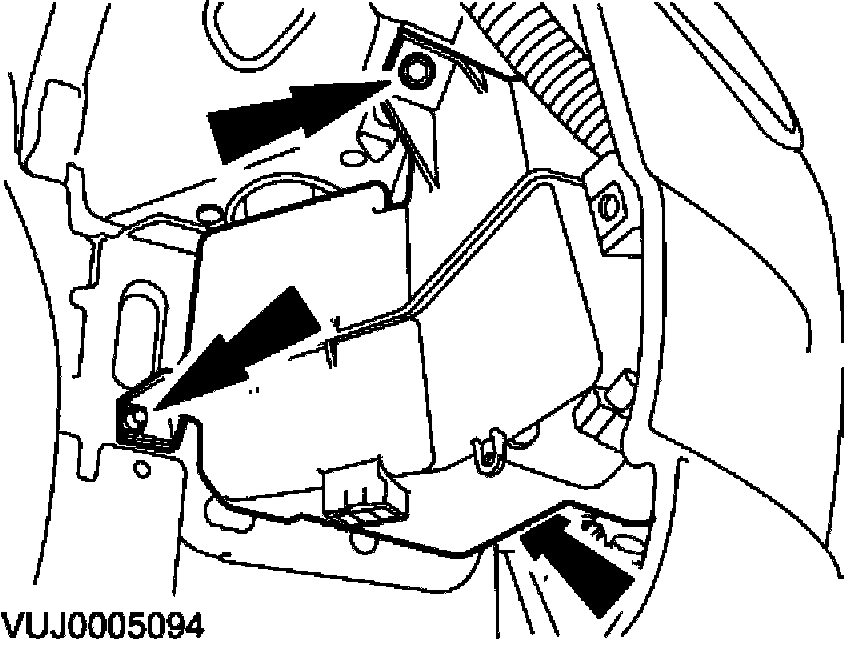

10. Remove the windshield washer reservoir.

Installation
1. To install, reverse the removal procedure.
