Vehicle Identification

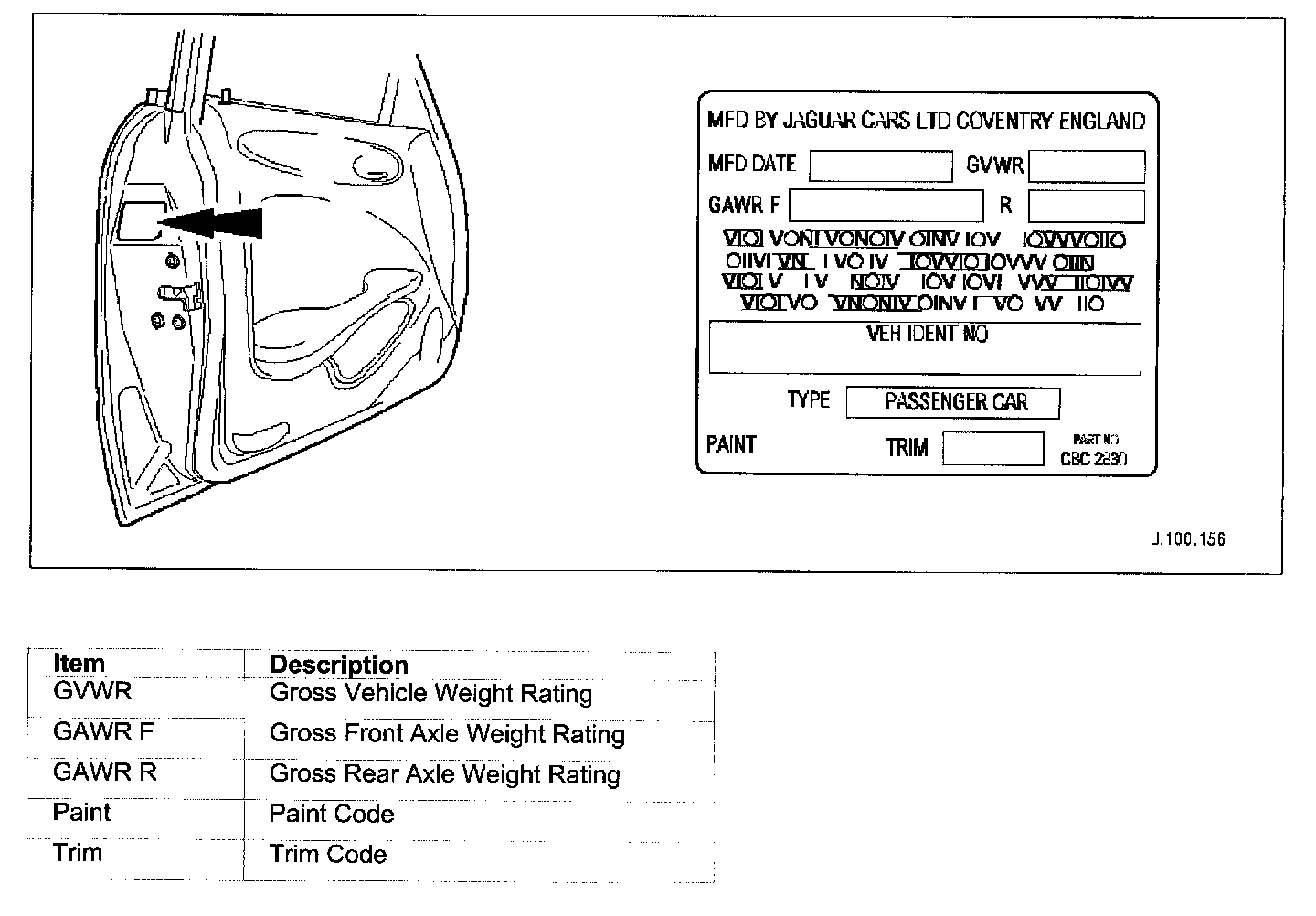

Dependent upon market, the VIN and other information is displayed on a label located either on the rear edge of the LH front door or on the body front upper crossmember. For certain markets, the VIN appears on a bar code label referred to as the Certification Label and additionally carries the month and year of manufacture, vehicle weight data and paint and trim codes. The VIN is also displayed on a plate visible through the windshield. It is essential that the vehicle identification number (VIN) is quoted when ordering parts, and in all associated correspondence.
