Body Control Module: Service and Repair

Removal
1. Switch ON ignition. Move passenger seat fully rearwards. Switch OFF ignition.

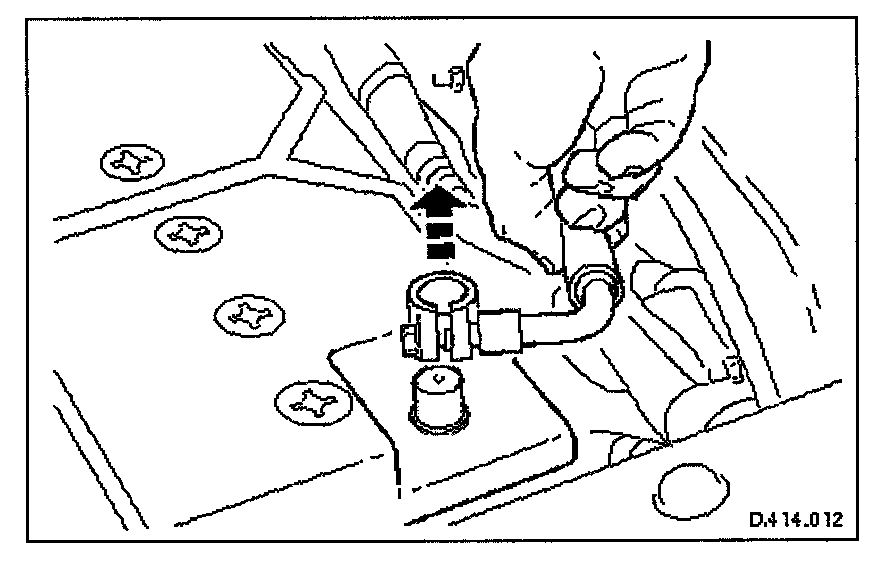

2. Disconnect battery ground cable.
3. Remove glove box.

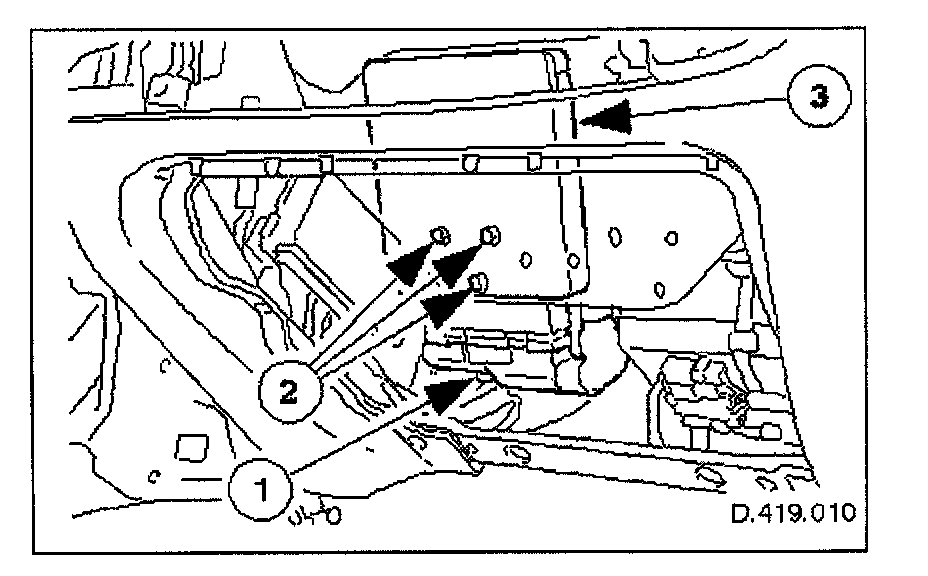

4. Remove body processor module.
1. Release bolt and disconnect harness connector.
2. Remove three nuts which secure module to fascia.
3. Remove module.

Installation
1. Installation is reverse of removal.
2. Reconnect battery ground cable.
3. Synchronize ECM, KTM, BPM using PDU.
