Driver Side



Blower Assembly - Driver Side

Removal
1. Remove upper steering column. Removal and Replacement






2. Remove driver stowage compartment.
- Remove screw.
- Remove compartment.







3. Remove driver footwell duct.
- Remove screw.
- Remove duct.







4. Remove cable tie.







5. Remove duct connecting blower assembly to heater/cooler unit.

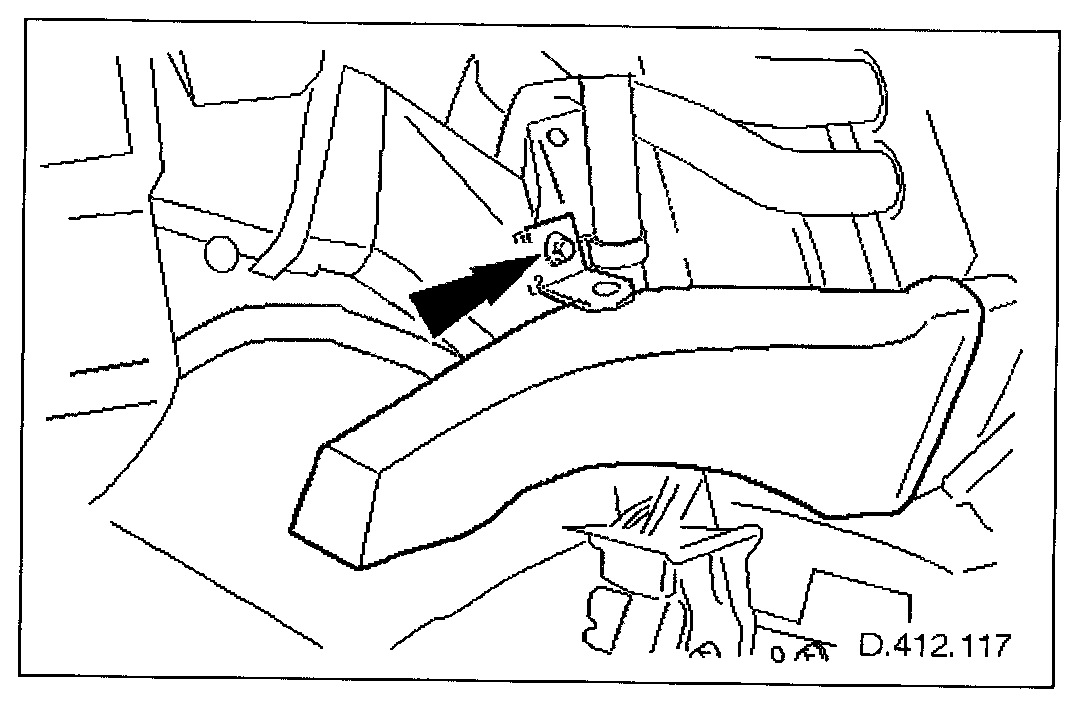

- Remove screws.
- Remove duct.







6. Disconnect harness connector from blower assembly.
1. Detach connector from mounting.
2. Disconnect connector.
3. Discard cable ties.







7. Remove blower assembly.
1. Slacken nut.
2. Slacken bolt ('A' post side), remove remaining bolt.
- Remove blower.

Installation
1. Installation is a reversal of the removal procedure.







2. Tighten nuts to specification.
1. 5-7 Nm.
2. 5-7 Nm.
