Evaporator Temperature Sensor / Switch: Service and Repair



Temperature Sensor - Evaporator

Removal
1. Remove heater matrix for access; Service and Repair

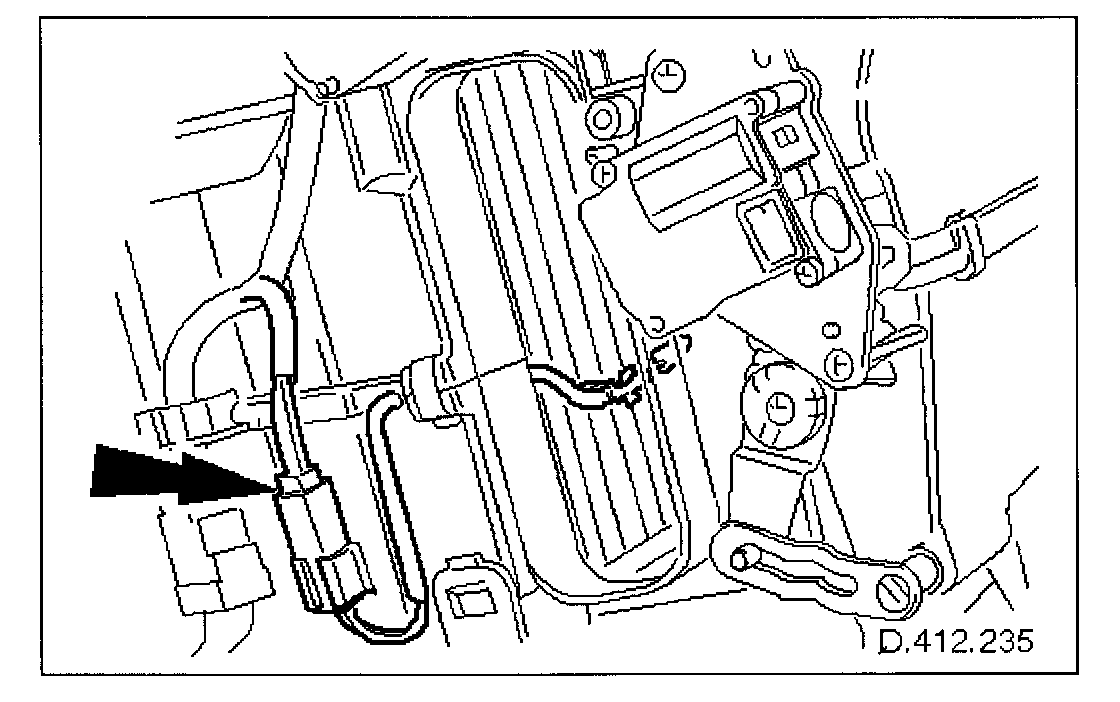

2. Detach sensor connector from heater/cooler assembly.
- Disconnect connector.

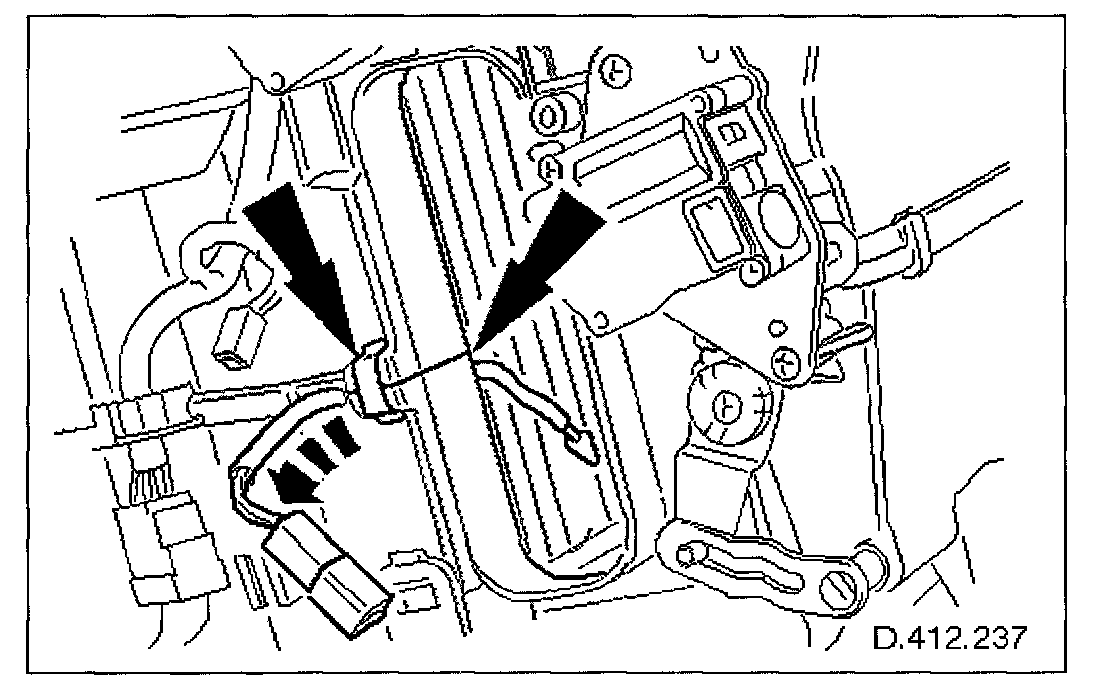

3. Detach clip and sensor from evaporator.
- Remove clip.

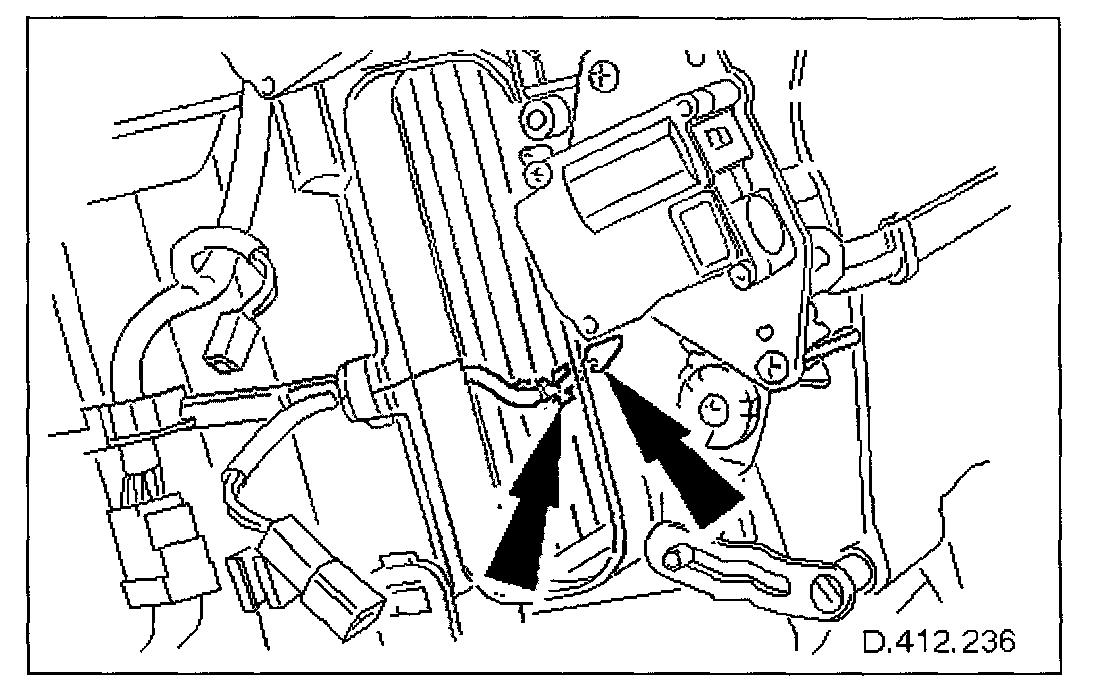

4. Remove sensor from heater/cooler assembly.
- Remove clip.
- Lever case apart sufficient enough to withdraw sensor through aperture.

Installation
1. Installation is a reversal of the removal procedure.
