Air Distribution Box



Air Distribution Box

Removal
1. Remove instrument panel for access.







2. Remove rear face primary duct.
- Remove fasteners.
- Remove duct.







3. Remove right and left hand air distribution box ducts from instrument panel.
- Remove screws.
- Remove ducts.

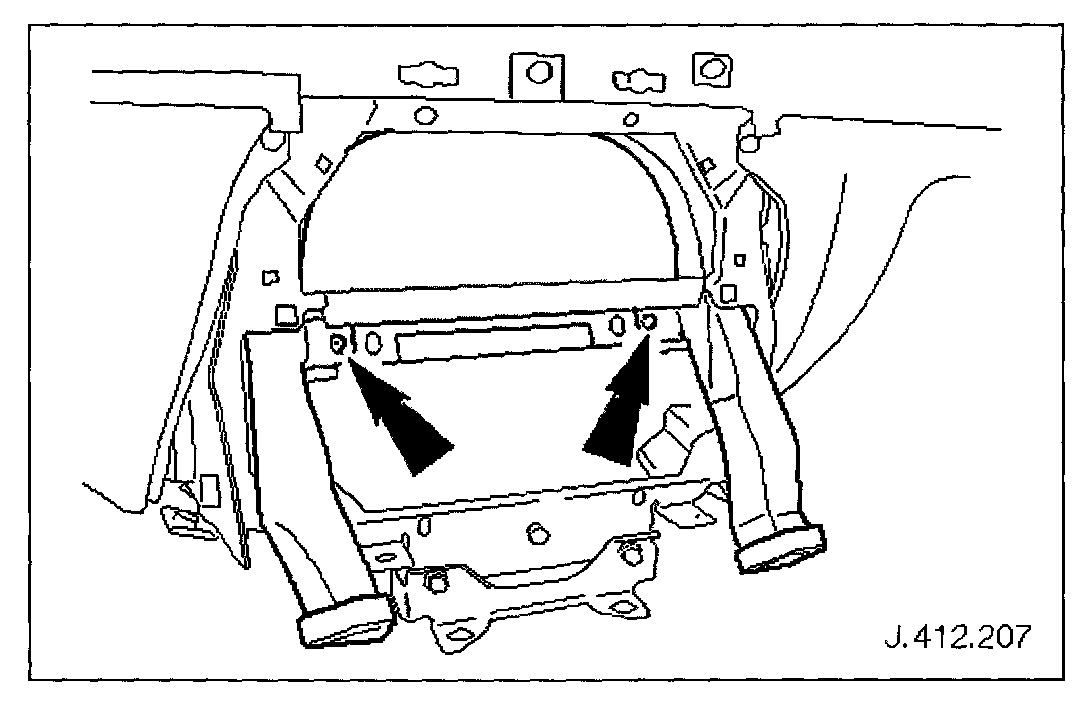

4. Remove air distribution box from instrument panel.
- Remove nuts.
- Position air distribution box for access to connector.
- Remove connector.
- Disconnect connector.
- Remove air distribution box.

5. Remove center vent servo motor Service and Repair Air Distribution and Filtering.
6. Remove defog vent servo motor Service and Repair Air Distribution and Filtering.

Installation
1. Installation is a reversal of the removal procedure.
