Refrigerant Pressure Sensor / Switch: Service and Repair

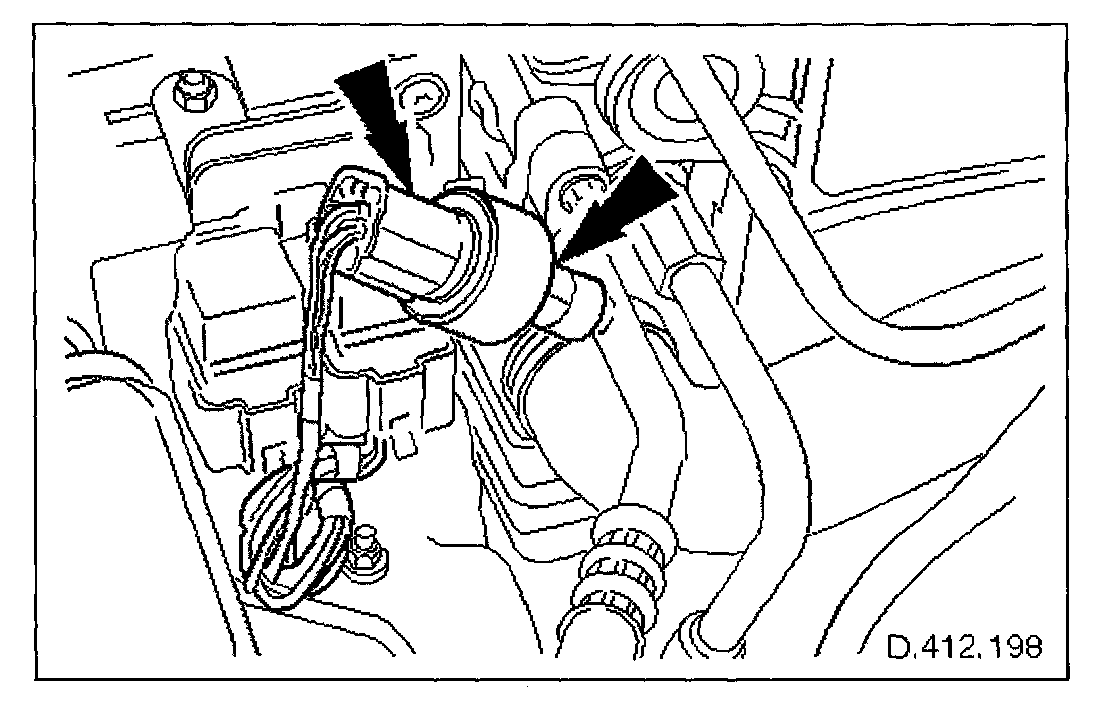

Pressure SwitchRemoval 1.
Remove pressure switch.
-
Disconnect connector.
NOTE: Discard O-ring seal.
-
Remove switch.

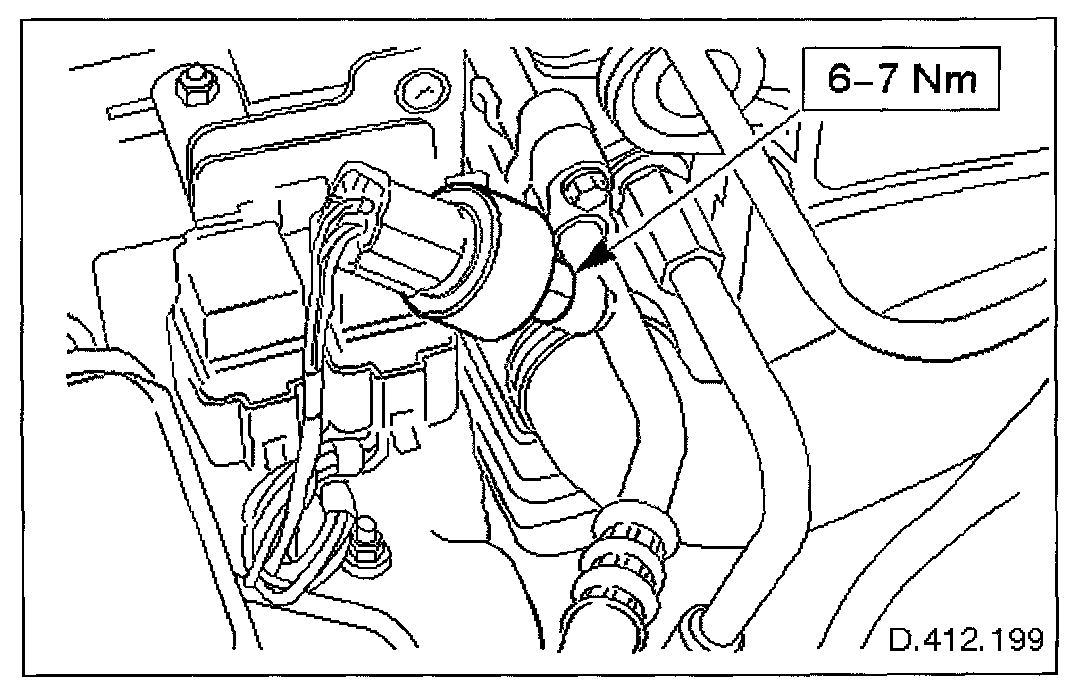

Installation 1.
NOTE: Clean mating faces, install new O-ring seal and lubricate with clean compressor oil.
Installation is a reversal of the removal procedure.
