Recover, Recycle and Recharge System

.


Recover/Reclaim


1. CAUTION: Read the procedures and instructions supplied by the manufacturer of the air conditioning service center before commencing any process requiring the handling of refrigerant. In addition to the manufacturers information, observe all safety precautions and advice detailed in this section.


Disconnect battery ground lead.

2. Remove passenger side firewall cover.
3. Remove driver side firewall cover.
4. Remove engine compartment rear cover.

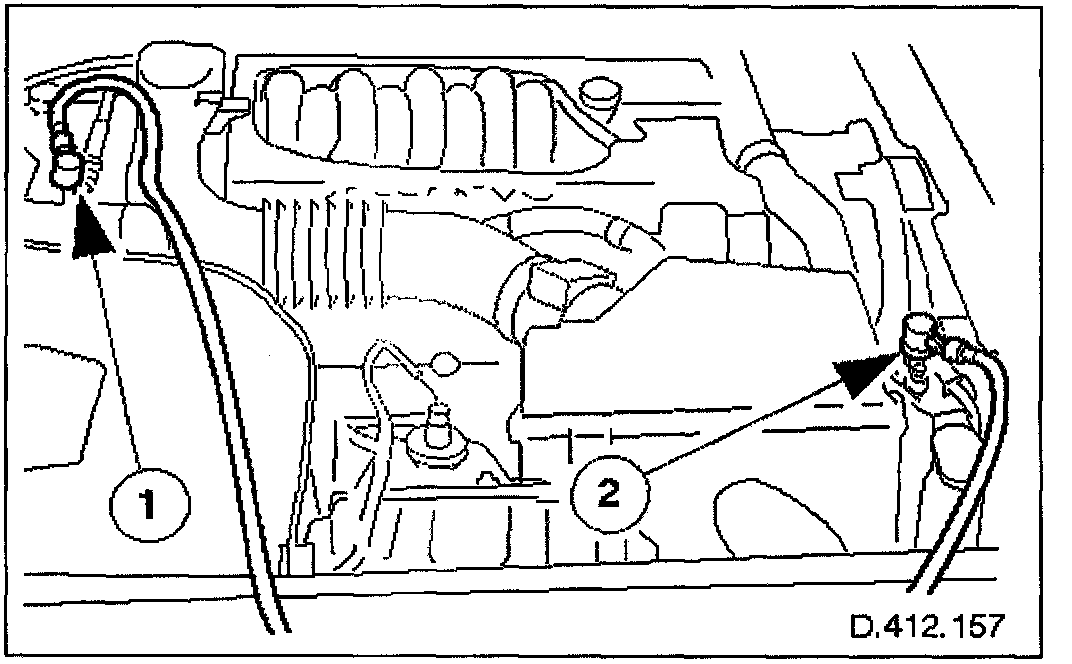

5. Remove vehicle charge port protective caps and connect equipment pressure hoses to vehicle.
1. BLUE hose = low pressure.
2. RED hose = high pressure.
6. Complete procedure in accordance with equipment manufacturer's instructions.

Evacuation
1. Complete procedure in accordance with equipment manufacturer's instructions.
This process will typically take 30 minutes, but will depend upon the equipment and the extent of repairs carried out to the system.

Charging
1. Set the appropriate charge weight, Capacity Specifications
2. Complete procedure in accordance with equipment manufacturer's instructions.
3. Disconnect hoses from vehicle and replace charge port protective caps.
4. Reconnect battery ground lead.
5. Check system for correct operation.
