Combination Switch: Service and Repair



Flasher / Headlamp / Trip Switch

Removal

1. Disconnect battery ground cable.

2. NOTE: Steering wheel must be in the straight ahead position.

- Remove steering wheel.







3. Displace cancellation module connector from mounting bracket and disconnect.

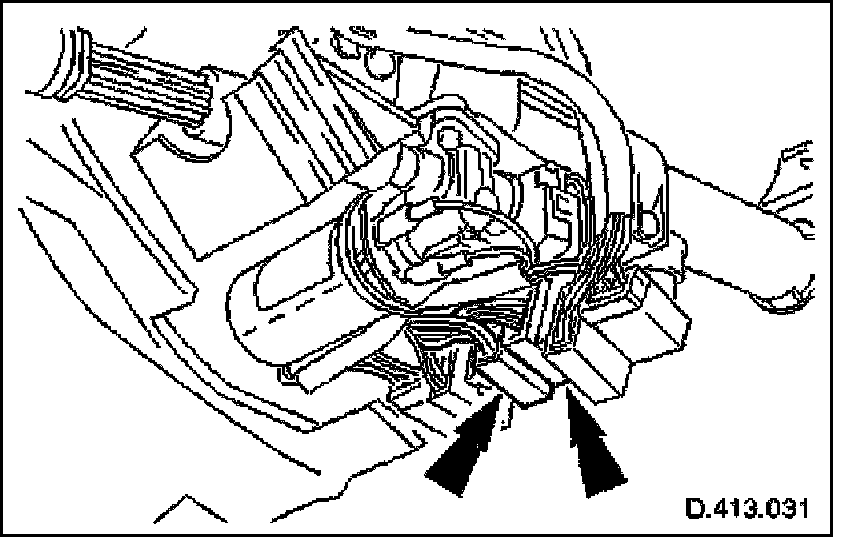

4. Displace flasher/headlamp/trip switch connectors from mounting bracket and disconnect.
- Cut and remove appropriate harness securing ties.







5. Remove switchgear.
1. Remove two screws which secure switch assembly/cancellation module to mounting bracket.
2. Displace switchgear from mounting bracket.
3. Route switchgear harness through mounting bracket and remove switchgear.

Installation

1. Installation is reverse of removal.
