Fuse Block: Description and Operation

Fuse Boxes And Relays (LH Steering):

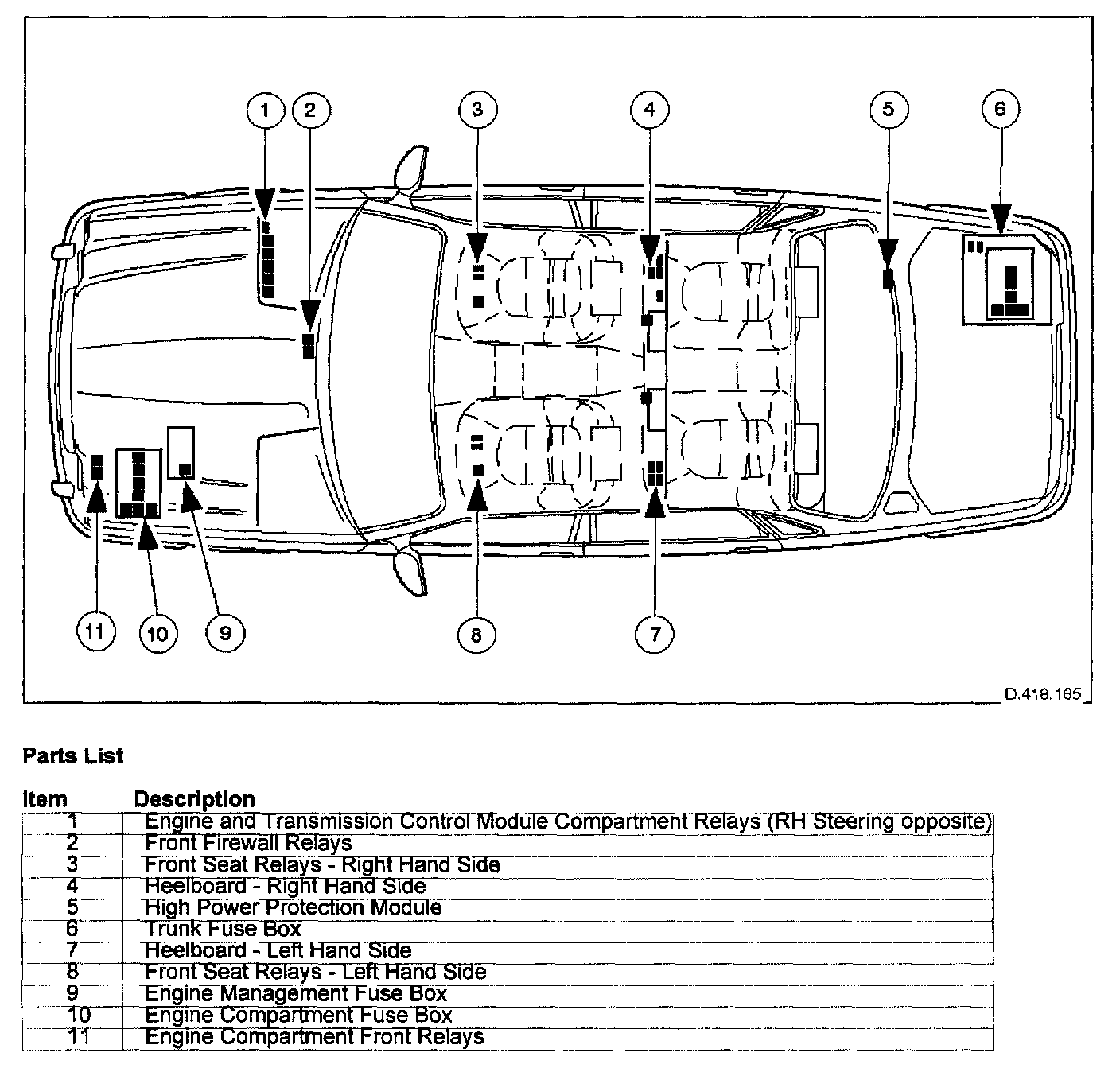

There are six fuse box assemblies per vehicle, five of which have conventional, replaceable fuses. The High Power Protection Module does not have conventional fuses, it comprises three 250 Amp fusible links to protect the starting circuit (two connected in parallel) and the battery positive supply to the other fuse boxes.

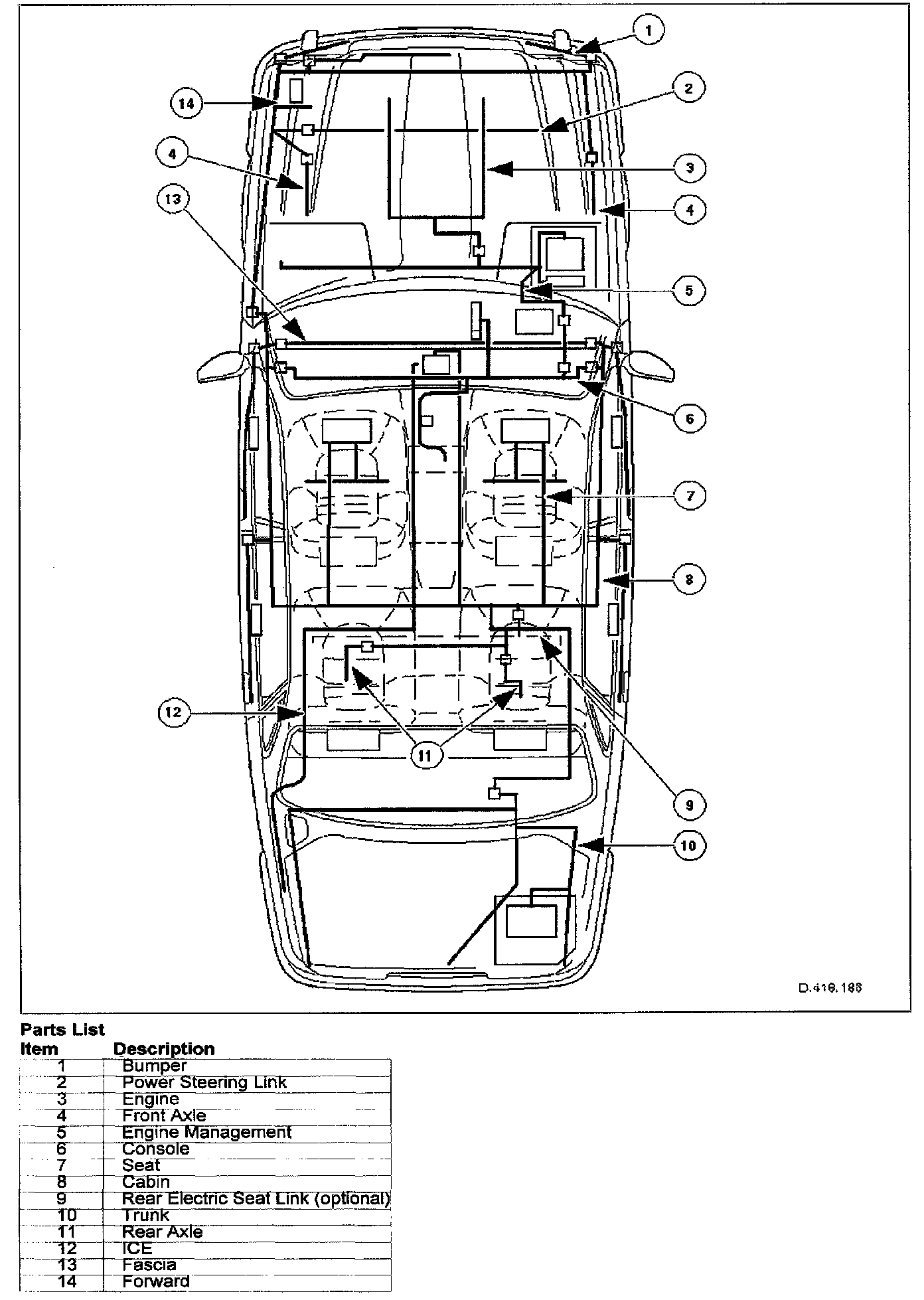

Wiring Harnesses:

Location of J1962 socket
The J1962 socket is located at the driver side inboard footwell.

Fuse Box Details Application and ID

Relay Details Application and ID
