Engine Compartment Fuse Box



Removal





1. Disconnect battery ground cable. Service and Repair
2. Open bonnet and fit body paintwork protection sheets.





3. Remove positive supply power cable.

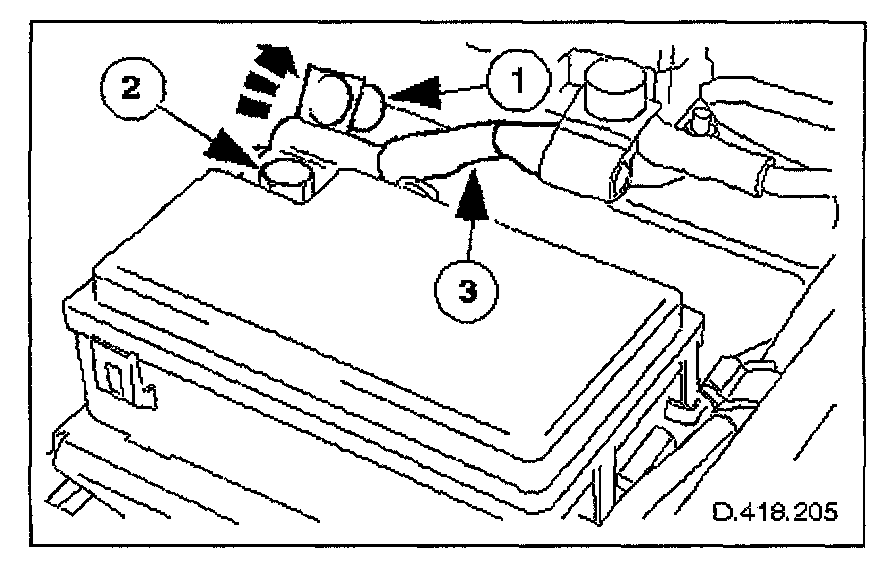

1. Displace cover.
2. Remove nut.
3. Disconnect cable.





4. Remove fuse box from mounting panel.

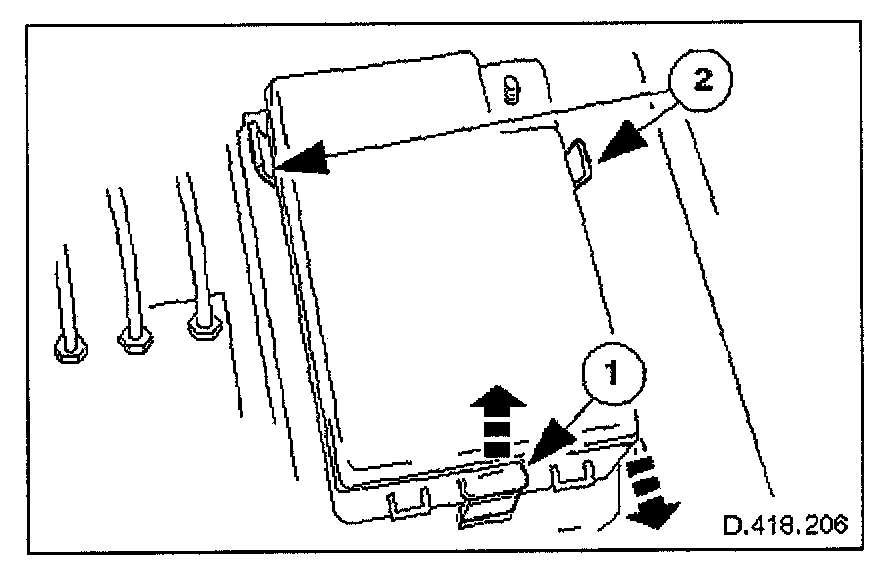

1. Release securing latch, upwards, displace fuse box outwards and remove from mounting panel.
2. Release securing tangs and remove cover.





5. Remove fuse box.

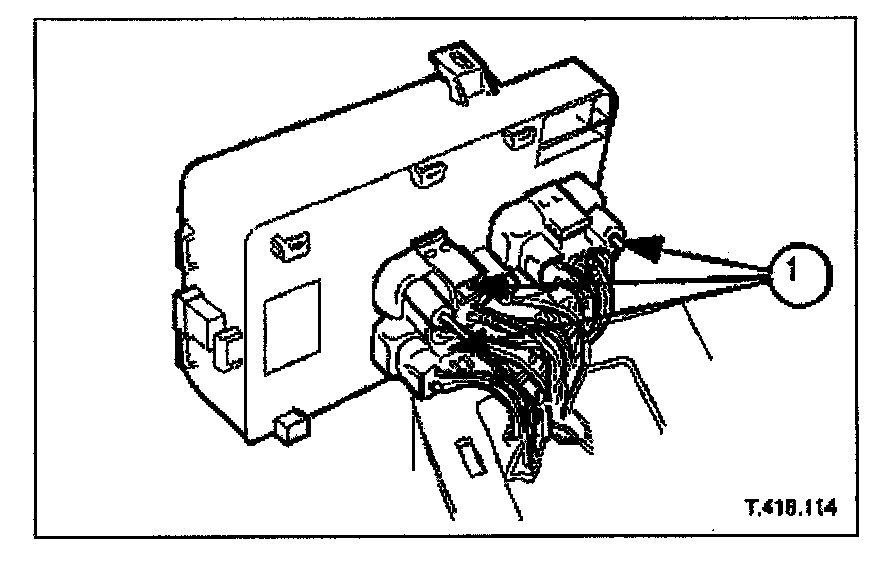

1. Identify and disconnect harness connectors.

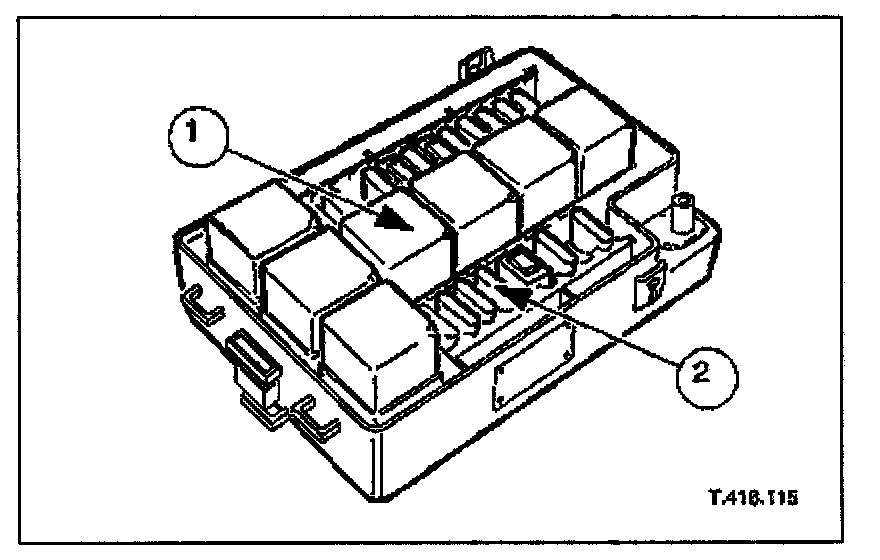

6. Remove fuses and relays.
1. Note position of each relay and remove them.
2. Identify each fuse and remove them.
3. The value and position of each fuse is illustrated on the lid of the trunk compartment fuse box - for all fuse boxes on the vehicle.


Installation
1. Installation is reverse of removal.
2. Reconnect battery ground cable. Service and Repair
