Engine Management Fuse Box



Removal





1. Disconnect battery ground cable. Service and Repair
2. Open bonnet and fit body paintwork protection sheets.

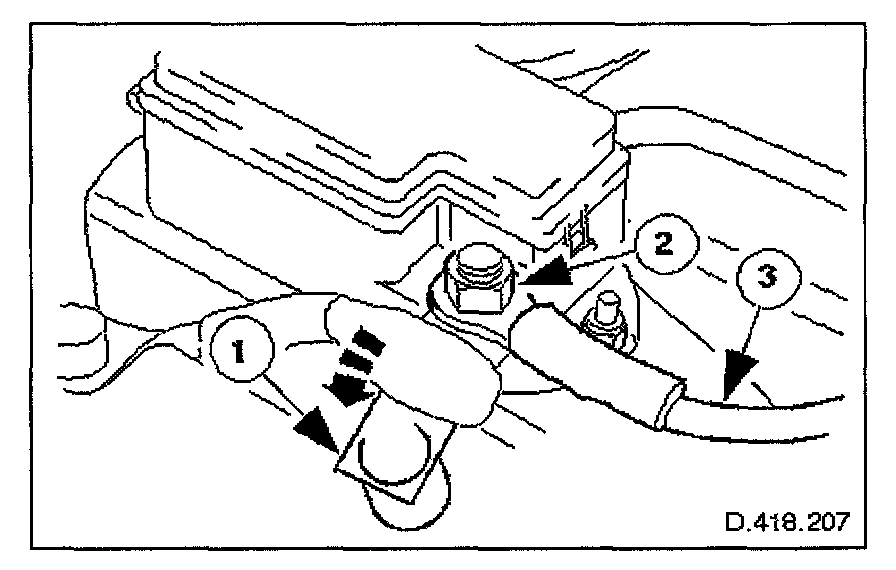

3. Remove positive supply power cable.
1. Displace cover.
2. Remove nut.
3. Disconnect cable.

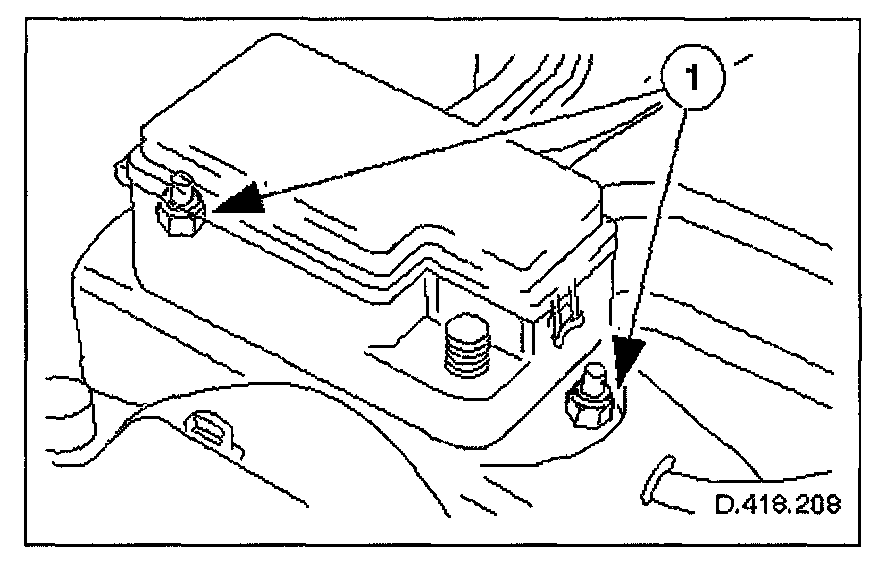

4. Remove fuse box from mounting panel.
1. Remove nuts.
- Reposition fuse box for access to connectors.

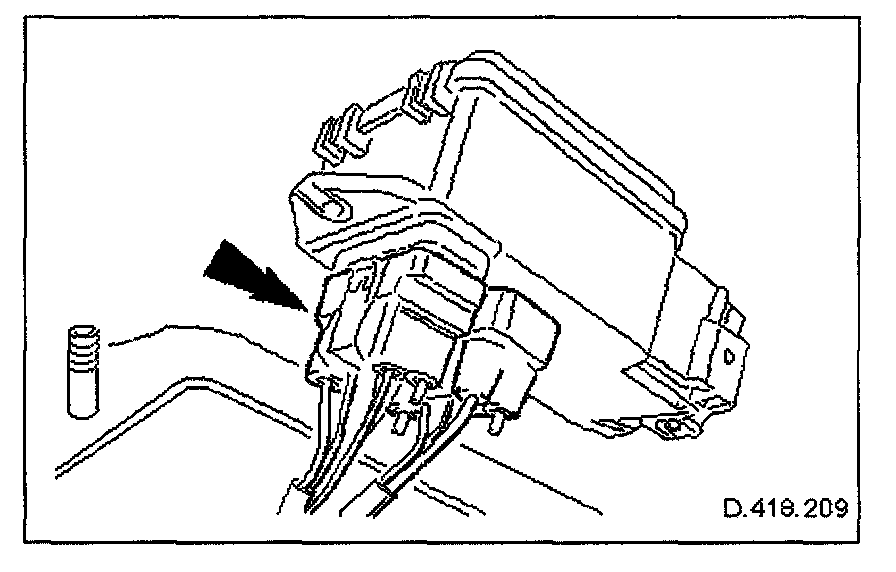

5. Remove fuse box.
Identify and disconnect harness connectors.

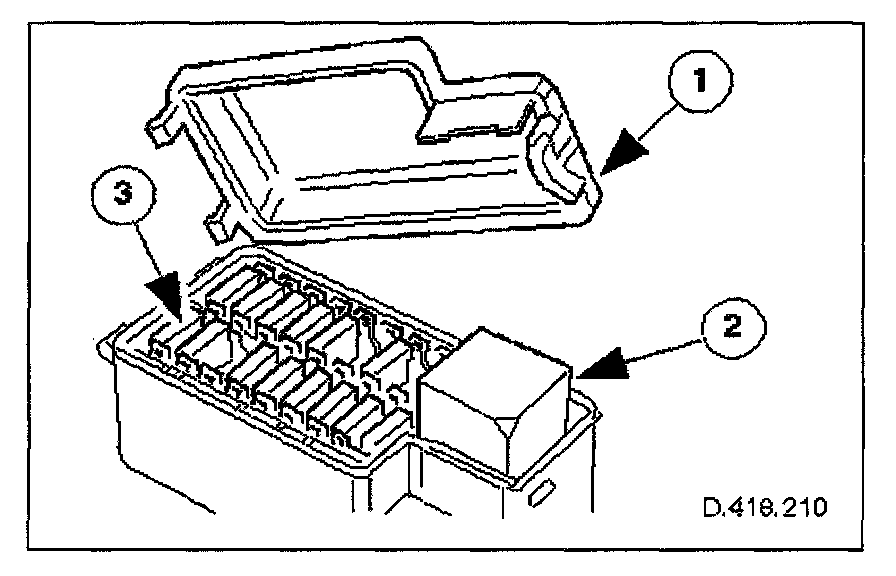

6. Remove fuses and relay.
1. Release securing tangs and remove cover.
2. Remove relay.
3. Identify each fuse and remove them.
- The value and position of each fuse is illustrated on the lid of the trunk compartment fuse box - for all fuse boxes on the vehicle.


Installation
1. Installation is reverse of removal.
2. Reconnect battery ground cable. Service and Repair
