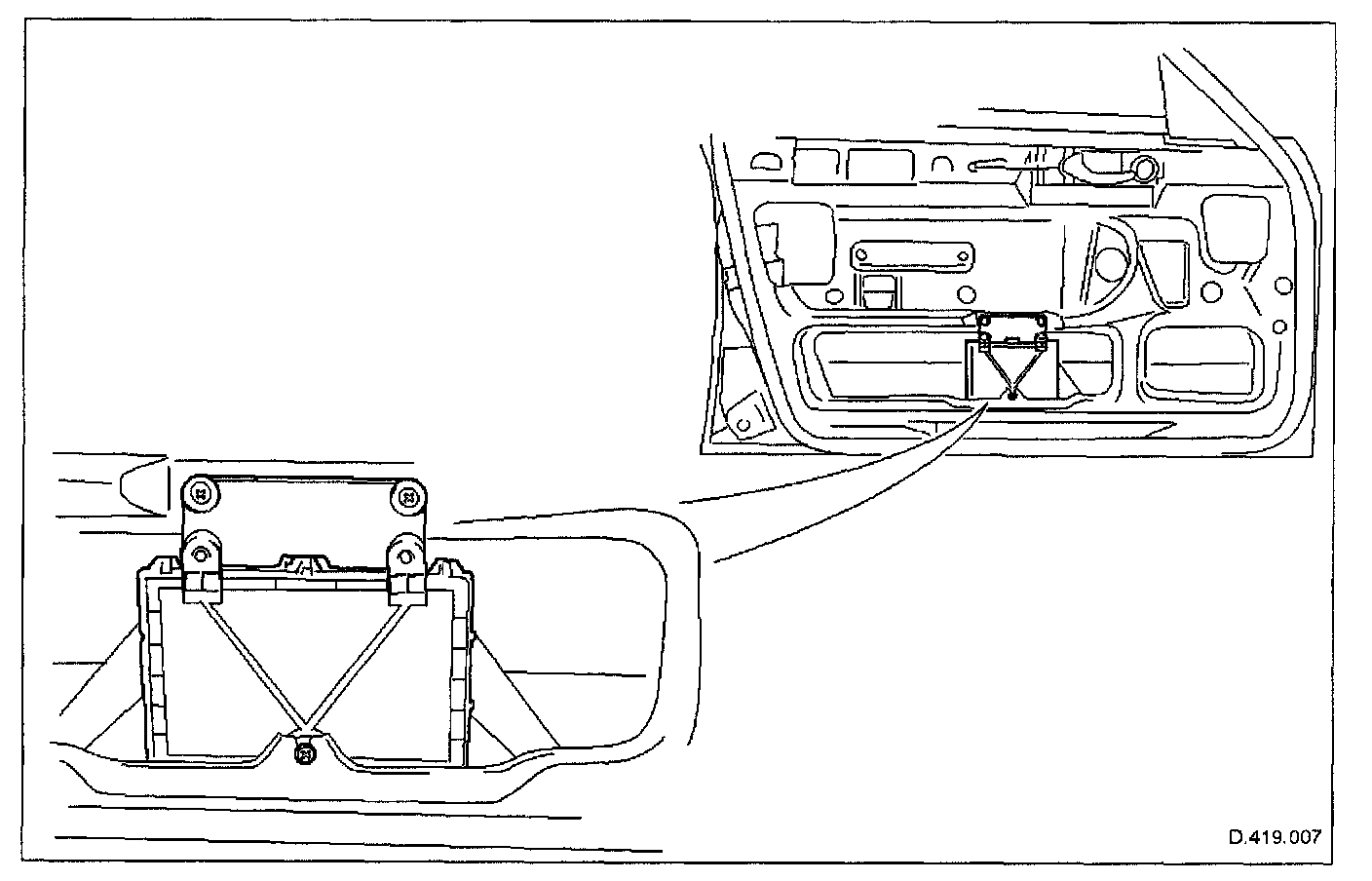

Driver Door Module (DDM)

Driver Door Module (DDM):

The DDM is an integral part of the vehicle security system. In conjunction with the BPM and SLCM via the SCP network, it controls door locking, interior lighting, door window position and door mirror position. The DDM also provides an interface via the SCP network, between the driver door switchpack and all door control modules which permits remote control of all door window positions.

The following table is published for guidance purposes only; for fault finding, always use the PDU.

Inputs/outputs

DDM Inputs from: DDM outputs to:
Driver door switch Driver door window lift motor

Driver door switchpack
(window switches) Driver rear door window lift motor via SCP

Driver door switch pack
(mirror switches) Passenger door window lift motor via SCP

Driver door switchpack
(memory switches) Passenger rear door window lift motor via SCP

Driver door mirror motors

Passenger door mirror motors via SCP

Driver seat module via SCP
