Axle Nut

FRONT

Torque Specifications

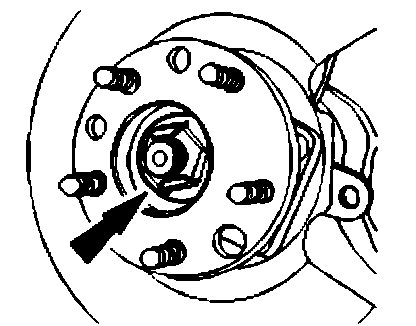

Wheel hub retaining nut 270 Nm (200 ft. lbs.)

REAR

Torque Specifications

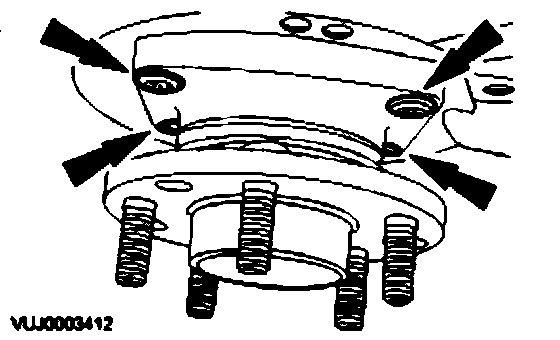

Wheel hub to wheel knuckle retaining bolts 63 Nm (46 ft. lbs.)





Rear halfshaft to wheel hub retaining nut 270 Nm (200 ft. lbs.)
